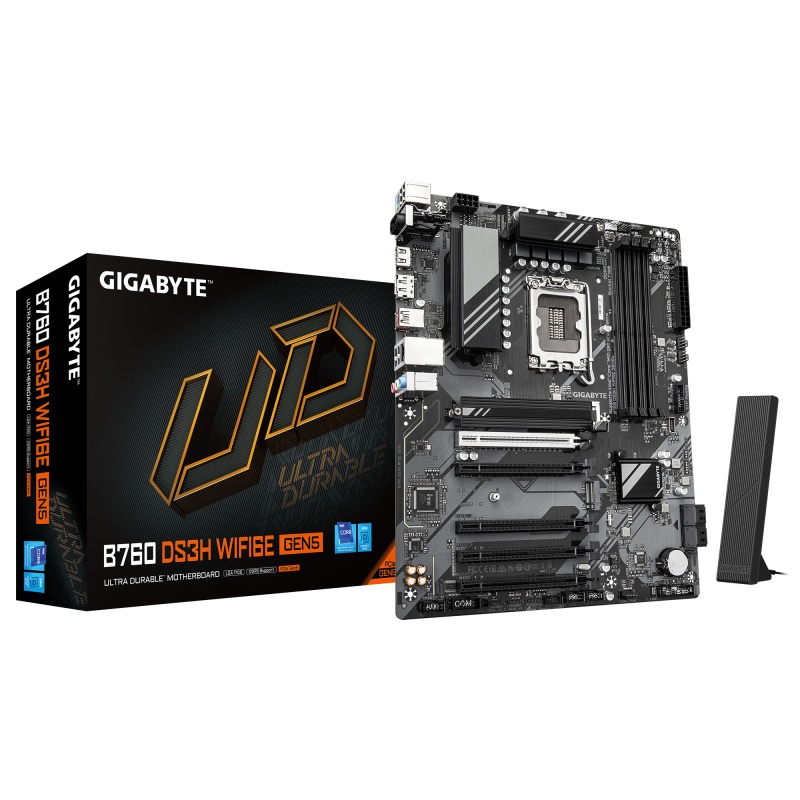

Placa de baza Gigabyte B760 DS3H WIFI6E GEN5

641,00 RON (TVA inclus)
Costurile de livrare nu sunt incluse
Cod produs - SKU B760 DS3H WF6E GEN5
EAN 4719331872939
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0773885089
Trimite-ne un mesaj

Descriere

Placa de baza Gigabyte B760 DS3H WIFI6E GEN5

Detalii

SKU
B760 DS3H WF6E GEN5
EAN
4719331872939
Categorii
Placi de baza
Brand
GIGABYTE
PCI
0
PCI-Ex1
2
PCI-Ex16
1
Serial-or-Paralel
No/No
USB3
4-8
Wi-Fi
Yes
Onboard-CPU
No
Component for
PC
Bluetooth
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
Memory channels
Dual-channel
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Processor manufacturer
Intel
PCI Express x16 (Gen 5.x) slots
1
DisplayPorts quantity
2
Line-in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Headphone outputs
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 2x2 Type-C ports quantity
1
USB 2.0 ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Products per shipping (inner) case
1 pc(s)
Batteries included
Yes
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
2nd M.2 highest PCI Express generation
4.0
Motherboard form factor
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
HDCP
Yes
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
12V power connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Serial port headers
1
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
Bundled software
Norton Internet Security (OEM version) LAN bandwidth management software
Antenna included
Yes
Screws included
Yes
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Warranty period
3 year(s)
DVI-D ports quantity
0
WiFi-AP antenna jack
2
Microphone in
Yes
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
RAID support
Yes
Width
305 mm
Depth
244 mm
Height
35 mm
RAM-Slots
4
BIOS memory size
128 Mbit
Product colour
Dark brown
Cooling type
Passive
Number of M.2 (M) slots
2
1st M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
2280
Motherboard chipset family
Intel
USB 2.0 connectors
2
S/PDIF out connector
Yes
ECC сompatibility
ECC & Non-ECC
DisplayPort version
1.2
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
Number of storage drives supported
6
RAID levels
0, 1, 5, 10
MB-Socket
1700
MB-Format
micro-ATX
PS/2 ports quantity
1
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
1st M.2 largest key size
22110
Number of chassis fan connectors
4
PCI Express x16 (Gen 3.x) slots
4
Motherboard chipset
Intel B760 Express
Maximum resolution
4096 x 2304 pixels
Supported memory clock speed (max)
5600 MHz
WLAN controller model
Intel Wi-Fi 6E AX210
Package weight
15.5 kg
Weight
1.31 kg
Supported memory clock speeds
5600,5200,4800,4400 MHz
