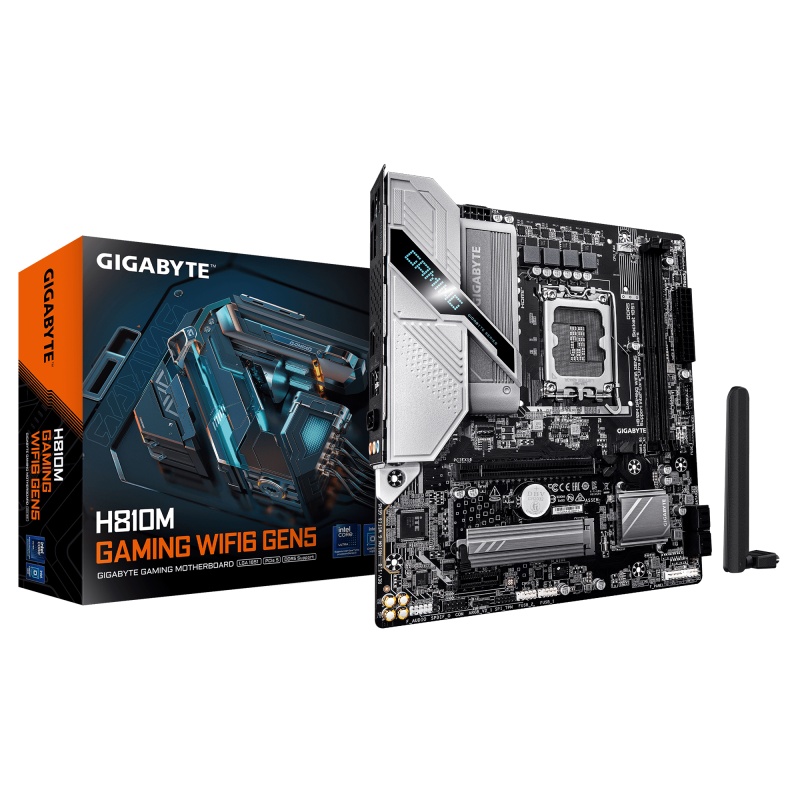

Placa de baza Gigabyte H810M G WIFI6 GEN5

661,00 RON (TVA inclus)
Costurile de livrare nu sunt incluse
Cod produs - SKU H810M G WIFI6 GEN5
EAN 4719331880002
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0773885089
Trimite-ne un mesaj

Descriere

Placa de baza Gigabyte H810M G WIFI6 GEN5

Detalii

SKU
H810M G WIFI6 GEN5
EAN
4719331880002
Categorii
Placi de baza
Brand
GIGABYTE
Wi-Fi
Yes
Component for
PC
Bluetooth
Yes
Depth
215 mm
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Maximum internal memory
128 GB
Memory channels
Dual-channel
Ethernet LAN
Yes
Bluetooth version
5.4
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Processor manufacturer
Intel
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
Country of origin
China
PCI Express x16 (Gen 5.x) slots
1
Line-in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
DisplayPort version
2.1
Headphone outputs
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
DisplayPorts quantity
1
PCI Express x1 (Gen 3.x) slots
1
Products per shipping (inner) case
1 pc(s)
Batteries included
Yes
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
HDCP
Yes
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Serial port headers
1
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
WLAN controller model
Realtek RTL8851BE
Antenna included
Yes
Screws included
Yes
Warranty period
3 year(s)
DVI-D ports quantity
0
WiFi-AP antenna jack
2
Microphone in
Yes
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Height
35 mm
Product colour
Dark brown
Cooling type
Passive
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
2280
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
USB 2.0 connectors
2
Number of chassis fan connectors
2
Number of CPU fan connectors
1
S/PDIF out connector
Yes
Number of memory slots
2
ECC сompatibility
ECC & Non-ECC
Number of M.2 (M) slots
1
Motherboard chipset
Intel H810
Number of RGB LED pin headers
2
Supported memory clock speed (max)
6400 MHz
Supported memory clock speeds
5600,6400 MHz
Processor socket
LGA 1851 (Socket V1)
Supported processor sockets
LGA 1851
Compatible processor series
Intel Core Ultra (Series 2)
PS/2 ports quantity
1
USB 2.0 ports quantity
5
Number of storage drives supported
5
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
Width
244 mm
Ethernet interface type
2.5 Gigabit Ethernet
Weight
1.05 kg
Package height
68 mm
HDCP version
2.3
Package depth
268 mm
Package width
270 mm
LAN controller
Realtek RTL8125
Package weight
1.14 kg
Battery capacity
220 mAh
Bundled software
NortonInternet Security (OEM version)
