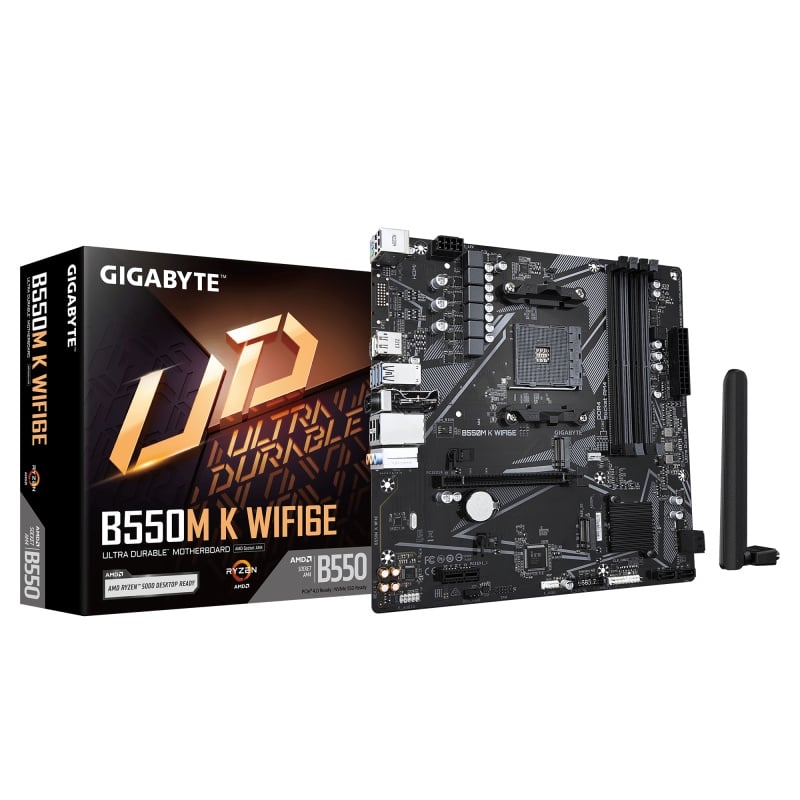

Placa de baza Gigabyte B550M K WIFI6E
606,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de baza Gigabyte B550M K WIFI6E
Detalii
SKU
B550M K WF6E
EAN
4719331880811
Categorii
Brand
Wi-Fi
Yes
Component for
PC
Bluetooth
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
Maximum internal memory
128 GB
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Processor manufacturer
AMD
Country of origin
China
Line-in
Yes
DisplayPort version
1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Headphone outputs
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
DisplayPorts quantity
1
PCI Express x16 (Gen 4.x) slots
1
PCI Express x1 (Gen 3.x) slots
1
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Products per shipping (inner) case
1 pc(s)
Batteries included
Yes
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Power source type
ATX
Motherboard chipset family
AMD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
HDCP
Yes
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
TPM connector
Yes
12V power connector
Yes
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
LAN controller
Realtek RTL8111H
Antenna included
Yes
Screws included
Yes
Warranty period
3 year(s)
DVI-D ports quantity
0
WiFi-AP antenna jack
2
Microphone in
Yes
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
RAID support
Yes
RAID levels
0, 1, 10
Depth
244 mm
Height
35 mm
BIOS memory size
128 Mbit
Product colour
Dark brown
Cooling type
Passive
Number of M.2 (M) slots
2
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
2280
2nd M.2 largest key size
2280
Motherboard form factor
micro ATX
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of CPU fan connectors
1
ECC сompatibility
ECC & Non-ECC
Number of storage drives supported
6
USB 2.0 connectors
1
PS/2 ports quantity
1
Width
244 mm
2nd M.2 highest PCI Express generation
3.0
Motherboard chipset
AMD B550
Supported memory types
DDR4-SDRAM
Maximum internal memory per slot
32 GB
Processor socket
Socket AM4
Supported processor sockets
Socket AM4
Compatible processor series
AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Package height
68 mm
HDCP version
2.3
Package depth
268 mm
Package width
270 mm
Maximum resolution
5120 x 2880 pixels
PC health monitoring
Fan, Temperature, Voltage
Number of HDDs supported
2
Supported storage drive interfaces
M.2, SATA
Package weight
1.02 kg
Number of chassis fan connectors
1
Supported memory clock speed (max)
4733 MHz
Battery capacity
220 mAh
Memory channels
Dodeca-channel
Bundled software
Norton Internet Security (OEM version)
Weight
940 g
WLAN controller model
MediaTek MT7902
Supported memory clock speeds
4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
Ethernet interface type
Gigabit Ethernet, Fast Ethernet
