NOU

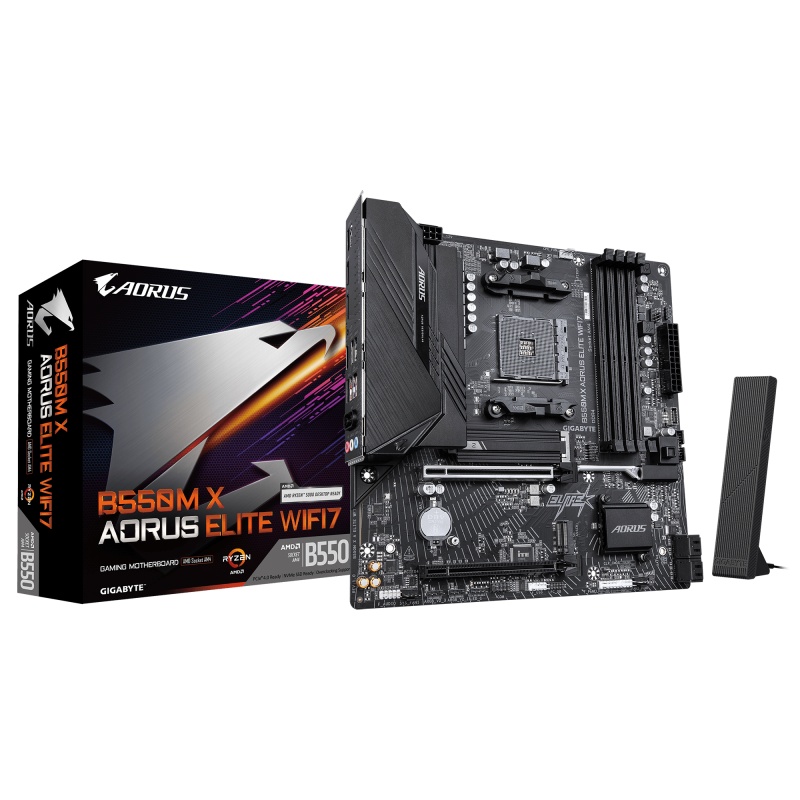

Placa de baza Gigabyte B550M X AORUS ELITE WIFI7, Socket AM4, DDR4, Micro-ATX
763,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de baza Gigabyte B550M X A ELITE WF7
Detalii
SKU
B550M X A ELITE WF7
EAN
4719331884086
Categorii
Brand
Wi-Fi
Yes
Component for
PC
Bluetooth
Yes
Maximum internal memory
128 GB
Memory channels
Dual-channel
Ethernet LAN
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Processor manufacturer
AMD
Product colour
Black
Country of origin
China
Line-in
Yes
DisplayPort version
1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Headphone outputs
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
DisplayPorts quantity
1
PCI Express x16 (Gen 4.x) slots
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
2
Products per shipping (inner) case
1 pc(s)
Batteries included
Yes
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
HDCP
Yes
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
12V power connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Serial port headers
1
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Antenna included
Yes
Screws included
Yes
Warranty period
3 year(s)
DVI-D ports quantity
0
WiFi-AP antenna jack
2
Microphone in
Yes
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
RAID support
Yes
RAID levels
0, 1, 10
Depth
244 mm
Height
35 mm
BIOS memory size
128 Mbit
Cooling type
Passive
Number of M.2 (M) slots
2
1st M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
2280
Motherboard form factor
micro ATX
Number of chassis fan connectors
2
ECC сompatibility
ECC & Non-ECC
Number of storage drives supported
6
USB 2.0 connectors
1
Width
244 mm
2nd M.2 highest PCI Express generation
3.0
Motherboard chipset
AMD B550
Supported memory types
DDR4-SDRAM
Maximum internal memory per slot
32 GB
Supported memory clock speed (max)
3200 MHz
Supported memory clock speeds
3200,2933,2667,2400,2133 MHz
Processor socket
Socket AM4
Supported processor sockets
Socket AM4
Ethernet interface type
2.5 Gigabit Ethernet
Package height
68 mm
HDCP version
2.3
PCI Express x16 (Gen 3.x) slots
1
Weight
1.14 kg
Package depth
268 mm
Package width
270 mm
Maximum resolution
5120 x 2880 pixels
Windows operating systems supported
Windows 11
LAN controller
Realtek RTL8125
Package weight
1.3 kg
Audio Chip
Realtek ALC1220
WLAN controller model
Realtek RTL8922AE
Battery capacity
220 mAh
1st M.2 largest key size
2580
Bundled software
Norton Internet Security (OEM version)
Desktop Management Interface (DMI) version
2.3
PC health monitoring
Temperature, Voltage, Fan, Water cooling
Compatible processor series
AMD Ryzen 5000 Series, AMD Ryzen 4000 Series, AMD Ryzen 3000 Series
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 3.0, SATA III
