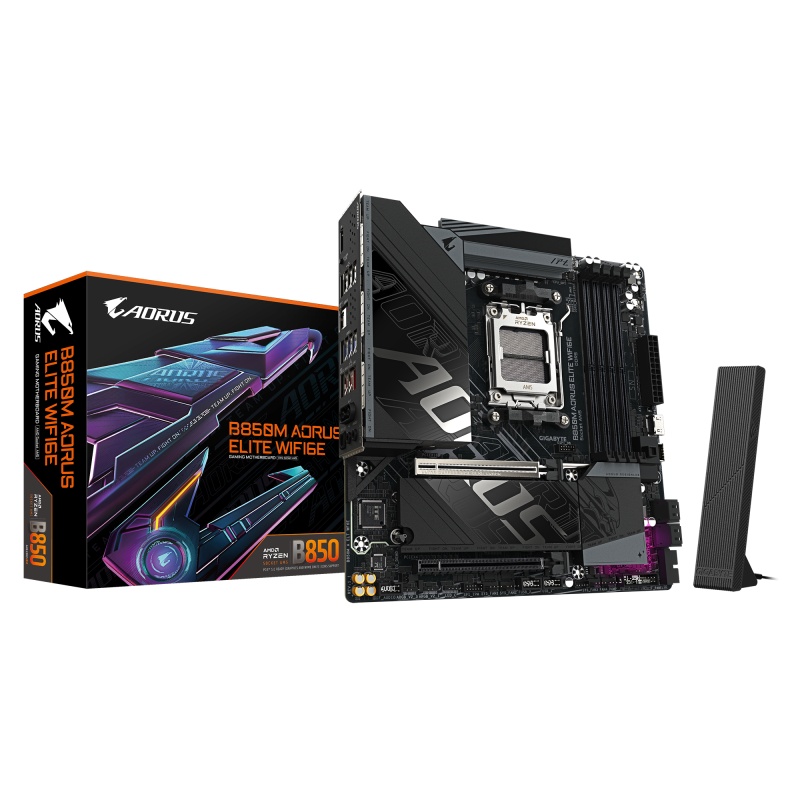

Placa de baza Gigabyte B850M AORUS ELITE WIFI6E, Socket AM5, DDR5, Micro-ATX
1.055,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de Baza GIGABYTE B850M AORUS ELITE WIFI6E AM5, 4x DDR5, 1x DP 1x HDMI, 2x PCIE x16, 2x M.2, 4x SATA 6GB/s, mATX
Detalii
SKU
B850M A ELT WF6E
EAN
4719331871123
Categorii
Brand
PCI
0
Serial-or-Paralel
No/No
USB3
4-8
PCI-Ex16
2
PCI-Ex1
0
Wi-Fi
Yes
Onboard-CPU
No
Component for
PC
Bluetooth
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
Memory channels
Dual-channel
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
Processor manufacturer
AMD
Product colour
Black
WLAN controller model
Realtek RTL8852CE
PCI Express x16 (Gen 5.x) slots
1
Line-in
Yes
DisplayPort version
1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Headphone outputs
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
HDMI version
1.4
DisplayPorts quantity
1
USB 2.0 ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Products per shipping (inner) case
1 pc(s)
Batteries included
Yes
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
AMD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
12V power connector
Yes
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Antenna included
Yes
Screws included
Yes
Warranty period
3 year(s)
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
RAID support
Yes
RAID levels
0, 1, 10
Height
35 mm
MB-Format
ATX
RAM-Slots
4
MB-Socket
AM5
Cooling type
Passive
Number of M.2 (M) slots
2
Motherboard form factor
micro ATX
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of storage drives supported
6
Width
244 mm
Ethernet interface type
2.5 Gigabit Ethernet
Motherboard chipset
AMD B850
Number of chassis fan connectors
4
Package height
68 mm
Supported memory clock speed (max)
8200 MHz
PCI Express x16 (Gen 3.x) slots
1
Package depth
268 mm
Package width
270 mm
USB 3.2 Gen 2x2 connectors
1
S/PDIF out port
Yes
LAN controller
Realtek RTL8125
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
Digital audio optical out
1
Maximum resolution
3840 x 2160 pixels
Package weight
1.97 kg
Audio Chip
Realtek ALC1220-VB
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Weight
17.8 kg
Supported memory clock speeds
8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Depth
24.4 mm
