NOU

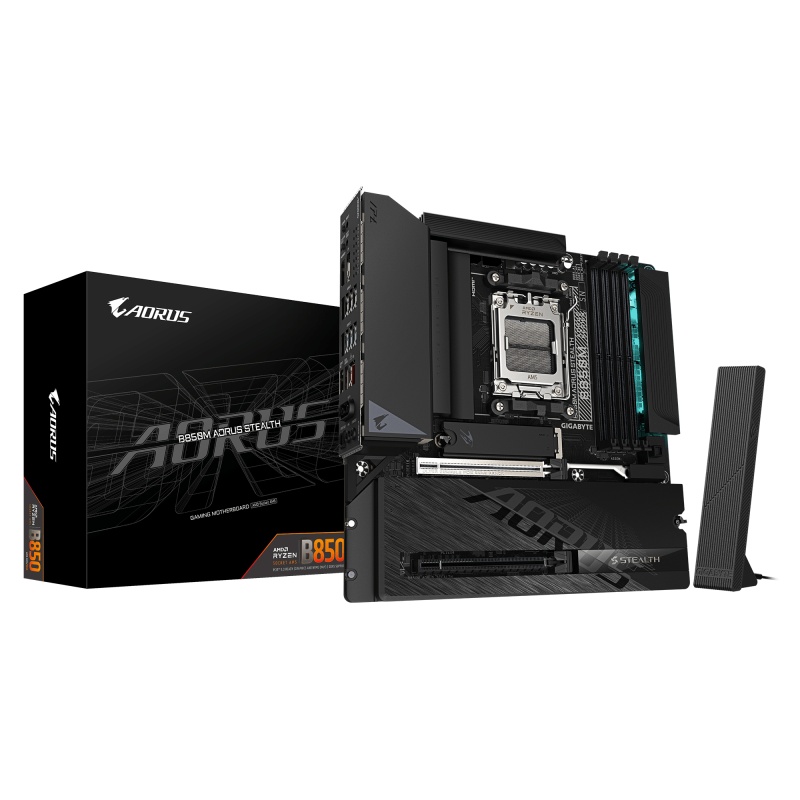

Placa de baza Gigabyte B850M AORUS STEALTH, Socket AM5, DDR5, Micro-ATX
1.179,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de baza Gigabyte B850M AORUS STEALTH
Detalii
SKU
B850M AORUS STEALTH
EAN
4719331882198
Categorii
Brand
PCI
0
PCI-Ex16
1
Serial-or-Paralel
No/No
USB3
4-8
PCI-Ex1
0
Wi-Fi
Yes
Onboard-CPU
No
Component for
PC
Bluetooth
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Memory channels
Dual-channel
Ethernet LAN
Yes
Bluetooth version
5.4
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Processor manufacturer
AMD
Product colour
Black
PCI Express x16 (Gen 5.x) slots
1
Line-in
Yes
DisplayPort version
1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Headphone outputs
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPorts quantity
1
PCI Express x16 (Gen 4.x) slots
1
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Number of SATA III connectors
2
Products per shipping (inner) case
1 pc(s)
Batteries included
Yes
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Number of M.2 (M) slots
3
1st M.2 highest PCI Express generation
5.0
2nd M.2 highest PCI Express generation
4.0
3rd M.2 highest PCI Express generation
4.0
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
12V power connector
Yes
Number of EPS power connectors (8-pin)
1
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Antenna included
Yes
Screws included
Yes
Warranty period
3 year(s)
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
RAID support
Yes
Depth
244 mm
Height
35 mm
MB-Format
ATX
RAM-Slots
4
MB-Socket
AM5
Cooling type
Passive
1st M.2 largest key size
2280
2nd M.2 largest key size
2280
Motherboard form factor
micro ATX
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of chassis fan connectors
2
Number of storage drives supported
5
Width
244 mm
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Motherboard chipset
AMD B850
3rd M.2 largest key size
2280
Supported memory clock speed (max)
8200 MHz
S/PDIF out port
Yes
Number of HDDs supported
2
Digital audio optical out
1
Package depth
287 mm
RAID levels
0, 1, 10, 5
Audio Chip
Realtek ALC1220
WLAN controller model
Realtek RTL8922AE
LAN controller
Realtek RTL8126
Package height
89 mm
Battery capacity
220 mAh
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Package weight
2.66 kg
BIOS memory size
512 Mbit
Bundled software
Norton Internet Security (OEM version)
Weight
2.29 kg
Windows operating systems supported
Windows 11 Home
Supported memory clock speeds
8200,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz
Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet
Package width
268 mm
