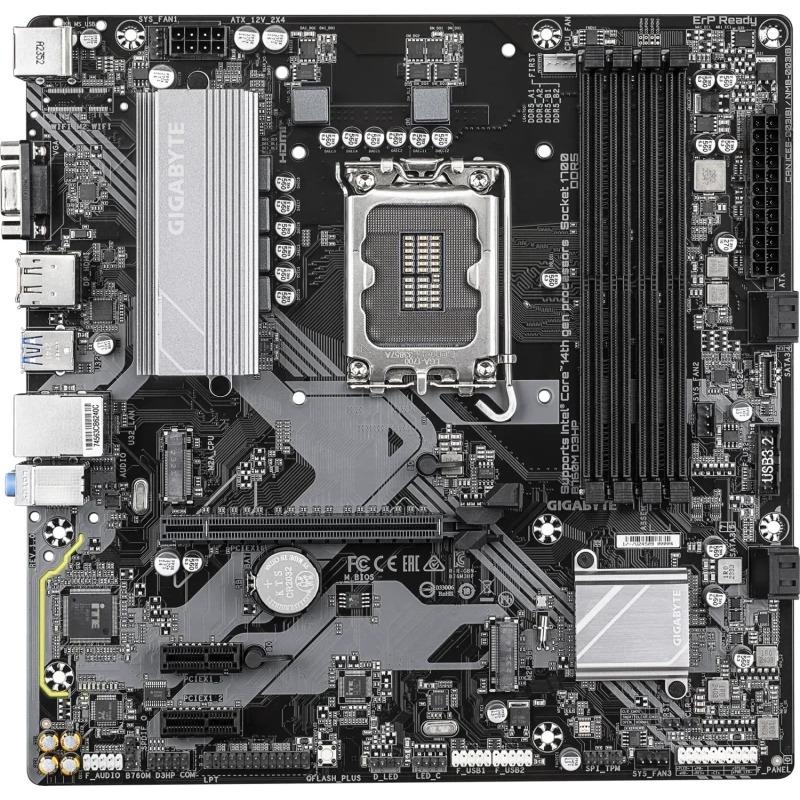

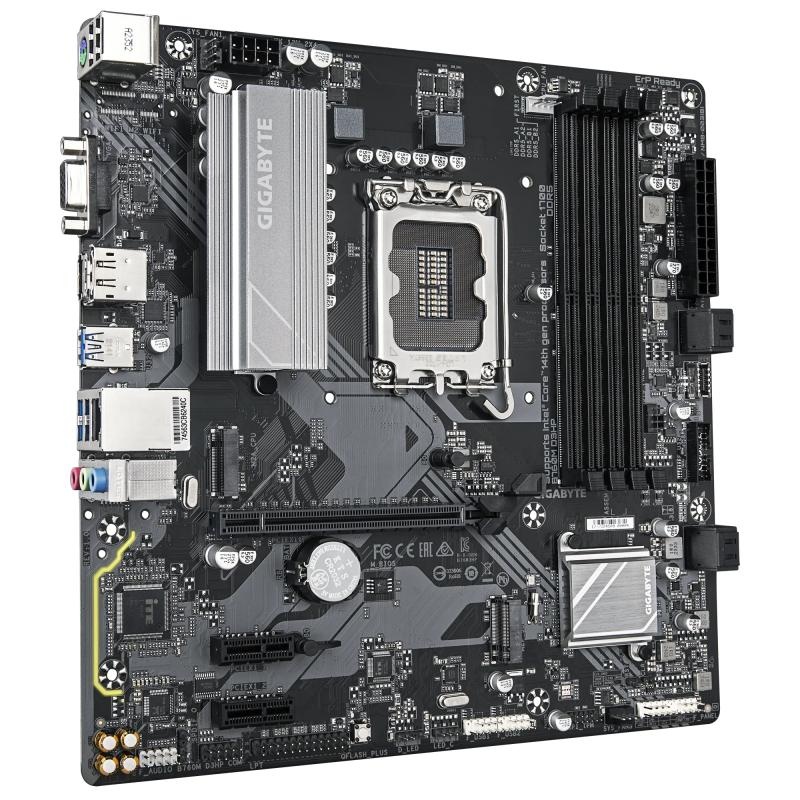

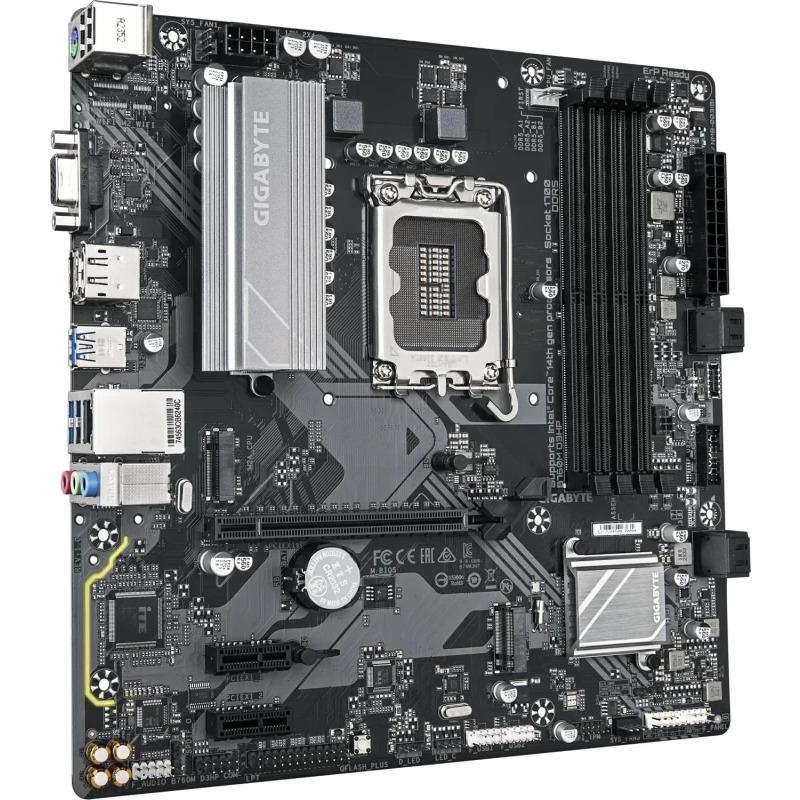

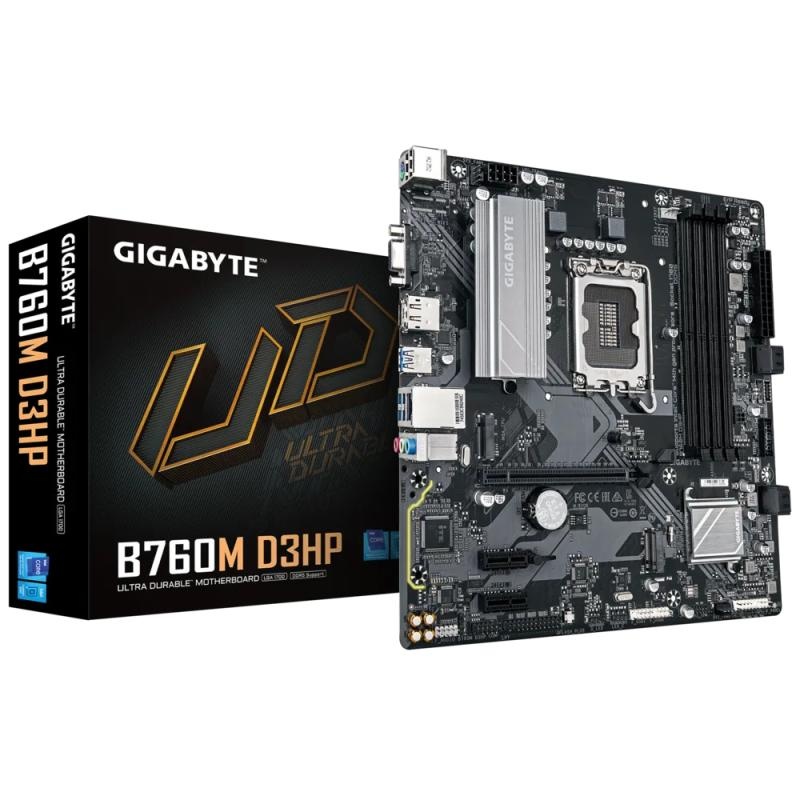

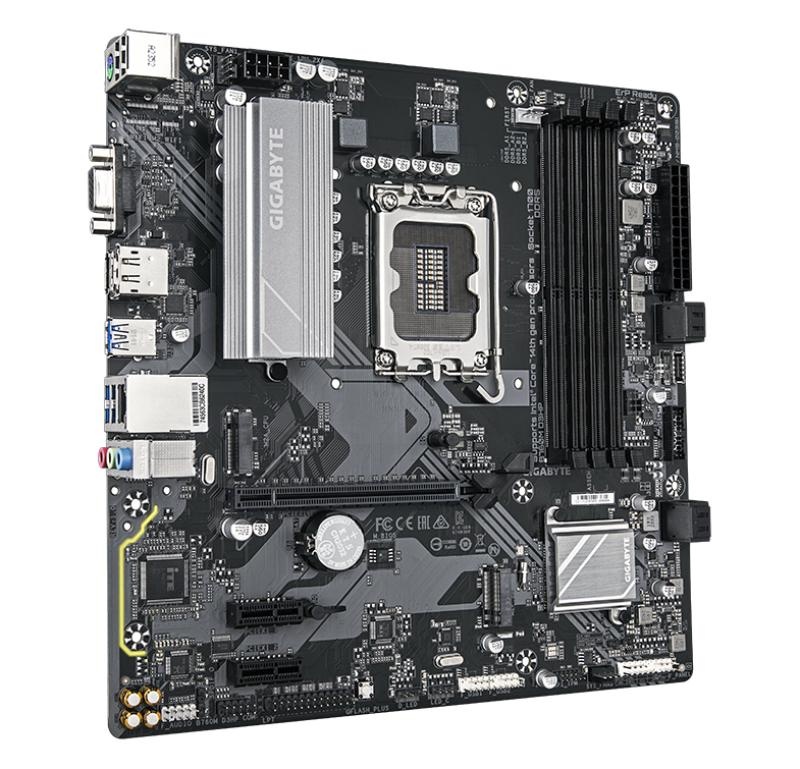

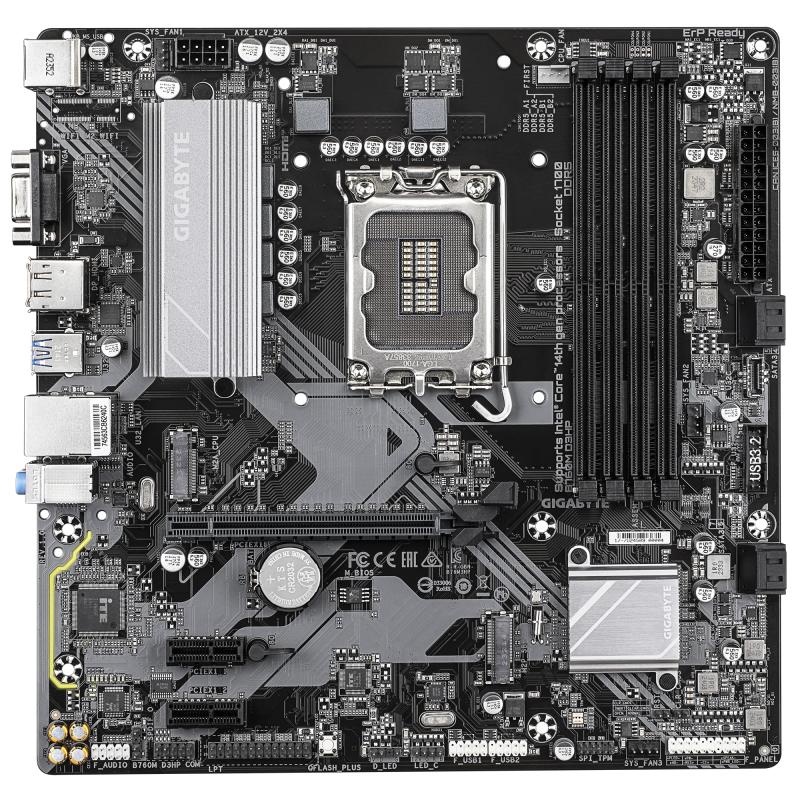

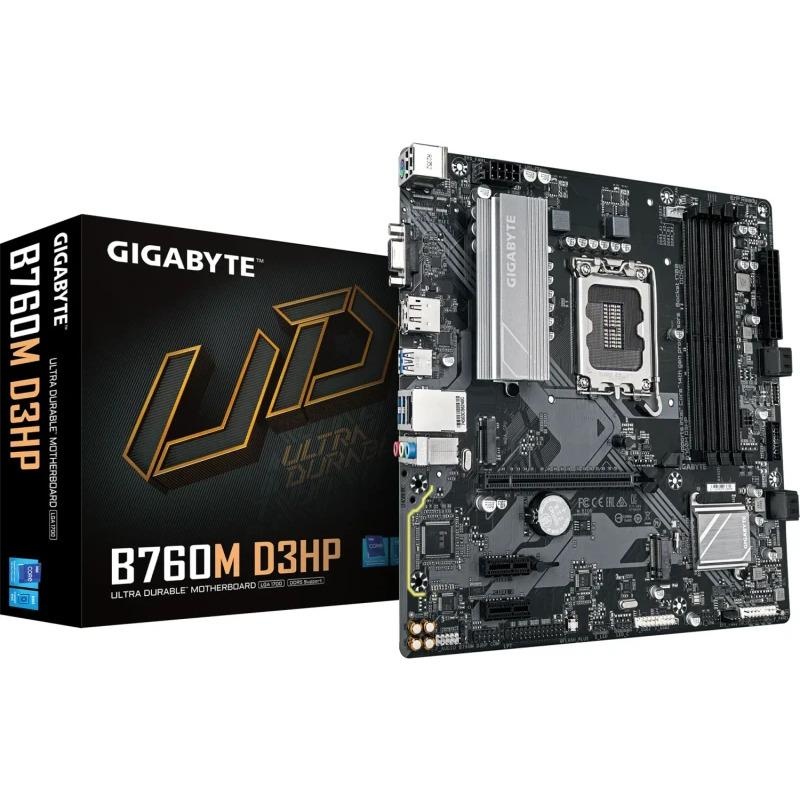

Placa de Baza GIGABYTE B760M D3HP LGA1700
523,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de Baza GIGABYTE B760M D3HP LGA1700, 4x DDR5, 1x D-Sub 1x HDMI 1x DP, 1x PCIE 4.0 x16 2x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
Detalii
SKU
B760M D3HP
EAN
4719331864347
Categorii
Brand
PCI
0
Serial-or-Paralel
No/No
Wi-Fi
No
Onboard-CPU
No
Component for
PC
Memory channels
Dual-channel
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Processor manufacturer
Intel
Windows operating systems supported
Windows 10, Windows 11
Weight
720 g
PCI Express x1 (Gen 3.x) slots
2
Line-in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Headphone outputs
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
DisplayPorts quantity
1
PCI Express x16 (Gen 4.x) slots
1
VGA (D-Sub) ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 2.0 ports quantity
2
Products per shipping (inner) case
1 pc(s)
Batteries included
Yes
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Product colour
Brown
2nd M.2 highest PCI Express generation
4.0
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Audio output channels
7.1 channels
HDCP
Yes
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Serial port headers
1
Number of EPS power connectors (8-pin)
1
Number of chassis fan connectors
3
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
Screws included
Yes
Warranty period
3 year(s)
DVI-D ports quantity
0
Microphone in
Yes
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
Depth
244 mm
Height
35 mm
BIOS memory size
128 Mbit
Number of M.2 (M) slots
2
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
2280
2nd M.2 largest key size
2280
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
USB 2.0 connectors
2
Number of CPU fan connectors
1
S/PDIF out connector
Yes
ECC сompatibility
ECC & Non-ECC
DisplayPort version
1.2
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
Number of storage drives supported
6
RAID levels
0, 1, 5, 10
Number of RGB LED pin headers
2
PS/2 ports quantity
1
Width
244 mm
Package height
68 mm
Package depth
268 mm
Package width
270 mm
Motherboard chipset
Intel B760 Express
Maximum resolution
4096 x 2304 pixels
Parallel connector
Yes
Supported memory clock speeds
4400,4800,5200,5600 MHz
Supported memory clock speed (max)
5600 MHz
Bundled software
Norton Internet Security
Package weight
1.21 kg
