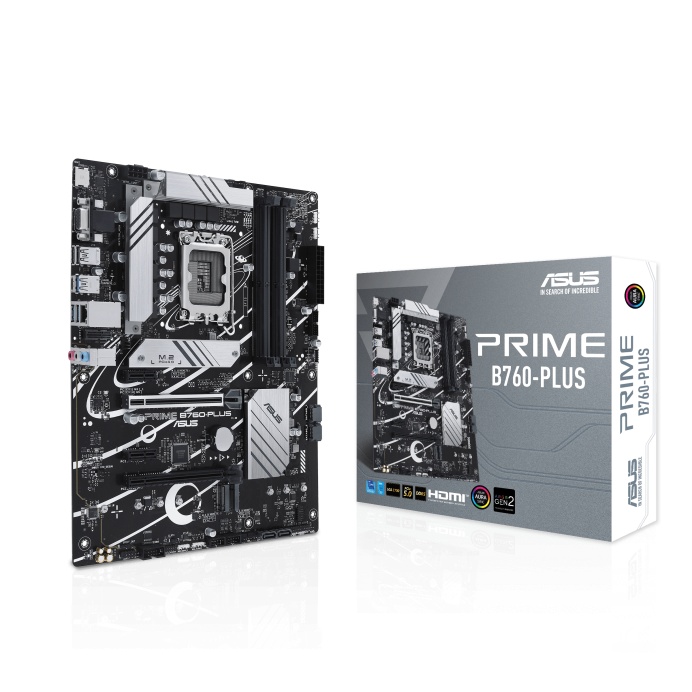

Placa de baza ASUS PRIME B760-PLUS, Socket 1700, DDR5, ATX
649,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de baza Asus Prime B760-PLUS LGA1700, 4x DDR5, 1x DisplayPort, 1x HDMI, 1x VGA, 2x PCIe x16, 2x PCIe x1, 3x M.2, 4x SATA 6Gbps, 2.5Gbps LAN, ATX
Detalii
SKU
PRIME B760-PLUS
EAN
4711387102985
Categorii
Brand
PCI
0
Serial-or-Paralel
No/No
Wi-Fi
No
Onboard-CPU
No
Component for
PC
Memory channels
Dual-channel
Ethernet LAN
Yes
HDMI ports quantity
1
HDMI version
2.1
Processor manufacturer
Intel
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 5.x) slots
1
Line-in
Yes
DisplayPort version
1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Headphone outputs
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
DisplayPorts quantity
1
PCI Express x16 (Gen 4.x) slots
1
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
BIOS type
UEFI AMI
Number of M.2 (M) slots
3
Motherboard form factor
ATX
Power source type
ATX
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of chassis fan connectors
3
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
ECC сompatibility
Non-ECC
DVI-D ports quantity
0
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
7
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
BIOS memory size
128 Mbit
Cooling type
Passive
Motherboard chipset
Intel B760
Motherboard chipset family
Intel
USB 2.0 connectors
2
S/PDIF out connector
Yes
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
RAID levels
0, 1, 5, 10
Maximum internal memory
192 GB
Maximum number of SMP processors
1
Windows operating systems supported
Windows 10 x64, Windows 11
Number of COM connectors
1
Thunderbolt headers
1
Cables included
SATA
Peripheral (Molex) power connectors (4-pin)
1
Ethernet interface type
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Weight
760 g
Package weight
1.2 kg
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Package height
53 mm
Package depth
266 mm
Package width
328 mm
Height
36 mm
Width
30.5 mm
Depth
24.4 mm
