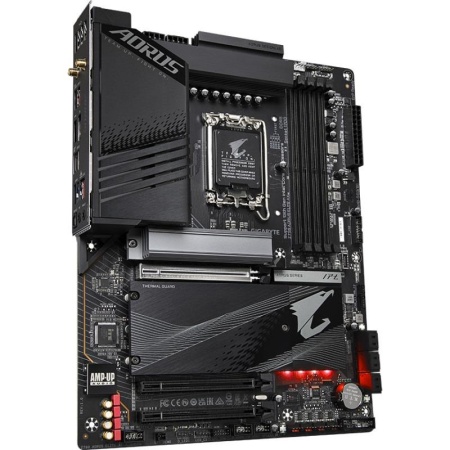

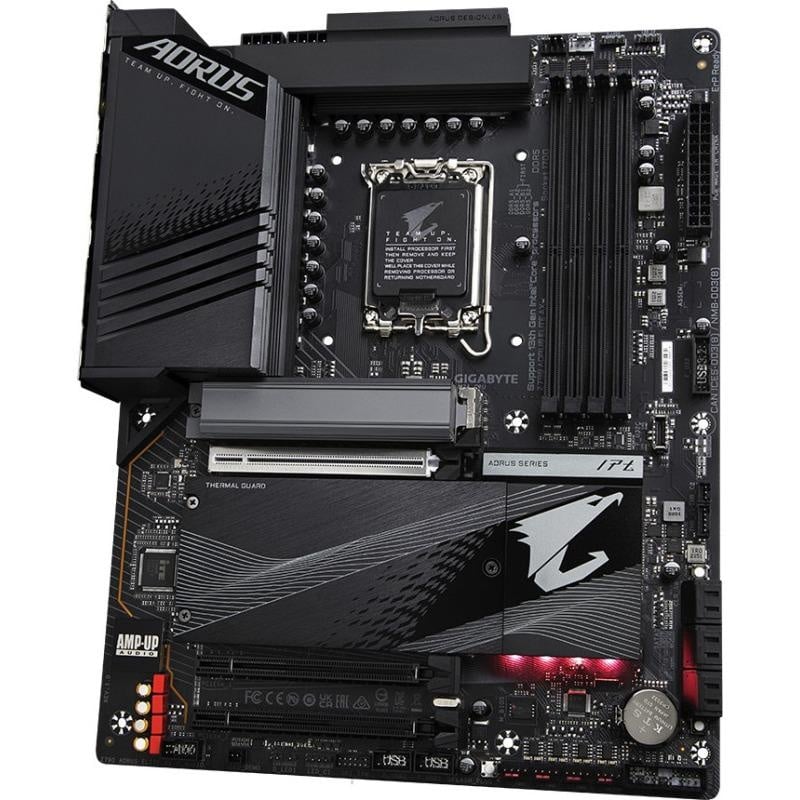

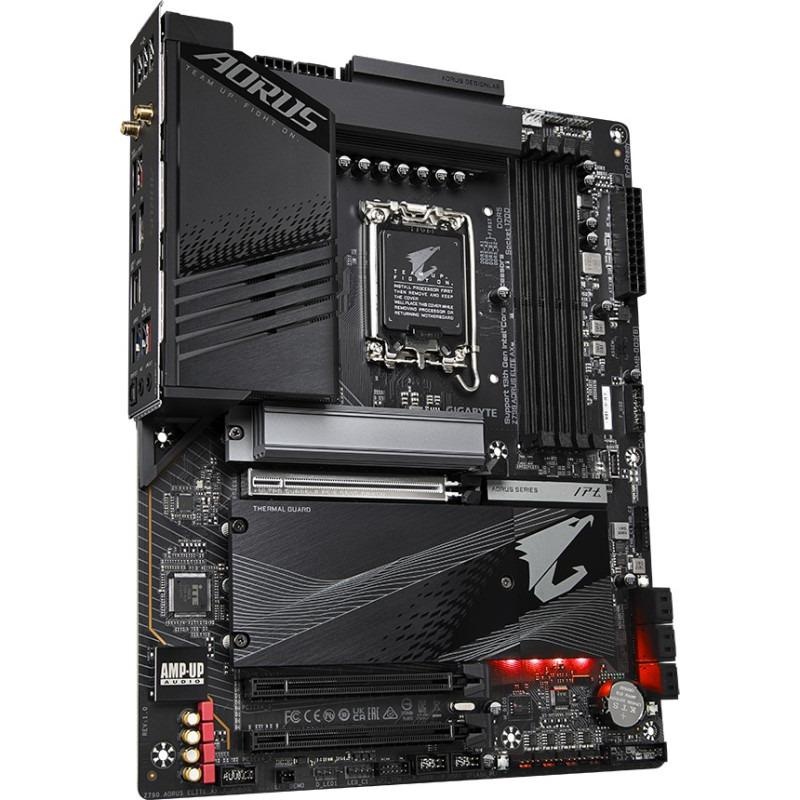

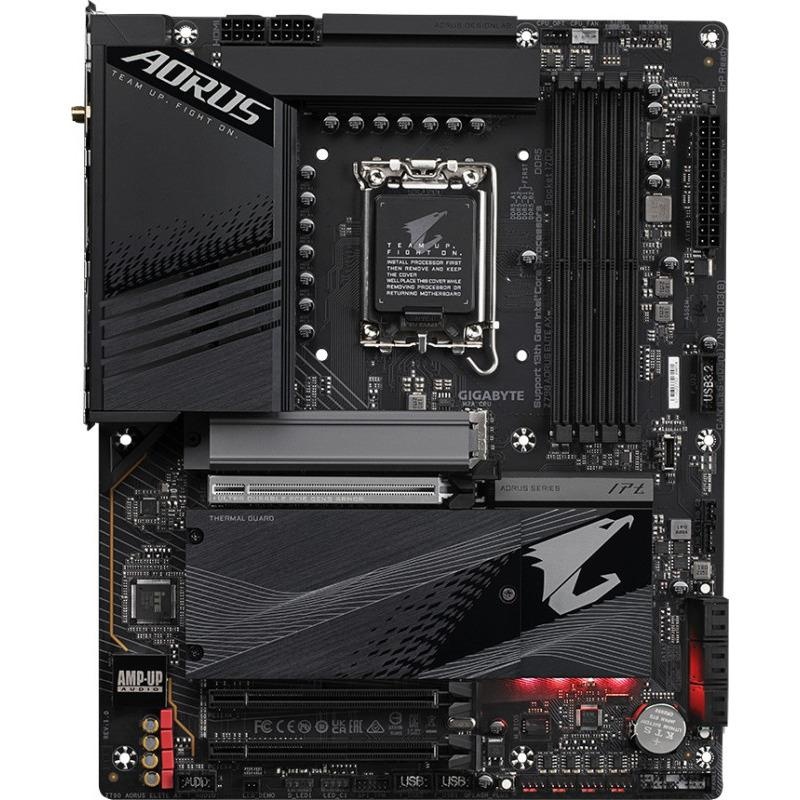

Placa de baza Gigabyte Z790 AORUS ELITE AX, Socket 1700, DDR5, ATX
1.142,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de baza Gigabyte Z790 AORUS ELITE AX LGA 1700,Z790, PCIe Gen 5, ATX, 4x DIMM slots, DDR5 7600MHz(OC), 4 x M.2 , 6 x SATA, 2.5Gb LAN, WIFI 6E, HDMI, 9x USB, Type-C
Detalii
SKU
Z790 AORUS ELITEAX
EAN
4719331849467
Categorii
Brand
PCI
0
Serial-or-Paralel
No/No
USB3
4-8
PCI-Ex1
0
PCI-Ex16
3
Wi-Fi
Yes
Onboard-CPU
No
Component for
PC
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
Memory channels
Dual-channel
Ethernet LAN
Yes
HDMI ports quantity
1
Processor manufacturer
Intel
WLAN controller model
Intel Wi-Fi 6E AX211
Country of origin
China
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 3.2 Gen 2x2 Type-C ports quantity
1
DisplayPorts quantity
1
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Motherboard form factor
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
HDCP
Yes
DirectX version
12.0
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Supported memory clock speed (max)
7600 MHz
Package width
335 mm
Package depth
270 mm
Package height
80 mm
DVI-D ports quantity
0
WiFi-AP antenna jack
2
Microphone in
Yes
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
RAID support
Yes
Height
35 mm
MB-Format
ATX
RAM-Slots
4
Motherboard chipset family
Intel
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
ECC сompatibility
ECC & Non-ECC
DisplayPort version
1.2
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
RAID levels
0, 1, 5, 10
MB-Socket
1700
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Maximum internal memory
192 GB
Ethernet interface type
2.5 Gigabit Ethernet
On-board graphics card
No
Number of SATA II connectors
0
Number of SATA connectors
0
mSATA ports quantity
0
Cables included
SATA
HDMI version
2.0
Maximum resolution
4096 x 2304 pixels
Bundled software
Norton Internet Security
S/PDIF out port
Yes
Number of SATA III connectors
6
Number of HDDs supported
6
Number of M.2 (M) slots
4
USB connector type
USB Type-A, USB Type-C
PCI Express x16 slots
3
Headphone outputs
2
Thunderbolt headers
2
Maximum internal memory supported by processor
192 GB
Total number of SATA connectors
6
Number of storage drives supported
10
Motherboard chipset
Intel Z790
Parallel processing technology support
Crossfire
Supported memory clock speeds
7600,7400,7200,4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000 MHz
Package weight
2.32 kg
Width
30.5 mm
Depth
24.4 mm
