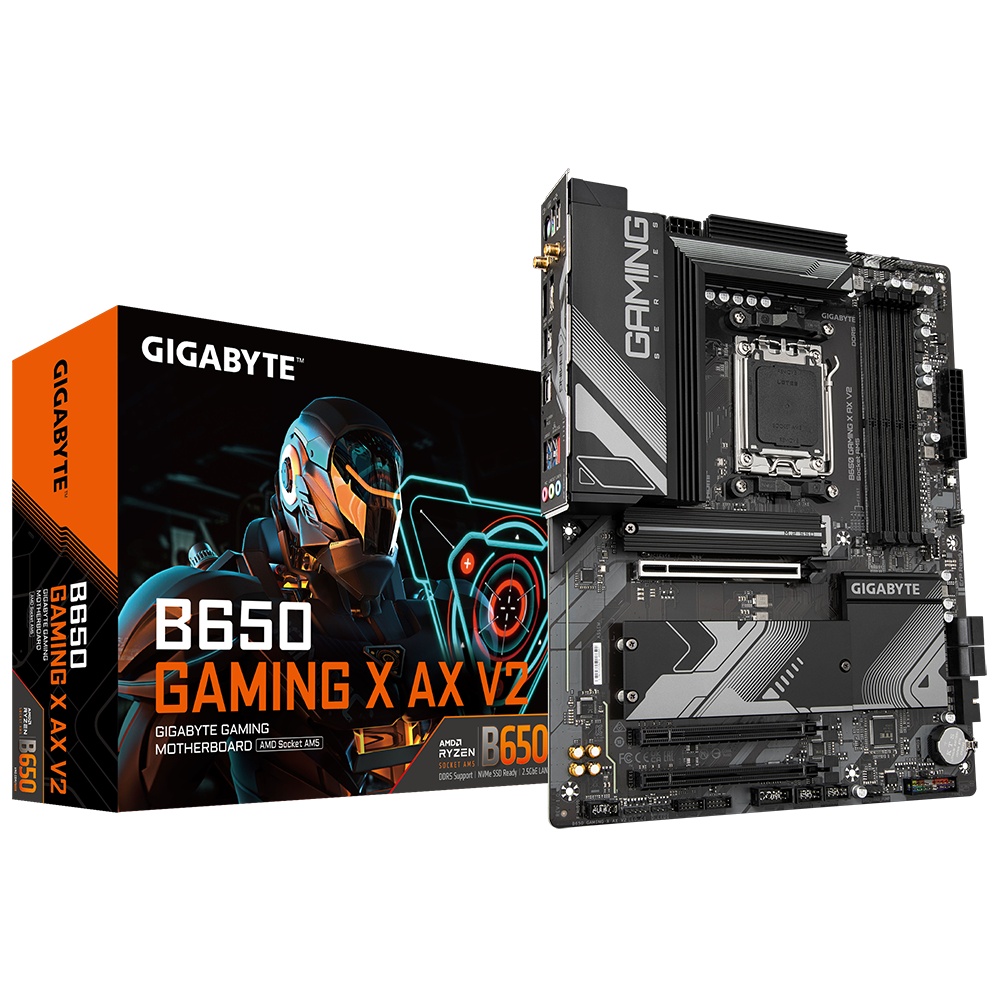

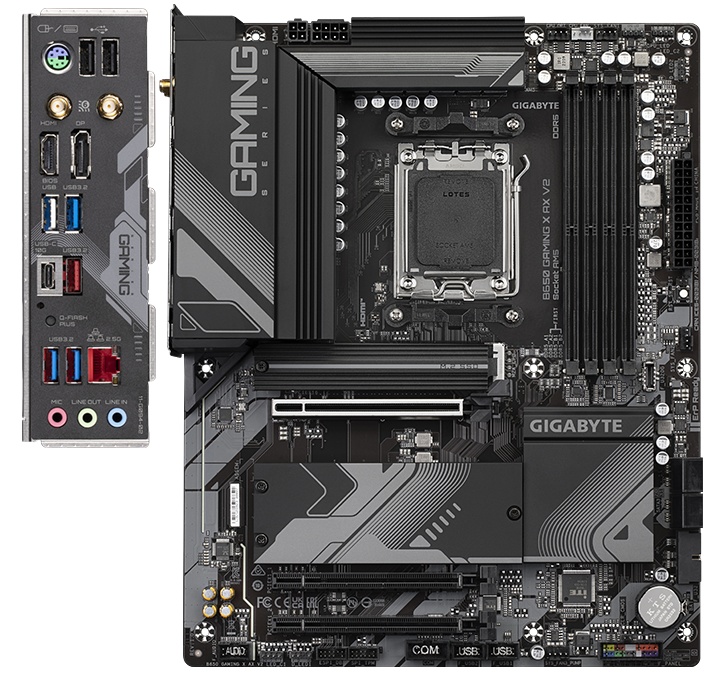

Placa de baza Gigabyte B650 GAMING X AX V2, Socket AM5, DDR5, ATX
702,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de baza GIGABYTE B650 GAMING X AX V2 AM5, 4x DDR5, 1x DP 1x HDMI, 2x PCIE x16, 3x M.2, 4x SATA 6gb/s, ATX
Detalii
SKU
B650 GAMING X AX V2
EAN
4719331860073
Categorii
Brand
PCI
0
Serial-or-Paralel
No/No
Wi-Fi
Yes
Onboard-CPU
No
Component for
PC
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
Memory channels
Dual-channel
Ethernet LAN
Yes
HDMI ports quantity
1
HDMI version
2.1
Processor manufacturer
AMD
Country of origin
China
WLAN controller model
Realtek RTL8852CE
USB 2.0 ports quantity
3
Line-in
Yes
DisplayPort version
1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Headphone outputs
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPorts quantity
1
PCI Express x16 (Gen 4.x) slots
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Product colour
Brown
Number of M.2 (M) slots
3
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 highest PCI Express generation
4.0
3rd M.2 highest PCI Express generation
4.0
PCI Express x16 (Gen 3.x) slots
2
Motherboard chipset
AMD B650
Motherboard form factor
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
AMD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
HDCP
Yes
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
12V power connector
Yes
Serial port headers
1
Number of EPS power connectors (8-pin)
1
Number of chassis fan connectors
3
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Antenna included
Yes
Screws included
Yes
Package width
335 mm
Package depth
270 mm
Package height
80 mm
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
Microphone in
Yes
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
7
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
RAID levels
0, 1, 10
Height
35 mm
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of RGB LED pin headers
5
Ethernet interface type
2.5 Gigabit Ethernet
Supported memory clock speed (max)
8000 MHz
2nd M.2 largest key size
25110
USB 3.2 Gen 2x2 connectors
1
Discrete graphics support
Yes
3rd M.2 largest key size
25110
LAN controller
Realtek RTL8125
Supported memory clock speeds
8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz
Package weight
2.16 kg
Width
30.5 mm
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Depth
24.4 mm
