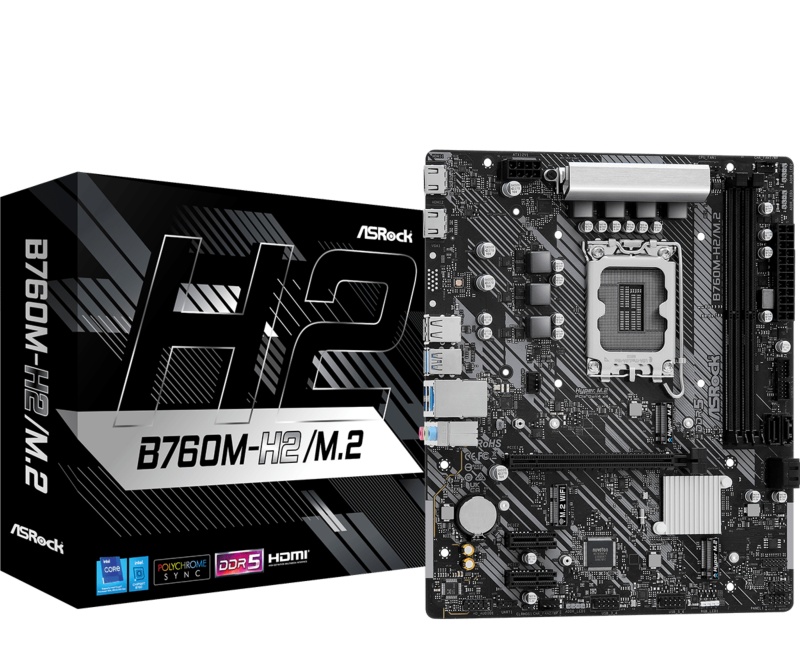

Placa de baza ASRock B760M-H2/M.2, Socket 1700, DDR5, Micro-ATX

440,00 RON (TVA inclus)
Costurile de livrare nu sunt incluse
Cod produs - SKU B760M-H2/M.2
EAN 4710483944215
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0773885089
Trimite-ne un mesaj

Descriere

Placă de bază ASRock B760M-H2/M.2, micro-ATX, socket LGA1700, chipset Intel B760, suport DDR4 128 GB, PCIe 4.0 x16, slot M.2 PCIe Gen4, LAN Gigabit.

Detalii

SKU
B760M-H2/M.2
EAN
4710483944215
Categorii
Placi de baza
Brand
ASROCK
PCI
0
PCI-Ex1
2
PCI-Ex16
1
Serial-or-Paralel
No/No
USB3
4-8
Wi-Fi
No
Onboard-CPU
No
Component for
PC
Maximum internal memory
128 GB
Memory channels
Dual-channel
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Processor manufacturer
Intel
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
PCI Express x1 (Gen 3.x) slots
2
Line-in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
PCI Express x16 (Gen 4.x) slots
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
2
BIOS type
UEFI AMI
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
HDCP
Yes
Parallel processing technology support
Not supported
Front panel connector
Yes
TPM connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
ECC сompatibility
Non-ECC
DVI-D ports quantity
0
Microphone in
Yes
VGA (D-Sub) ports quantity
0
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
BIOS memory size
128 Mbit
Number of M.2 (M) slots
2
Motherboard chipset
Intel B760
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
Number of memory slots
2
Supported memory clock speed (max)
7200 MHz
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
RAID levels
0, 1, 5, 10
MB-Socket
1700
MB-Format
micro-ATX
RAM-Slots
2
PS/2 ports quantity
1
Width
244 mm
USB 2.0 connectors
4
Ethernet interface type
2.5 Gigabit Ethernet
HDMI ports quantity
2
Maximum number of SMP processors
1
Chassis intrusion connector
Yes
Cables included
SATA
Total number of SATA connectors
4
Number of storage drives supported
4
Number of HDDs supported
6
Maximum internal memory supported by processor
128 GB
Certification
- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
Depth
201 mm
Compatible processor series
Intel Core™ i3, Intel Core™ i5, Intel Core™ i7, Intel Core™ i9
Supported memory clock speeds
5600,6800,7200 MHz
