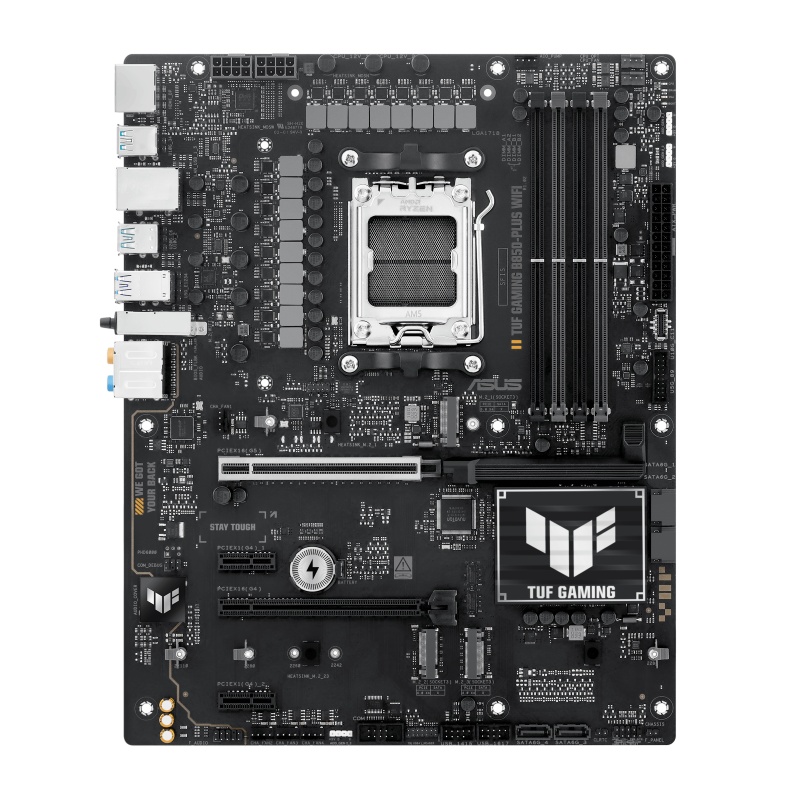

Placa de baza ASUS TUF GAMING B850-PLUS WIFI, Socket AM5, DDR5, ATX
1.006,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de Baza ASUS TUF GAMING B850-PLUS WIFI AM5, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 5.0 2x PCIE 4.0 x16 2x PCIE 4.0 x1, 3x M.2, 4x SATA 6GB/s, ATX
Detalii
SKU
TUF GAMING B850-PLUS WIFI
EAN
4711387781609
Categorii
Brand
PCI
0
PCI-Ex1
2
Serial-or-Paralel
No/No
USB3
4-8
PCI-Ex16
3
Wi-Fi
Yes
Onboard-CPU
No
Component for
PC
Memory channels
Dual-channel
Ethernet LAN
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
HDMI ports quantity
1
HDMI version
2.1
Processor manufacturer
AMD
PCI Express x16 (Gen 5.x) slots
1
Line-in
Yes
DisplayPort version
1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Headphone outputs
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
DisplayPorts quantity
1
PCI Express x16 (Gen 4.x) slots
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
2
Clear CMOS button
Yes
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Number of M.2 (M) slots
3
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
3rd M.2 highest PCI Express generation
4.0
Motherboard form factor
ATX
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
Front panel connector
Yes
Number of CPU fan connectors
2
RGB LED pin header
Yes
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Antenna included
Yes
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
Microphone in
Yes
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
7
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
MB-Format
ATX
RAM-Slots
4
MB-Socket
AM5
1st M.2 largest key size
2280
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
ECC сompatibility
ECC & Non-ECC
RAID levels
0, 1, 5, 10
Number of water pump connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Maximum internal memory
192 GB
Ethernet interface type
2.5 Gigabit Ethernet
Motherboard chipset
AMD B850
Number of chassis fan connectors
4
Number of COM connectors
1
Thunderbolt headers
1
Chassis intrusion connector
Yes
Supported memory clock speed (max)
8000 MHz
Package width
353 mm
3rd M.2 largest key size
2280
On-board graphics card
No
Number of SATA II connectors
0
Number of SATA connectors
0
mSATA ports quantity
0
Cables included
SATA
Package height
68 mm
Package depth
273 mm
Maximum resolution
7680 x 4320 pixels
Number of RGB LED pin headers
3
Quick installation guide
Yes
Windows operating systems supported
Windows 11
PCI Express x1 (Gen 4.x) slots
2
Package weight
1.81 kg
Audio Chip
Realtek ALC1220
Number of EPS power connectors (8-pin)
2
Width
30.5 mm
Weight
1.32 kg
Depth
24.4 mm
