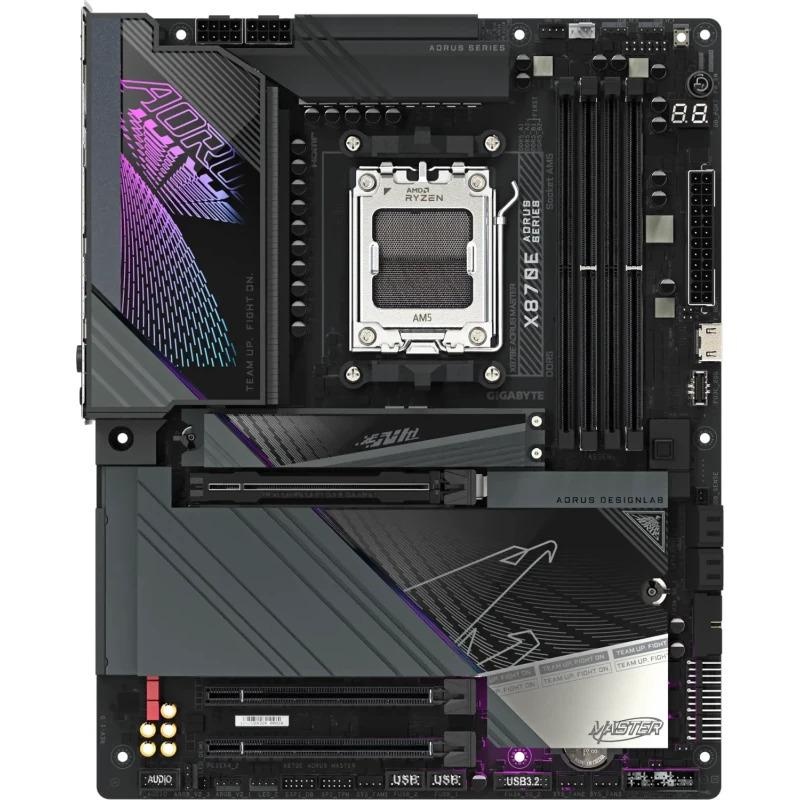

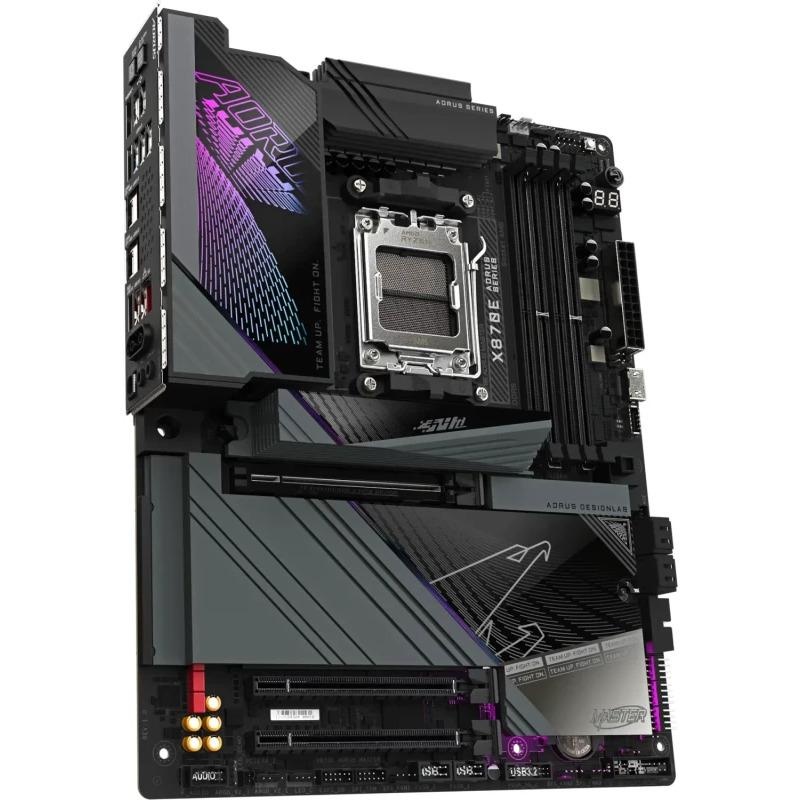

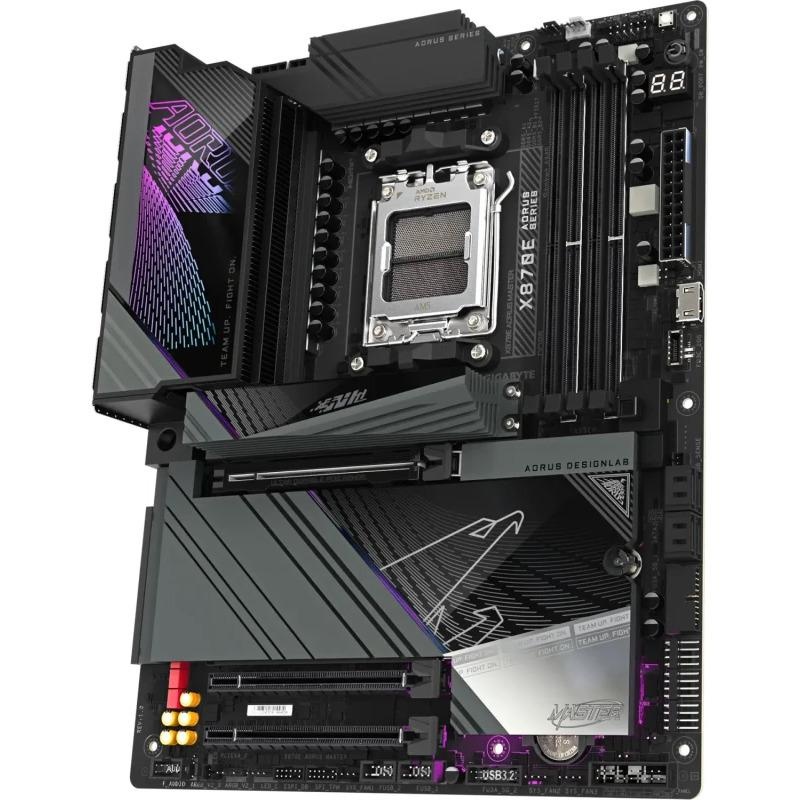

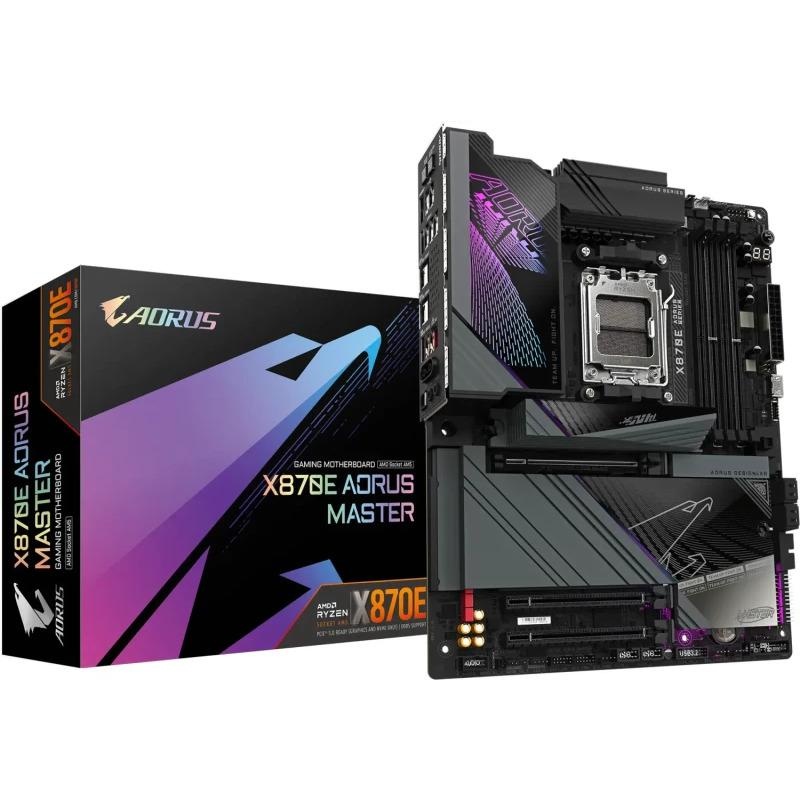

Placa de bază Gigabyte X870E AORUS MASTER AM5
2.395,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere

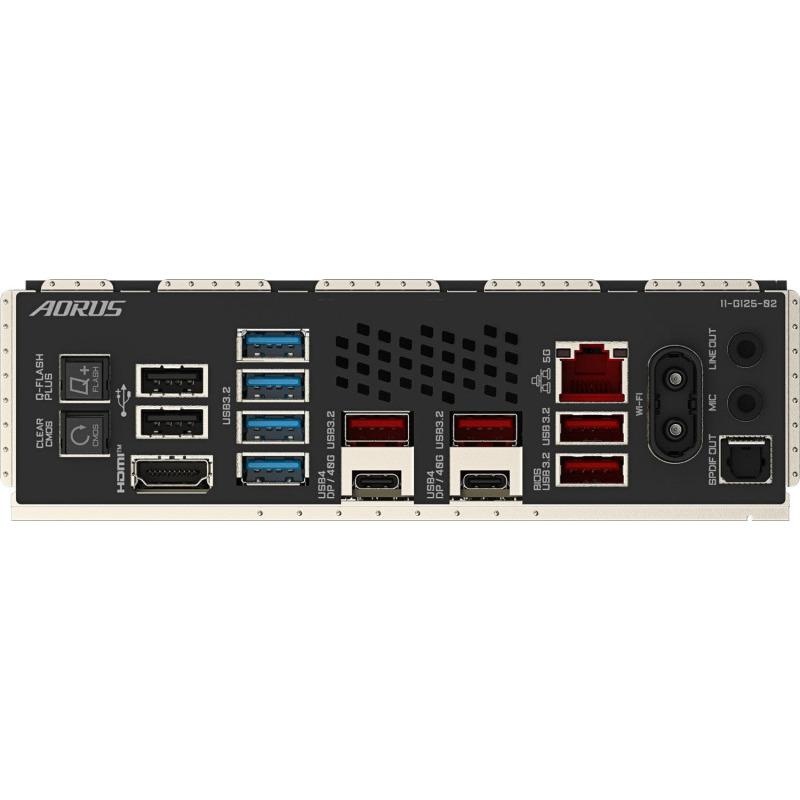

Placa de Baza GIGABYTE X870E AORUS MASTER AM5, 4x DDR5, 2x USB4 1x HDMI 1x Front HDMI, 3x PCIE x16, 4x M.2, 4x SATA 6GB/s, ATX
Detalii
SKU
X870E AORUS MASTER
EAN
4719331864354
Categorii
Brand
PCI
0
Serial-or-Paralel
Yes/No
Wi-Fi
Yes
Onboard-CPU
No
Component for
PC
Bluetooth version
5.3
Memory channels
Dual-channel
Ethernet LAN
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
HDMI ports quantity
1
HDMI version
2.1
Processor manufacturer
AMD
Country of origin
China
PCI Express x16 (Gen 5.x) slots
1
Line-in
Yes
DisplayPort version
1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Headphone outputs
1
USB 3.2 Gen 2x2 Type-C ports quantity
0
USB4 Gen 3x2 ports quantity
0
DisplayPorts quantity
0
PCI Express x16 (Gen 4.x) slots
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
2
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
3rd M.2 largest key size
22110
Motherboard form factor
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Antenna included
Yes
Screws included
Yes
Package height
80 mm
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
RAID levels
0, 1, 10
Width
305 mm
Depth
244 mm
Height
35 mm
USB 2.0 connectors
2
ECC сompatibility
ECC & Non-ECC
Number of RGB LED pin headers
5
On-board graphics card
No
Windows operating systems supported
Windows 11 x64
Ethernet interface type
5 Gigabit Ethernet
Maximum internal memory supported by processor
256 GB
Package width
345 mm
PCI Express x16 (Gen 3.x) slots
1
PCI Express x4 slots
2
PC health monitoring
Fan, Temperature, Voltage
Motherboard chipset
AMD X870
USB 3.2 Gen 2x2 connectors
1
USB4 Gen 2x2 ports quantity
2
S/PDIF out port
Yes
Number of M.2 (M) slots
4
Number of storage drives supported
8
Supported memory clock speed (max)
8600 MHz
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
PCI Express x8 (Gen 3.x) slots
0
Number of chassis fan connectors
6
PS/2 ports quantity
0
PCI Express x1 (Gen 3.x) slots
0
PCI Express x1 (Gen 4.x) slots
0
PCI Express x4 (Gen 4.x) slots
0
4th M.2 highest PCI Express generation
4.0
PCI Express x8 (Gen 4.x) slots
0
PCI Express x8 (Gen 5.x) slots
0
2nd M.2 highest PCI Express generation
5.0
3rd M.2 highest PCI Express generation
5.0
4th M.2 largest key size
22110
Audio Chip
Realtek ALC1220
Number of EPS power connectors (8-pin)
2
PCI Express x4 (Gen 3.x) slots
0
Package depth
294 mm
LAN controller
Realtek RTL8126
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 24GB, 32GB
WLAN controller model
Qualcomm QCNCM865
Weight
2.54 kg
Supported memory clock speeds
4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8200,8400,8600 MHz
Package weight
2.97 kg
