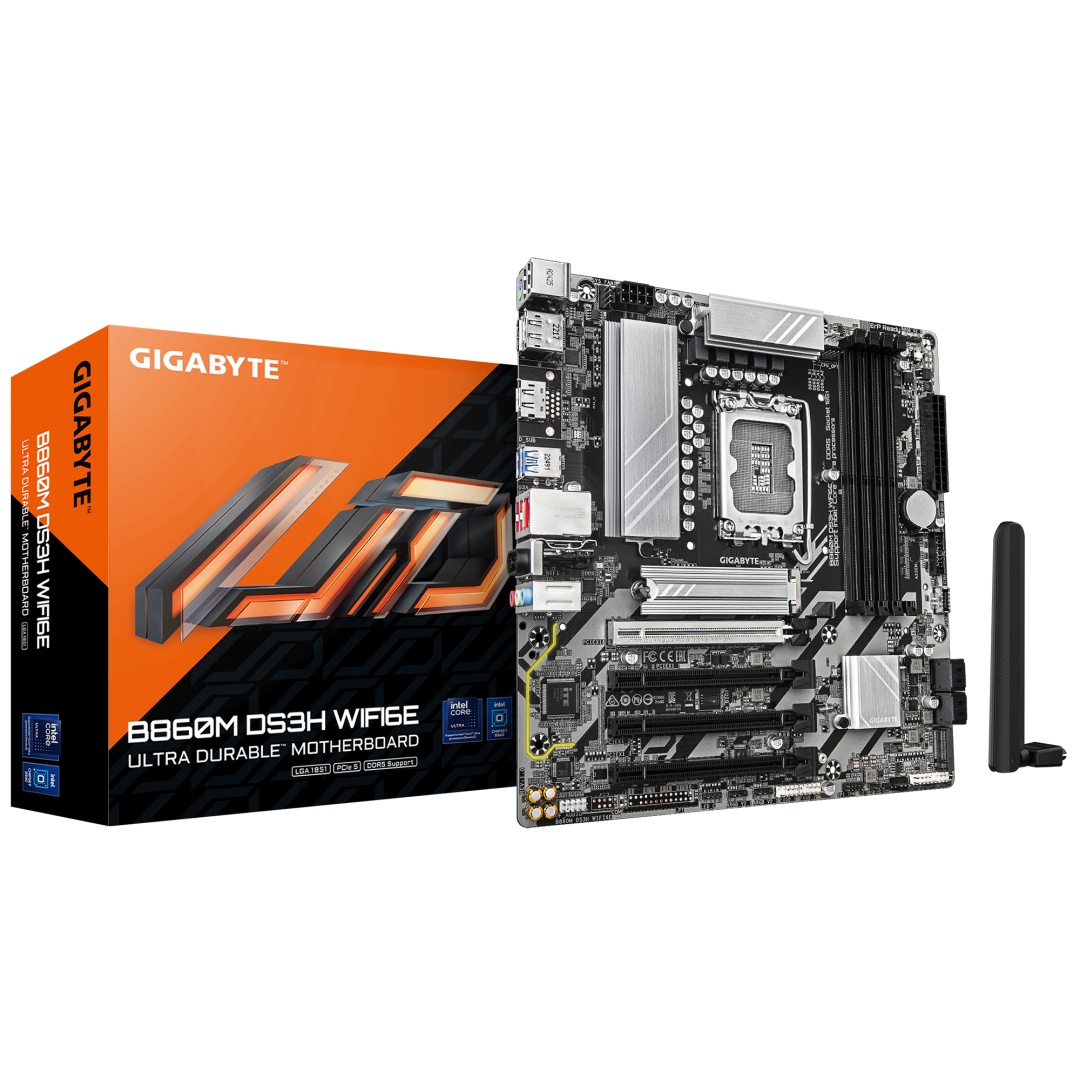

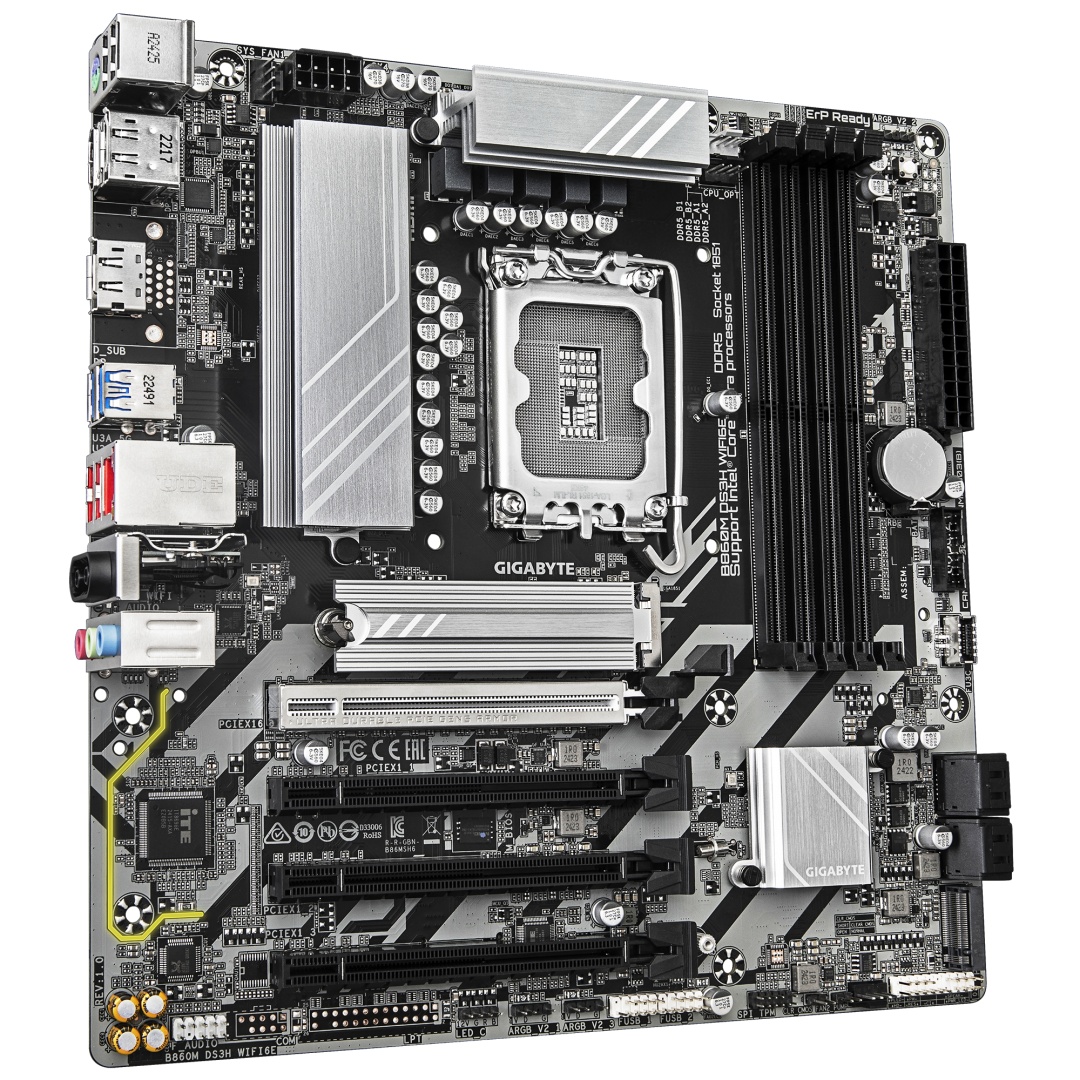

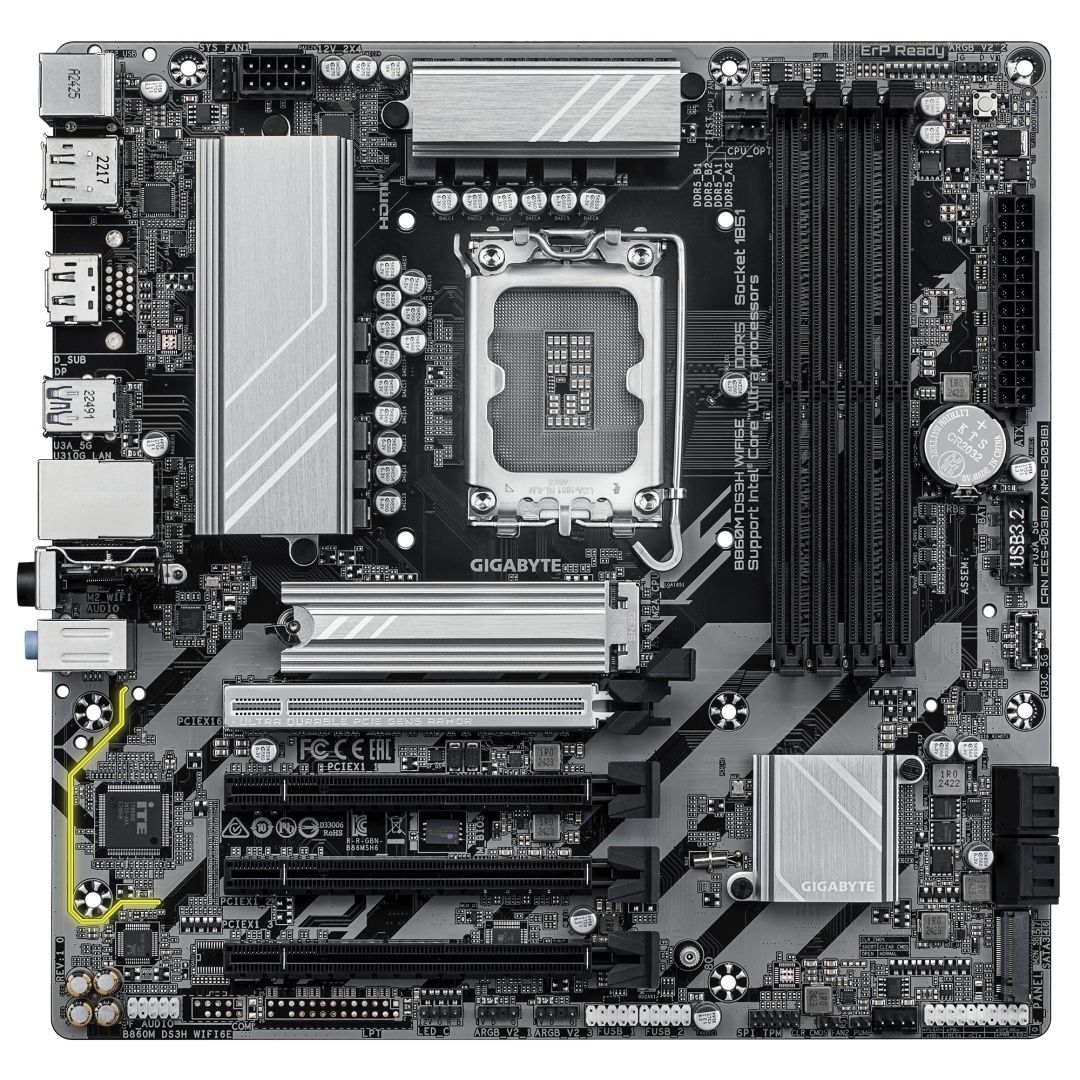

Placa de bază Gigabyte B860M DS3H WIFI6E LGA1851
842,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de Baza GIGABYTE B860M DS3H WIFI6E LGA1851, 4x DDR5, 1x HDMI 2x DP, 4x PCIE x16, 2x M.2, 4x SATA 6GB/s, mATX
Detalii
SKU
B860M DS3H WIFI6E
EAN
4719331866815
Categorii
Brand
PCI
0
Serial-or-Paralel
No/No
Wi-Fi
Yes
Onboard-CPU
No
Component for
PC
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
Memory channels
Dual-channel
Ethernet LAN
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
HDMI version
2.1
Processor manufacturer
Intel
WLAN controller model
Intel Wi-Fi 6E AX211
Country of origin
China
PCI Express x16 (Gen 5.x) slots
1
USB 2.0 ports quantity
3
DisplayPorts quantity
2
Line-in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
DisplayPort version
2.1
Headphone outputs
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Product colour
Brown
1st M.2 highest PCI Express generation
5.0
2nd M.2 highest PCI Express generation
4.0
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
HDCP
Yes
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Antenna included
Yes
Screws included
Yes
DVI-D ports quantity
0
WiFi-AP antenna jack
2
Microphone in
Yes
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
Height
35 mm
Number of M.2 (M) slots
2
1st M.2 largest key size
2280
2nd M.2 largest key size
2280
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
USB 2.0 connectors
2
Number of chassis fan connectors
2
ECC сompatibility
ECC & Non-ECC
Number of storage drives supported
6
RAID levels
0, 1, 5, 10
Processor socket
LGA 1851 (Socket V1)
Supported processor sockets
LGA 1851
PS/2 ports quantity
1
Width
244 mm
Ethernet interface type
2.5 Gigabit Ethernet
Package height
68 mm
Motherboard chipset
Intel B860
Package depth
268 mm
Package width
270 mm
LAN controller
Realtek RTL8125
Weight
1.1 kg
Package weight
1.25 kg
PCI Express x16 (Gen 4.x) slots
5
Supported memory clock speed (max)
9066 MHz
Supported memory clock speeds
5600,6400,9066 MHz
Compatible processor series
Intel Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Depth
24.4 mm
