Placa de baza Gigabyte B860M D3W
620,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere

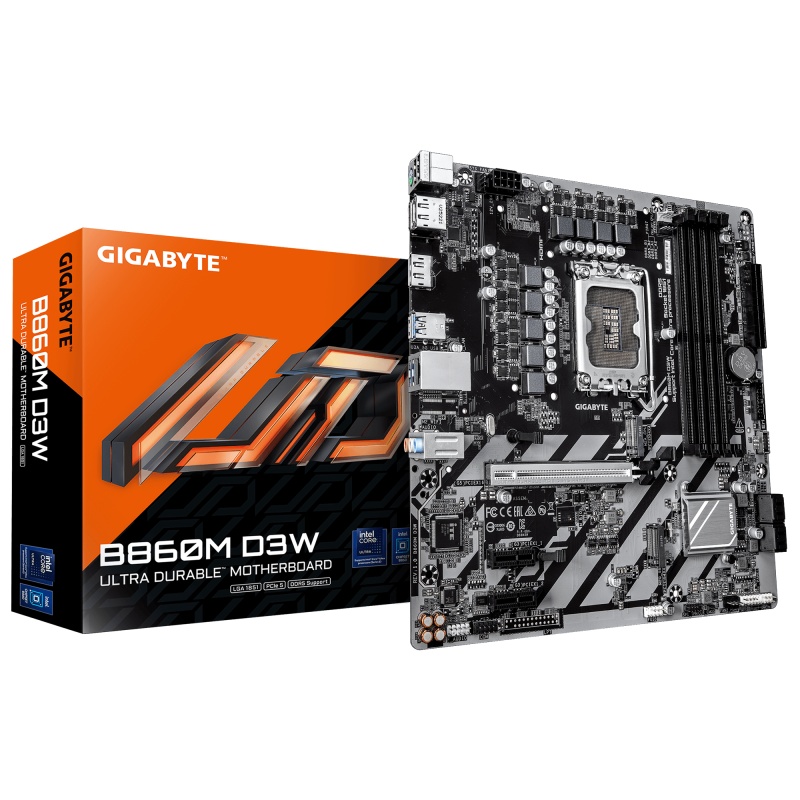

Placa de baza Gigabyte B860M D3W
Detalii
SKU
B860M D3W
EAN
4719331880613
Categorii
Brand
Wi-Fi
No
Package weight
1.6 kg
Component for
PC
Memory channels
Dual-channel
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Processor manufacturer
Intel
Country of origin
China
Weight
1.35 kg
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 5.x) slots
1
USB 2.0 ports quantity
3
DisplayPorts quantity
2
Line-in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
DisplayPort version
2.1
Headphone outputs
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
Products per shipping (inner) case
1 pc(s)
Batteries included
Yes
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
2nd M.2 highest PCI Express generation
4.0
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
HDCP
Yes
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Serial port headers
1
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
Screws included
Yes
Warranty period
3 year(s)
DVI-D ports quantity
0
Microphone in
Yes
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
Depth
244 mm
Height
35 mm
Product colour
Dark brown
Cooling type
Passive
Number of M.2 (M) slots
2
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
2280
2nd M.2 largest key size
2280
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
Number of chassis fan connectors
2
ECC сompatibility
ECC & Non-ECC
Package depth
265 mm
Package height
54 mm
Package width
265 mm
Number of storage drives supported
6
RAID levels
0, 1, 5, 10
USB 2.0 connectors
1
Processor socket
LGA 1851 (Socket V1)
Supported processor sockets
LGA 1851
PS/2 ports quantity
1
Width
244 mm
HDCP version
2.3
Motherboard chipset
Intel B860
Battery capacity
220 mAh
Supported memory clock speed (max)
9066 MHz
Compatible processor series
Intel Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Bundled software
Norton Internet Security (OEM version)
Supported memory clock speeds
5600,6400,9066,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800 MHz
