NOU

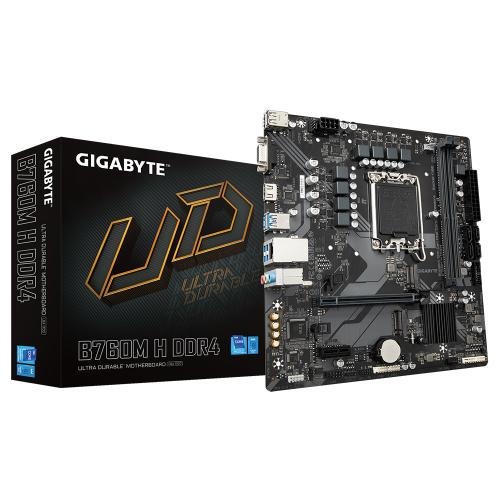

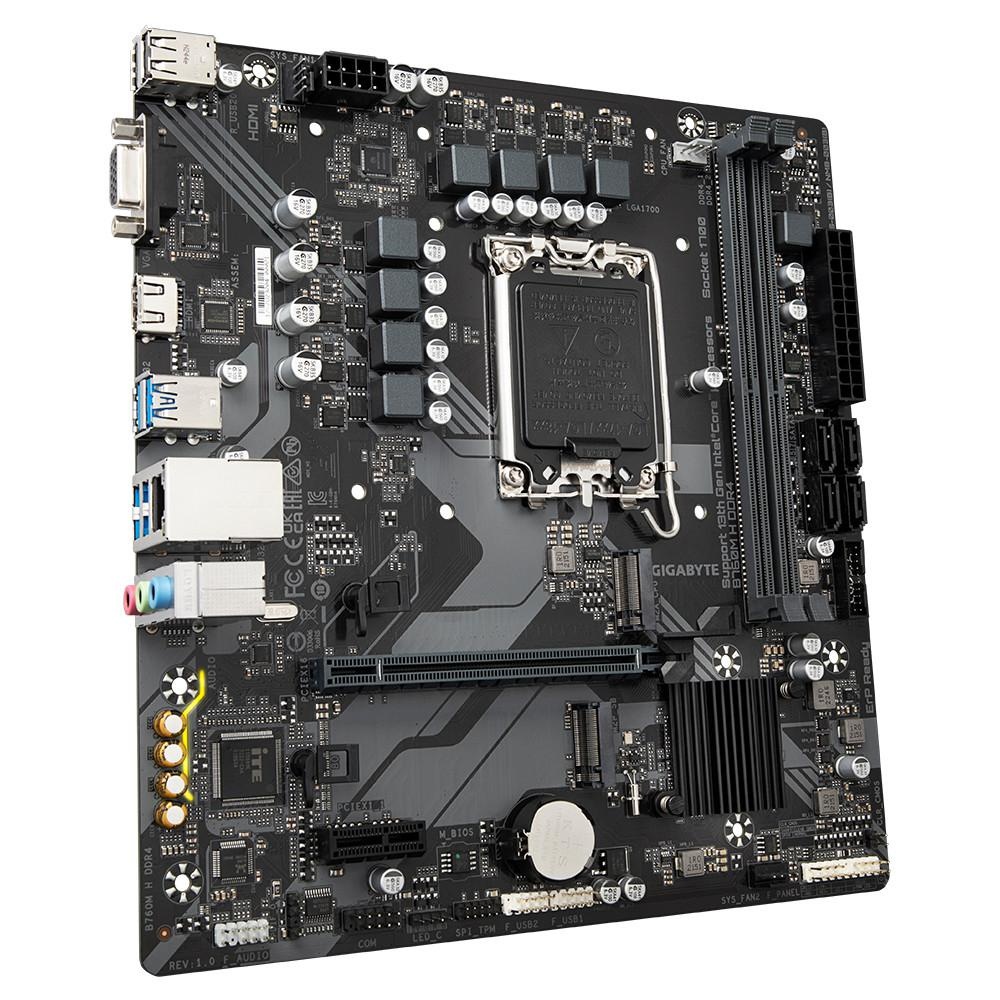

Placa de baza Gigabyte B760M H, Socket 1700, DDR4, Micro-ATX
418,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de baza Gigabyte B760M H LGA1700, 2x DDR4, 1x D-Sub, 1x HDMI, 1x PCIe x16, 1x PCIe x1, 2x M.2, 4x SATA 6Gbps, 1Gbps LAN, mATX
Detalii
SKU
B760M H DDR4
EAN
4719331854645
Categorii
Brand
PCI
0
PCI-Ex16
1
Serial-or-Paralel
No/No
USB3
4-8
PCI-Ex1
1
Wi-Fi
No
Onboard-CPU
No
Component for
PC
Depth
215 mm
Memory channels
Dual-channel
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
Processor manufacturer
Intel
Windows operating systems supported
Windows 10, Windows 11
Country of origin
China
DisplayPort version
1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
HDMI version
1.4
DisplayPorts quantity
1
PCI Express x16 (Gen 4.x) slots
1
Maximum internal memory
64 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
2
Products per shipping (inner) case
1 pc(s)
Batteries included
Yes
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Product colour
Brown
Power source type
ATX
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
Parallel processing technology support
Not supported
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
Serial port headers
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Memory slots type
DIMM
ECC сompatibility
Non-ECC
Ethernet interface type
Gigabit Ethernet
Warranty period
3 year(s)
DVI-D ports quantity
0
Number of HDDs supported
4
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
Height
35 mm
BIOS memory size
128 Mbit
Number of M.2 (M) slots
2
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of memory slots
2
Package depth
265 mm
Package height
54 mm
Package width
265 mm
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
Number of storage drives supported
6
RAID levels
0, 1, 5, 10
Width
230 mm
MB-Socket
1700
MB-Format
micro-ATX
RAM-Slots
2
Supported memory types
DDR4-SDRAM
Supported memory clock speed (max)
3200 MHz
Compatible processor series
Intel Celeron, Intel Pentium Gold
Maximum number of SMP processors
1
Total number of SATA connectors
4
Motherboard chipset
Intel B760 Express
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Supported memory clock speeds
2133,2400,2666,2933,3000,3200 MHz
Maximum internal memory supported by processor
64 GB
DirectX version
12.1
Package weight
825 g
