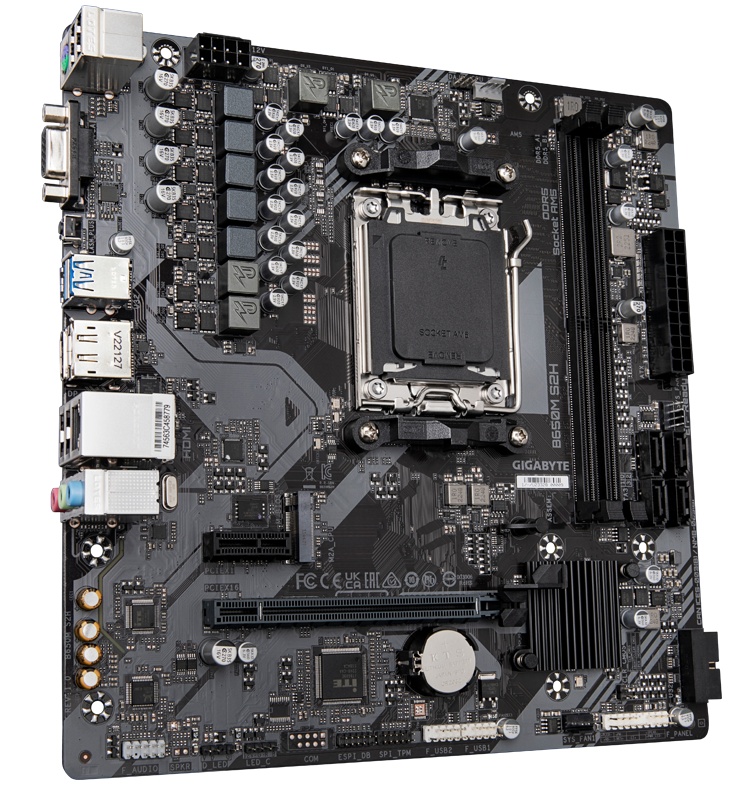

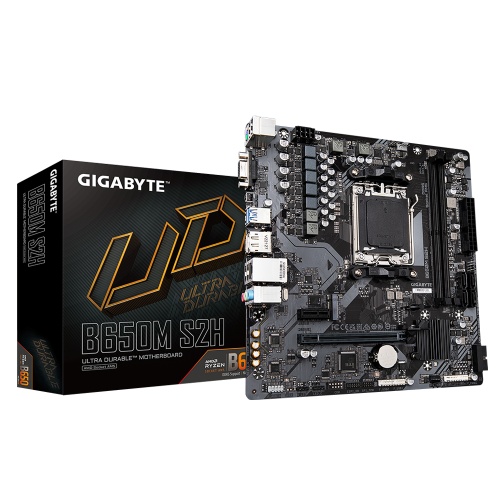

Placa de bază Gigabyte B650M S2H AM5

470,00 RON (TVA inclus)
Costurile de livrare nu sunt incluse
Cod produs - SKU B650M S2H
EAN 4719331856298
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0773885089
Trimite-ne un mesaj

Descriere

Placa de Baza GIGABYTE B650M S2H 1.0 AM5, 2x DDR5, 1x D-Sub 1x DP 1x HDMI, 1x PCIE 16x 1x PCIE x1, 1x M.2, 4x SATA 6GB/s

Detalii

SKU
B650M S2H
EAN
4719331856298
Categorii
Placi de baza
Brand
GIGABYTE
PCI
0
Serial-or-Paralel
No/No
Wi-Fi
No
Onboard-CPU
No
Component for
PC
Maximum internal memory
128 GB
Memory channels
Dual-channel
Ethernet LAN
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
HDMI version
2.1
Processor manufacturer
AMD
Country of origin
China
Line-in
Yes
DisplayPort version
1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Headphone outputs
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
DisplayPorts quantity
1
PCI Express x16 (Gen 4.x) slots
1
PCI Express x1 (Gen 3.x) slots
1
USB 2.0 ports quantity
4
VGA (D-Sub) ports quantity
1
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Product colour
Brown
Motherboard chipset
AMD B650
Power source type
ATX
Motherboard chipset family
AMD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
HDCP
Yes
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
Bundled software
Norton Internet Security (OEM version) LAN bandwidth management software
Screws included
Yes
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Microphone in
Yes
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
RAID levels
0, 1, 10
Height
35 mm
1st M.2 highest PCI Express generation
4.0
Motherboard form factor
micro ATX
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of chassis fan connectors
2
Number of CPU fan connectors
1
Number of memory slots
2
Package depth
265 mm
Package height
54 mm
Package width
265 mm
Width
230 mm
Number of M.2 (M) slots
1
Number of RGB LED pin headers
2
Supported memory clock speed (max)
6400 MHz
PS/2 ports quantity
1
Number of storage drives supported
5
PC health monitoring
Fan, Temperature, Voltage
Discrete graphics support
Yes
Depth
225 mm
Supported memory clock speeds
4400,4800,5200,5600,6000,6200,6400 MHz
1st M.2 largest key size
2580
Package weight
917 g
