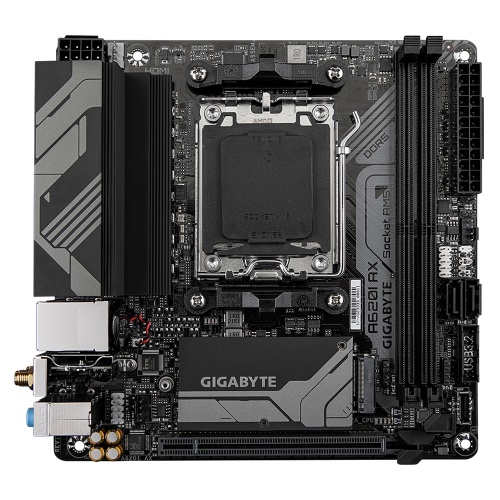

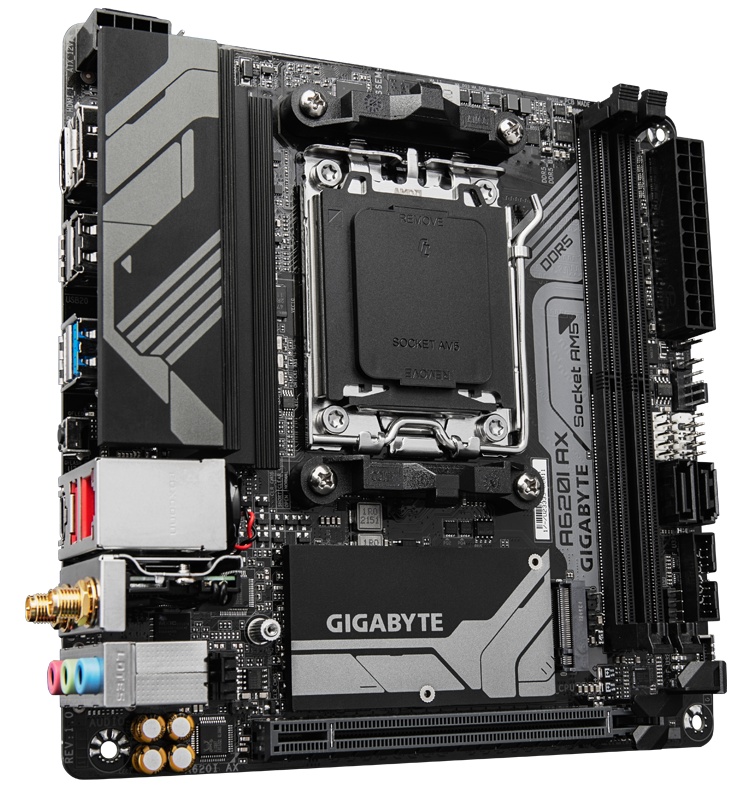

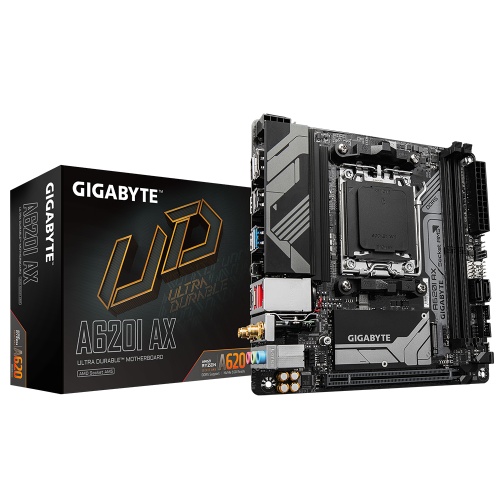

Placa de bază Gigabyte A620I AX AM5

693,00 RON (TVA inclus)
Costurile de livrare nu sunt incluse
Cod produs - SKU A620I AX
EAN 4719331855826
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0773885089
Trimite-ne un mesaj

Descriere

MB GIGABYTE A620I AX (rev. 1.0) AM5, 2xDDR5, 1x Display Port, 1x HDMI, mini-ITX https://www.gigabyte.com/Motherboard/A620I-AX-rev-10/sp#sp

Detalii

SKU
A620I AX
EAN
4719331855826
Categorii
Placi de baza
Brand
GIGABYTE
PCI
0
Serial-or-Paralel
No/No
Wi-Fi
Yes
Onboard-CPU
No
Component for
PC
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
Memory channels
Dual-channel
Ethernet LAN
Yes
HDMI ports quantity
1
HDMI version
2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Processor manufacturer
AMD
Country of origin
China
Package width
222 mm
Depth
170 mm
WLAN controller model
Realtek RTL8852CE
Package depth
180 mm
USB 2.0 ports quantity
3
DisplayPort version
1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
DisplayPorts quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Total number of SATA connectors
2
Number of SATA III connectors
2
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Product colour
Brown
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Motherboard chipset family
AMD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
HDCP
Yes
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
ECC сompatibility
Non-ECC
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
WiFi-AP antenna jack
2
Microphone in
Yes
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
Height
35 mm
Number of memory slots
2
Number of M.2 (M) slots
1
USB 2.0 connectors
1
Supported memory clock speed (max)
6400 MHz
Ethernet interface type
2.5 Gigabit Ethernet
Chassis intrusion connector
Yes
Cables included
SATA
RAID levels
0, 1
Bundled software
Norton Internet Security
USB connector type
USB Type-A, USB Type-C
Number of HDDs supported
2
Headphone outputs
3
Maximum internal memory
96 GB
Compatible processor series
AMD Ryzen 7000 Series
Maximum internal memory supported by processor
96 GB
PCI Express x16 slots
1
Motherboard form factor
mini ITX
Audio connector
Yes
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Width
170 mm
Motherboard chipset
AMD A620
Supported memory clock speeds
4400,4800,5200,5600,6000,6200,6400 MHz
Package height
65 mm
Number of storage drives supported
3
Package weight
860 g
