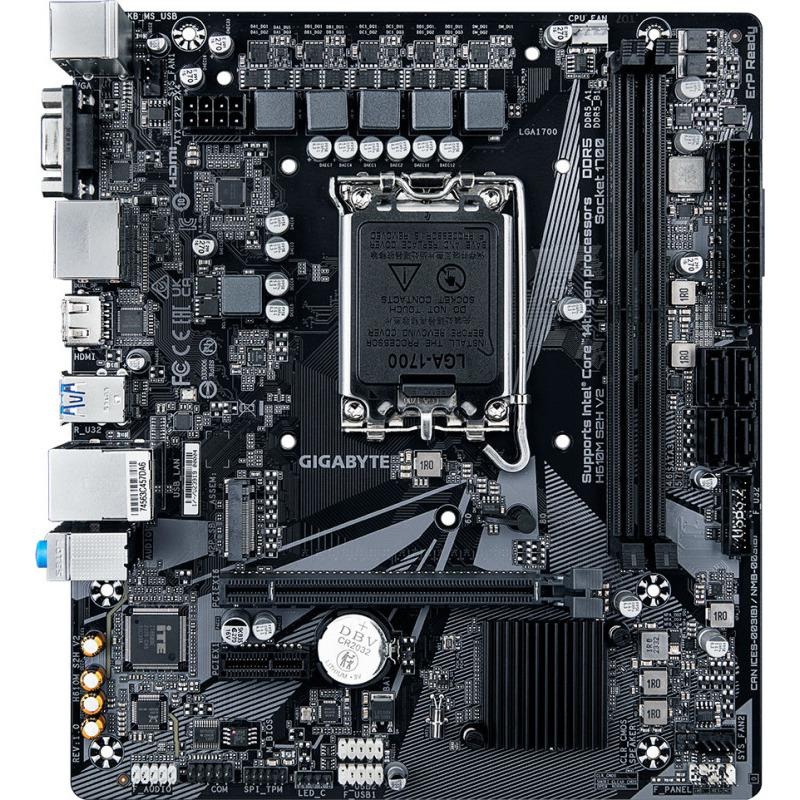

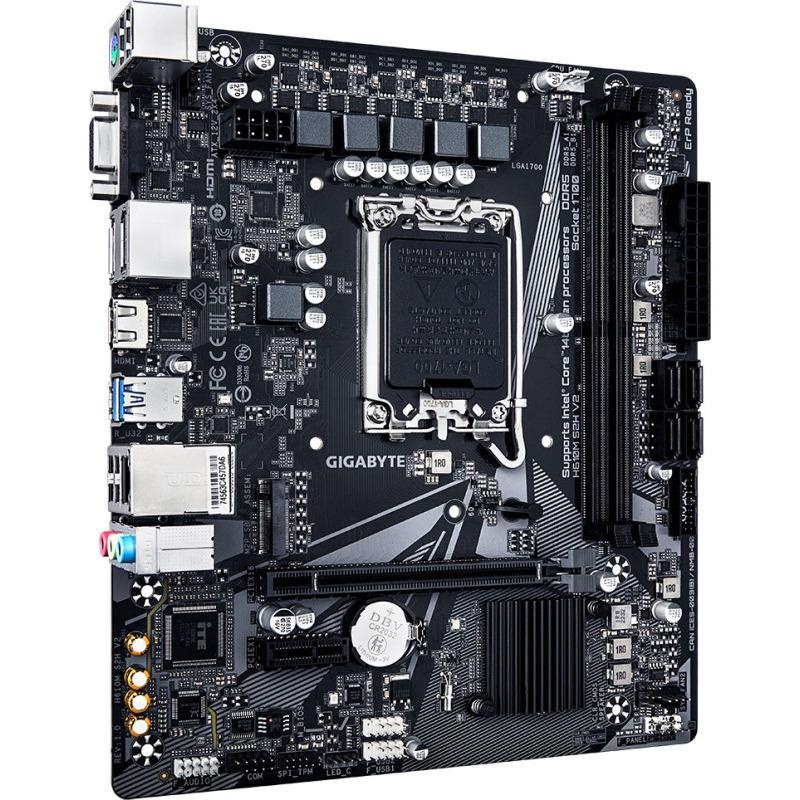

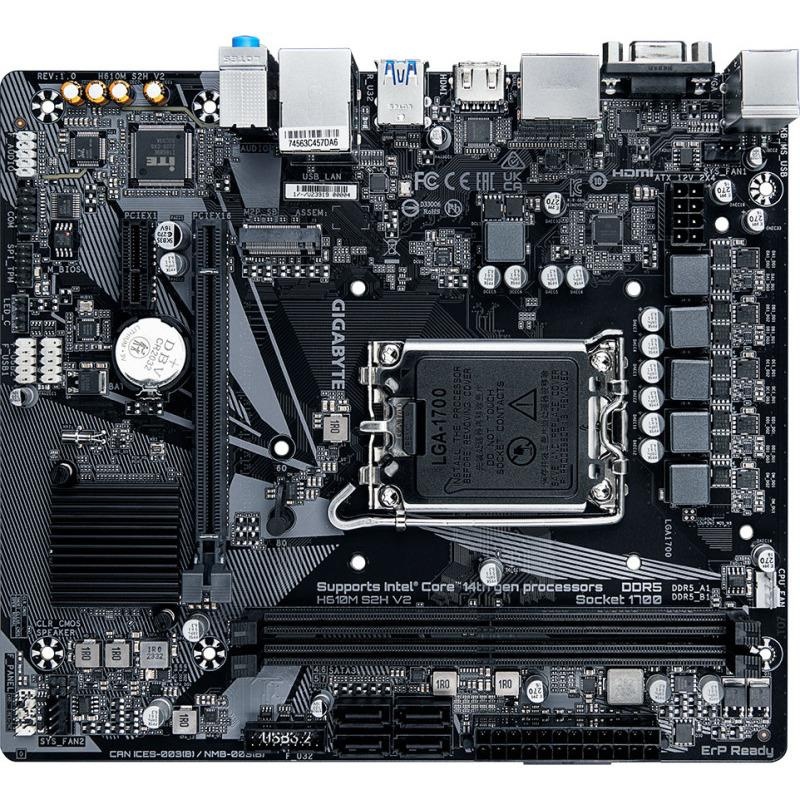

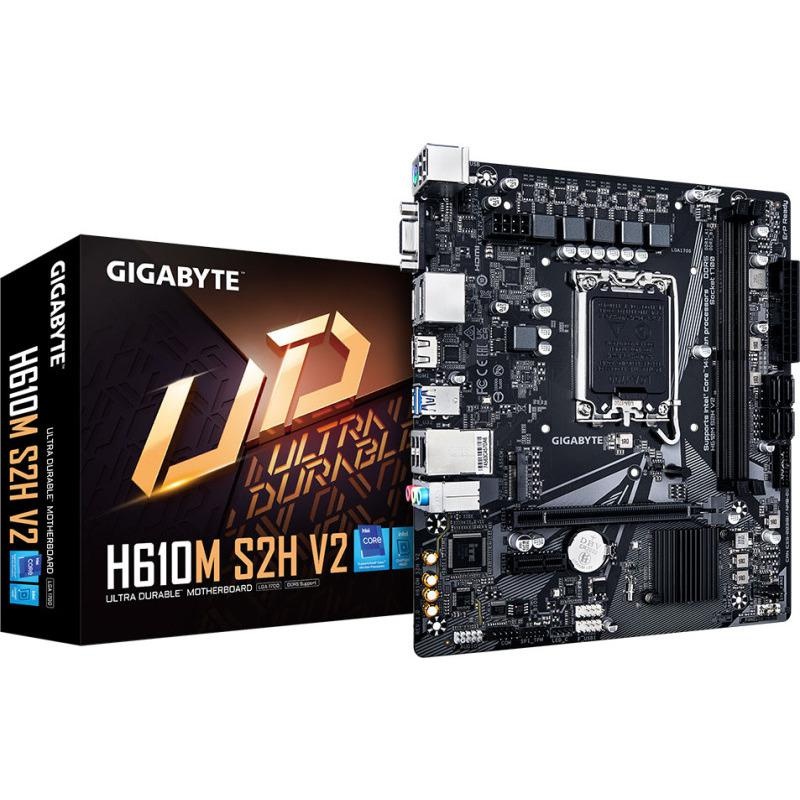

Placa de baza GIGABYTE H610M S2H V2 LGA170
308,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere

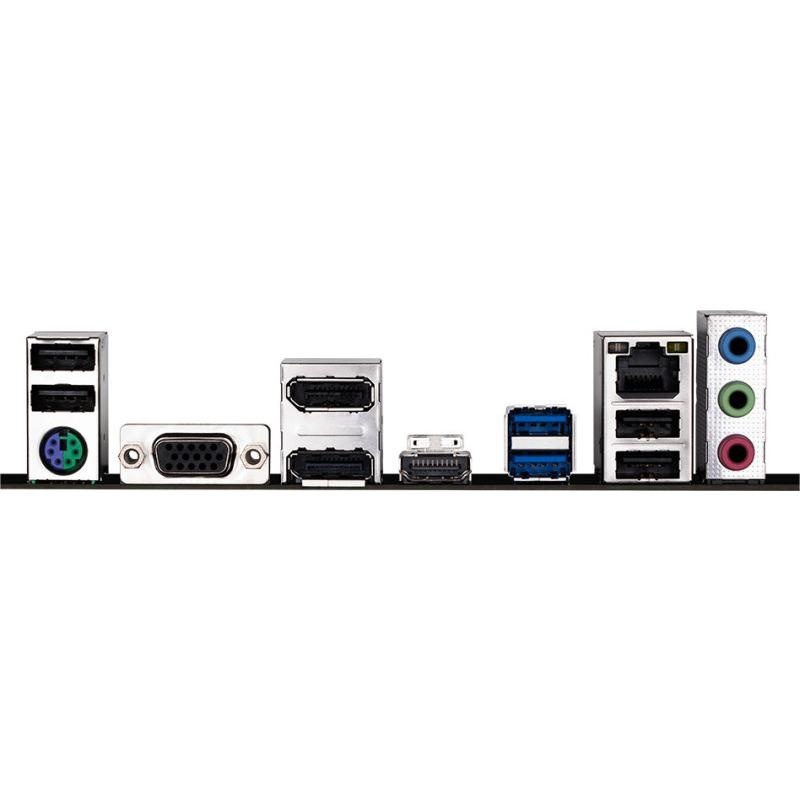

Placa de baza GIGABYTE H610M S2H V2 LGA1700 2x DDR5, 1x PCIE x16 1x PCIE x1, 1x M.2, 1x D-sub 1x HDMI 2x DP, 4x SATA 6GB/s, mATX
Detalii
SKU
H610M S2H V2
EAN
4719331859817
Categorii
Brand
Serial-or-Paralel
No/No
Wi-Fi
No
Onboard-CPU
No
Component for
PC
Depth
215 mm
On-board graphics card
Yes
Memory channels
Dual-channel
Ethernet LAN
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
Processor manufacturer
Intel
Country of origin
China
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Headphone outputs
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
DisplayPorts quantity
1
USB 2.0 ports quantity
4
VGA (D-Sub) ports quantity
1
Package depth
235 mm
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
HDCP
Yes
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
Serial port headers
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Ethernet interface type
Gigabit Ethernet
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Microphone in
Yes
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Height
35 mm
BIOS memory size
128 Mbit
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of chassis fan connectors
2
Number of memory slots
2
ECC сompatibility
ECC & Non-ECC
Package width
265 mm
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
Width
230 mm
Number of M.2 (M) slots
1
PS/2 ports quantity
1
Maximum number of SMP processors
1
Number of COM connectors
1
Cables included
SATA
Cooling type
Active
Maximum resolution
4096 x 2304 pixels
Supported memory clock speed (max)
5600 MHz
DVI-D ports quantity
1
Maximum internal memory
96 GB
Maximum internal memory supported by processor
96 GB
Supported storage drive interfaces
M.2, SATA
PCI Express x16 slots
1
PCI Express x1 slots
1
Motherboard chipset
Intel H610 Express
Graphics card
HD Graphics
Graphics card family
Intel
Package height
52 mm
Number of storage drives supported
1
PC health monitoring
Fan, LED, Temperature, Voltage, Water cooling
On-board graphics card model
Intel HD Graphics
Supported memory clock speeds
5600, 5200, 4800, 4400 MHz
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 32GB, 48GB
Supported DIMM module capacities
8GB, 16GB
Package weight
690 g
