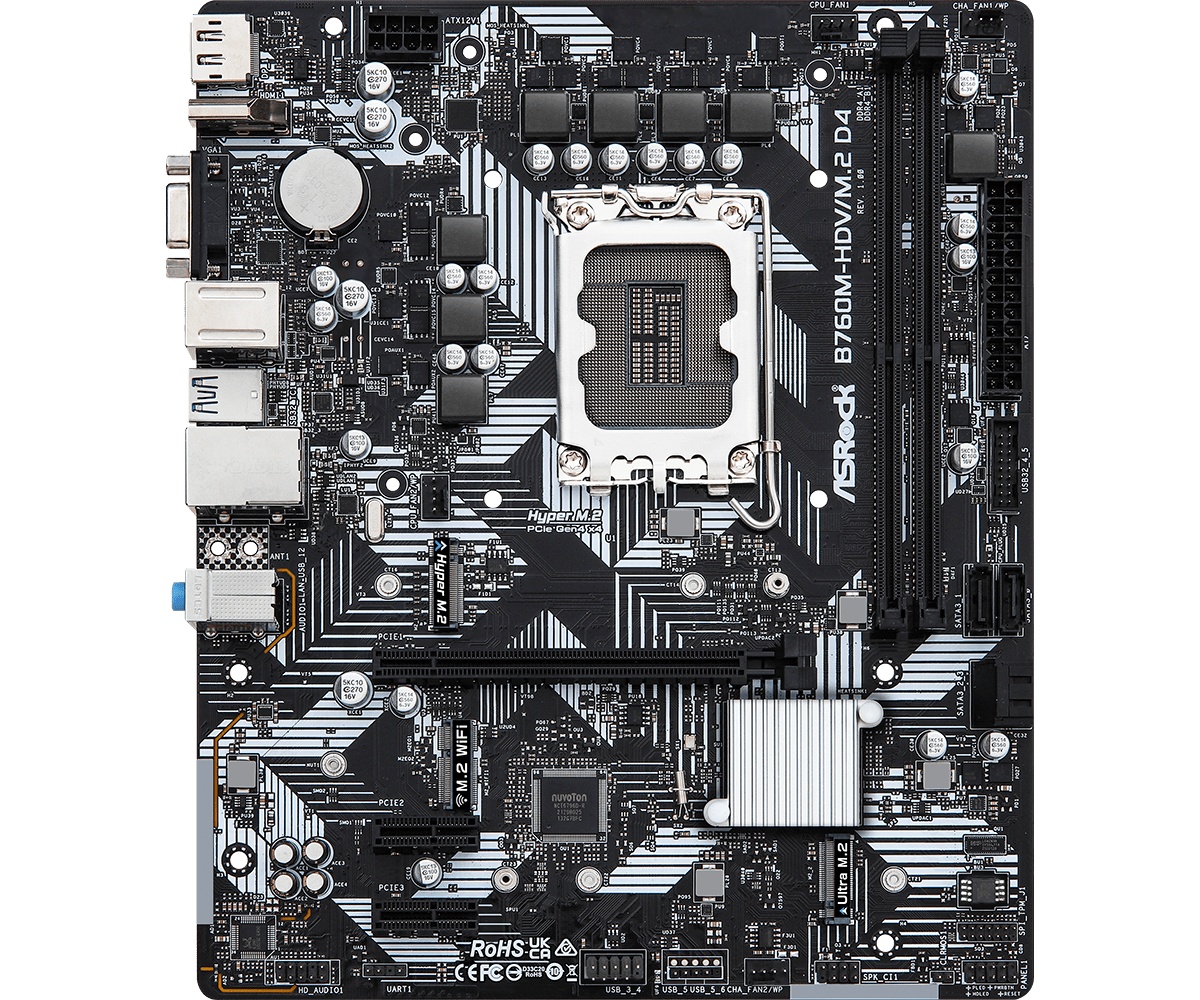

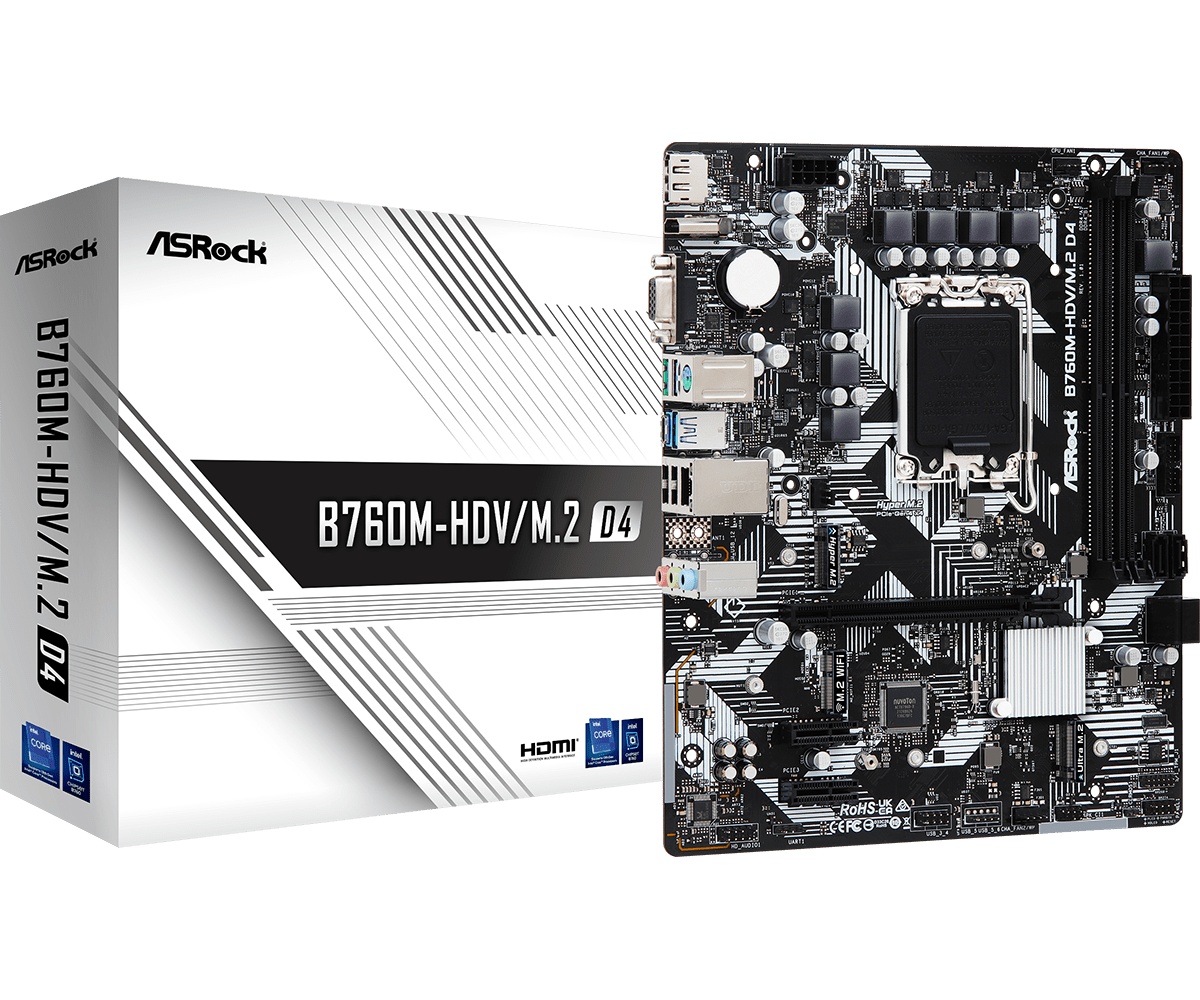

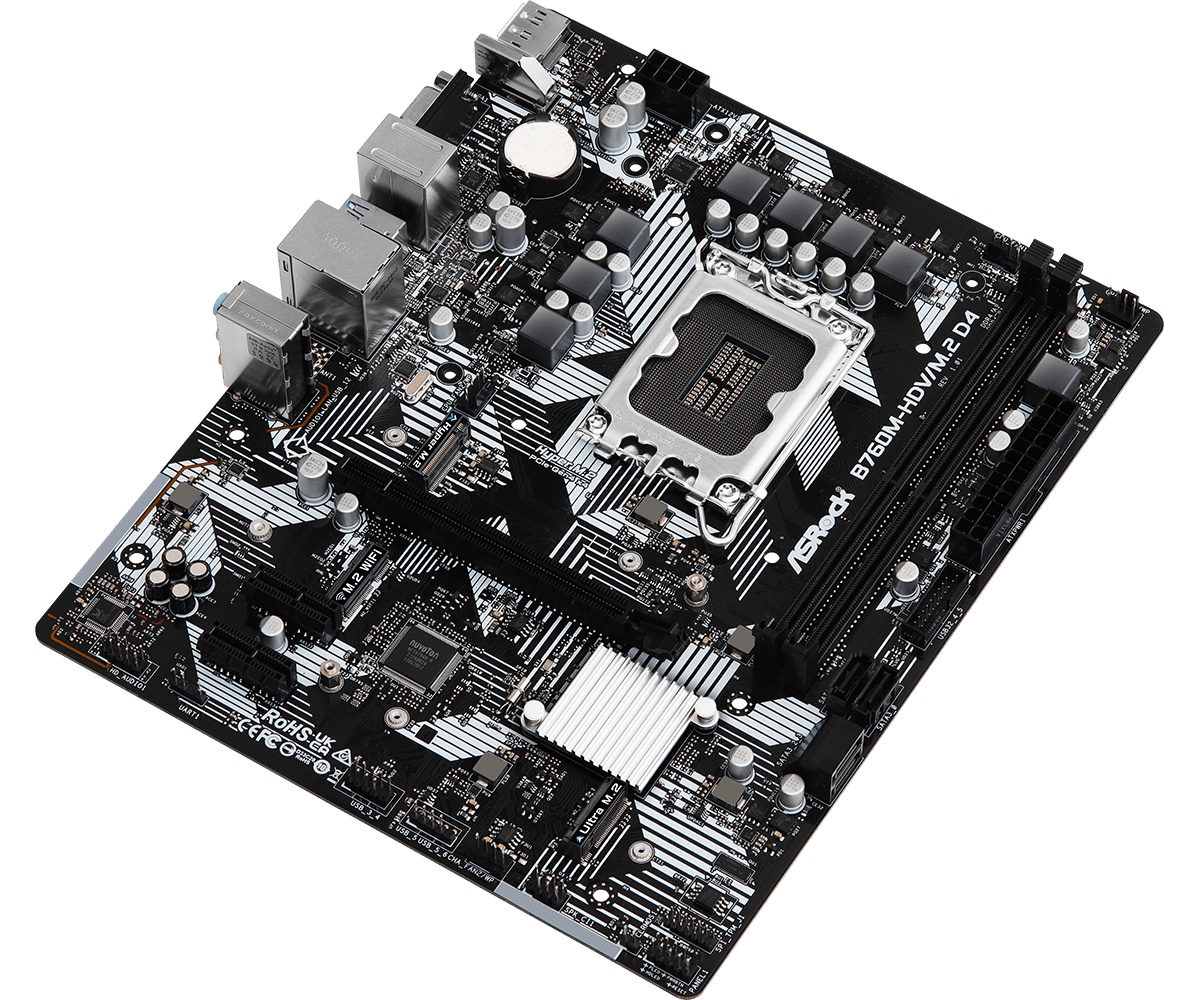

Placa de bază ASRock B760M-HDV/M.2 DDR4 LGA1700
415,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de baza Asrock B760M-HDV/M.2 DDR4, 2x DDR4, frecventa maxima 5333MHz, 1x DisplayPort, 1x HDMI, 1x PCIe x16, 2x PCIe x1, 2x M.2, 4x SATA3 6Gbs, LAN 1Gbps, microATX
Detalii
SKU
B760M-HDV/M.2 D4
EAN
4710483942020
Categorii
Brand
PCI
0
Serial-or-Paralel
No/No
Wi-Fi
No
Onboard-CPU
No
Component for
PC
Memory channels
Dual-channel
Ethernet LAN
Yes
HDMI ports quantity
1
Processor manufacturer
Intel
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
PCI Express x1 (Gen 3.x) slots
2
Line-in
Yes
DisplayPort version
1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
DisplayPorts quantity
1
PCI Express x16 (Gen 4.x) slots
1
Maximum internal memory
64 GB
VGA (D-Sub) ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 2.0 ports quantity
2
BIOS type
UEFI AMI
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
HDCP
Yes
Parallel processing technology support
Not supported
Front panel connector
Yes
TPM connector
Yes
USB 2.0 connectors
3
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
ECC сompatibility
Non-ECC
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
DVI-D ports quantity
0
Microphone in
Yes
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
BIOS memory size
128 Mbit
Motherboard chipset
Intel B760
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
Number of memory slots
2
Processor socket
LGA 1700
RAID levels
0, 1, 5, 10
Number of M.2 (M) slots
1
PS/2 ports quantity
1
Width
244 mm
Supported memory types
DDR4-SDRAM
Maximum number of SMP processors
1
Chassis intrusion connector
Yes
Cables included
SATA
Certification
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Depth
201 mm
Compatible processor series
Intel Core™ i3, Intel Core™ i5, Intel Core™ i7, Intel Core™ i9
Windows operating systems supported
Windows 10 Education x64, Windows 11 x64
Supported memory clock speeds
3200,4400,5333 MHz
