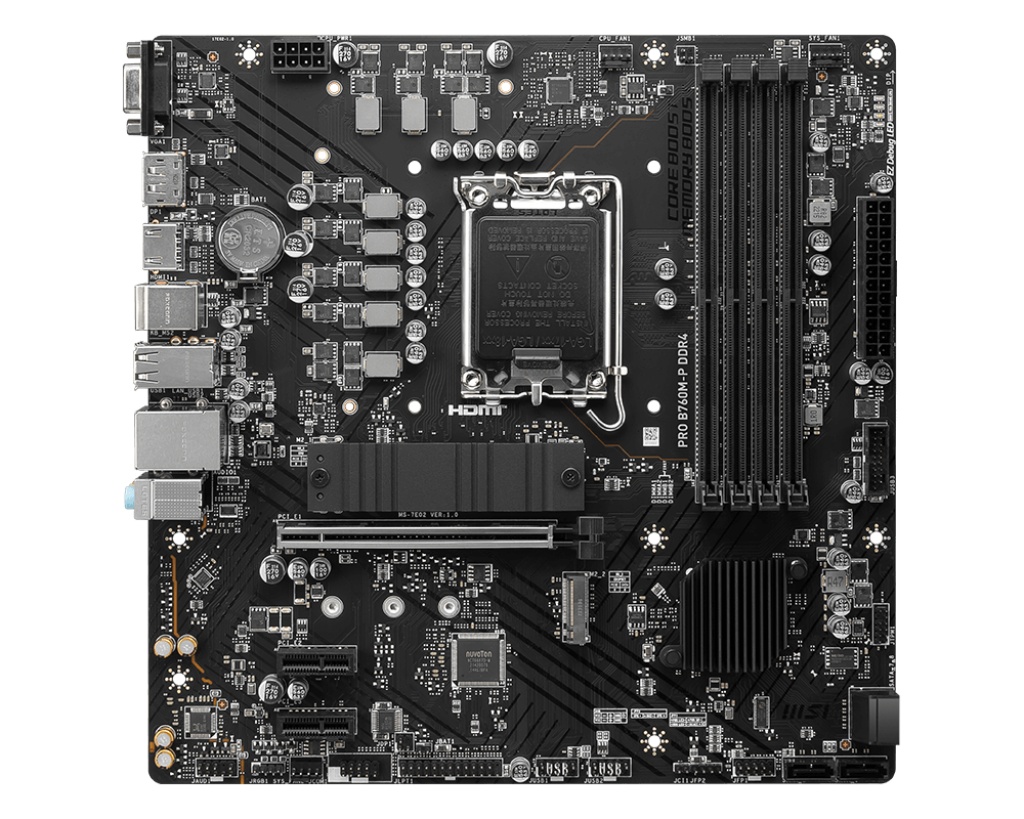

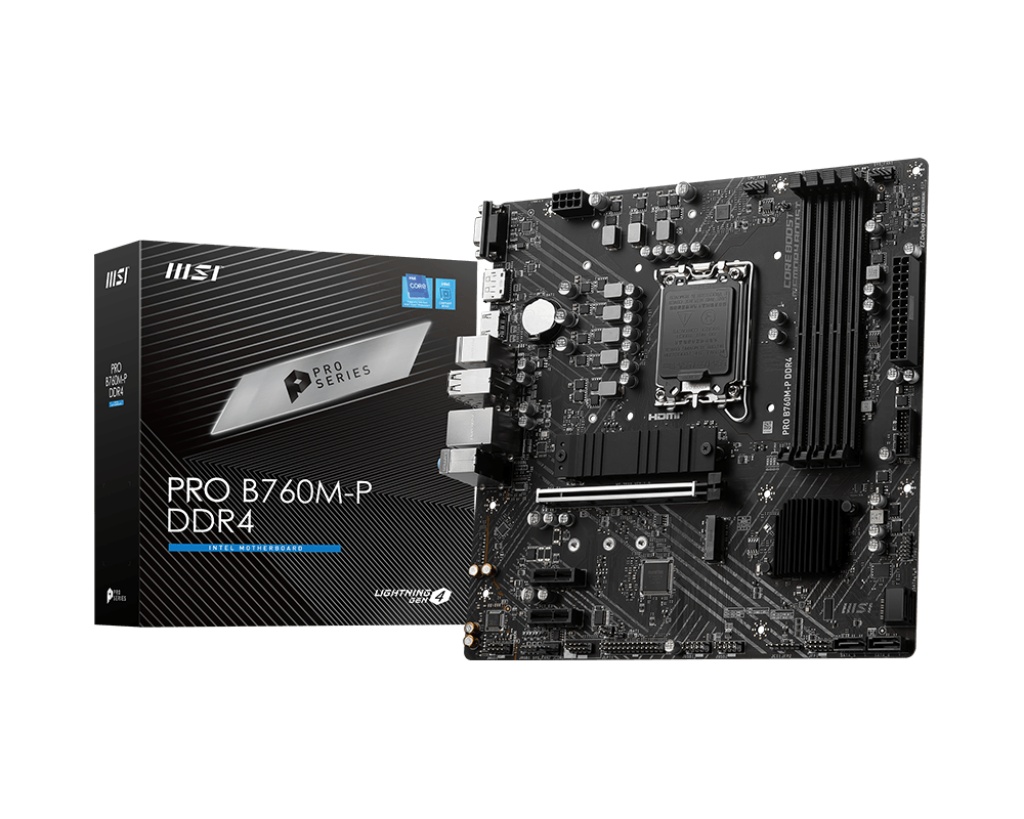

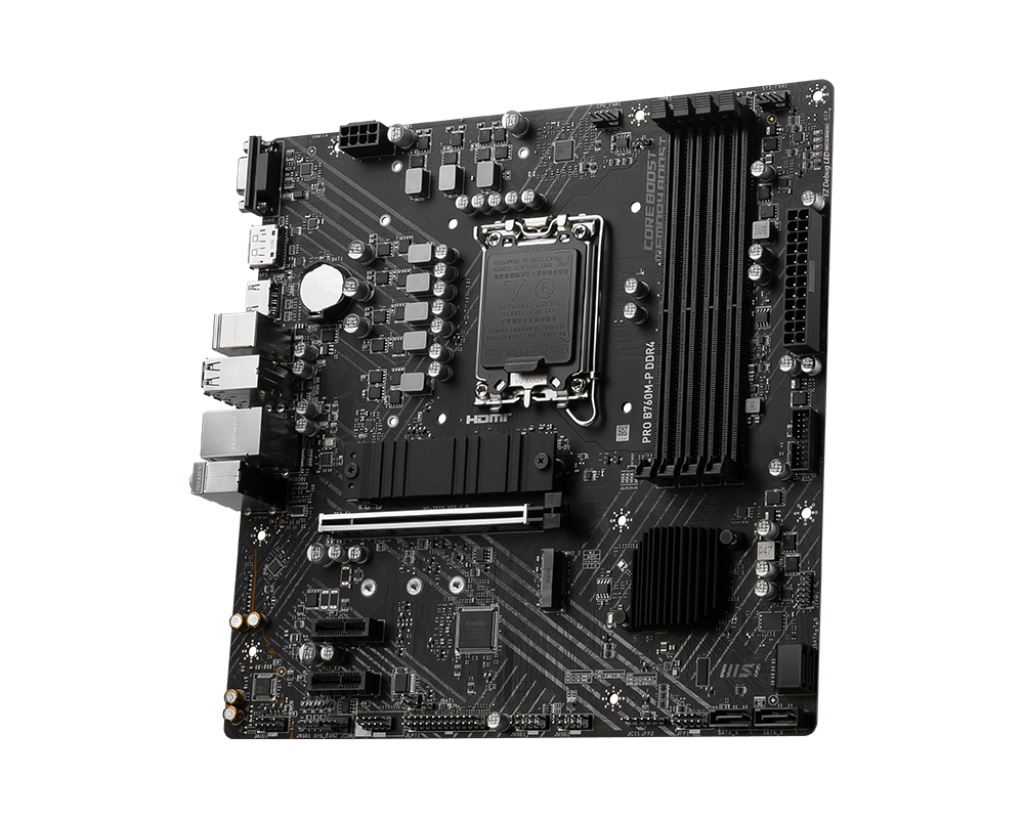

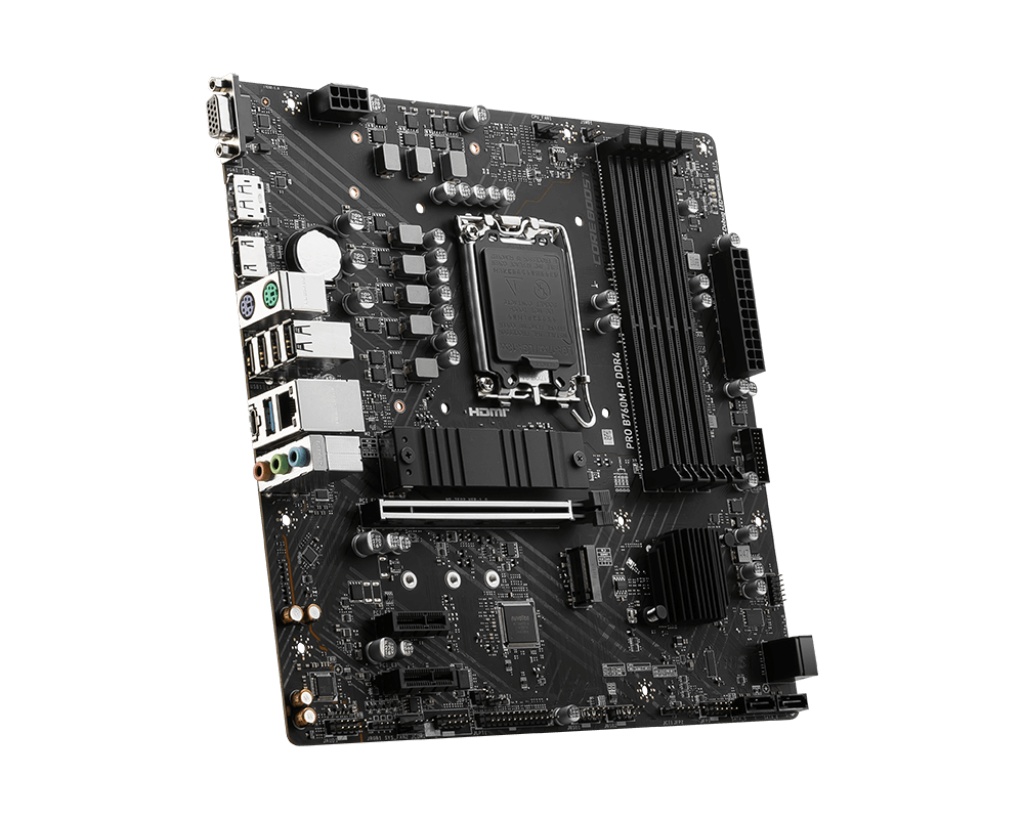

Placa de baza MSI PRO B760M-P DDR4, Socket 1700, DDR4, Micro-ATX

467,00 RON (TVA inclus)
Costurile de livrare nu sunt incluse
Cod produs - SKU PRO B760M-P DDR4
EAN 4711377030991
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0773885089
Trimite-ne un mesaj

Descriere

Placa de baza MSI PRO B760M-P DDR4 LGA1700 SPECIFICATIONS Model Name PRO B760M-P DDR4 CPU Support Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® B760 Chipset Expansion Slots 1x PCIe 4.0 x16 slot 2x PCIe 4.0 x1 slots Display Interface Support 4K@30Hz as specified in HDMI™ 1.4, DisplayPort 1.4, VGA – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR4-4800+MHz(OC) Storage 2x M.2 Gen4 x4 64Gbps slots, 4x SATA 6Gbps ports USB ports 1x USB 3.2 Gen 2 10Gbps (1 Type-C), 3x USB 3.2 Gen 1 5Gbps (3 Type-A), 8x USB 2.0 LAN Realtek® RTL8111H Gigabit LAN Audio 8-Channel (7.1) HD Audio with Audio Boost

Detalii

SKU
PRO B760M-P DDR4
EAN
4711377030991
Categorii
Placi de baza
Brand
MSI
PCI
0
Serial-or-Paralel
No/No
Wi-Fi
No
Onboard-CPU
No
Component for
PC
Maximum internal memory
128 GB
Memory channels
Dual-channel
Ethernet LAN
Yes
HDMI ports quantity
1
Processor manufacturer
Intel
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
Windows operating systems supported
Windows 10, Windows 11
PCI Express x1 (Gen 3.x) slots
2
DisplayPort version
1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
HDMI version
1.4
DisplayPorts quantity
1
USB 2.0 ports quantity
4
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Power source type
ATX
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of memory slots
4
Memory slots type
DIMM
ECC сompatibility
Non-ECC
DVI-D ports quantity
0
VGA (D-Sub) ports quantity
0
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
Number of M.2 (M) slots
2
Motherboard chipset
Intel B760
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
RAID levels
0, 1, 5, 10
Supported memory types
DDR4-SDRAM
System Management BIOS (SMBIOS) version
3.5
USB 2.0 connectors
4
Ethernet interface type
2.5 Gigabit Ethernet
Compatible processor series
Intel Celeron, Intel Pentium Gold
Maximum number of SMP processors
1
Depth
243.8 mm
Width
243.8 mm
On-board graphics card
No
Number of SATA II connectors
0
Number of SATA connectors
0
mSATA ports quantity
0
PCI Express x16 slots
2
Supported memory clock speed (max)
4800 MHz
