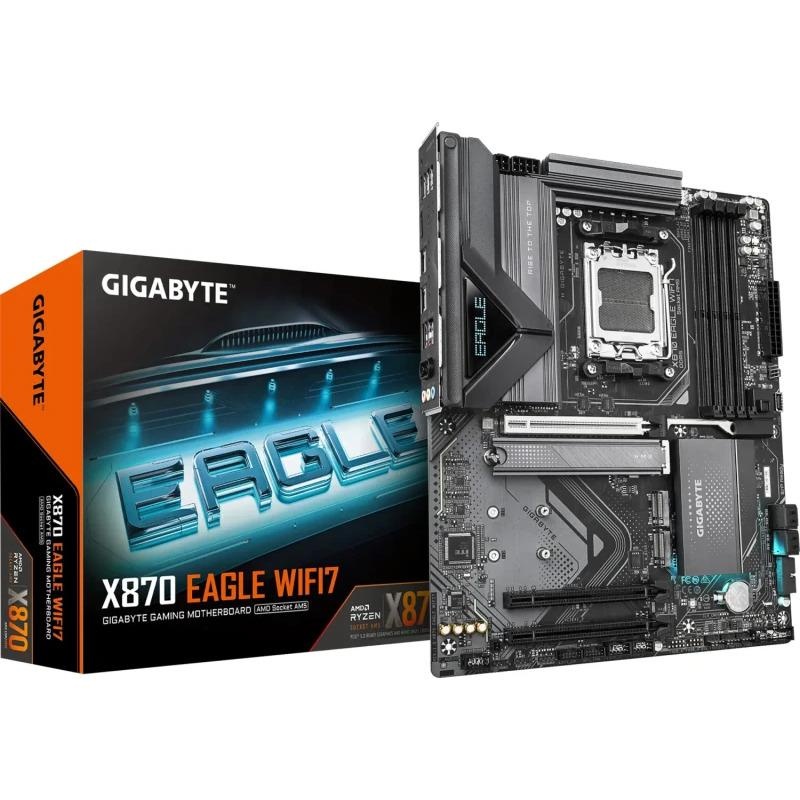

• Placa de Baza GIGABYTE X870 EAGLE WIFI7 AM5 - Img 1

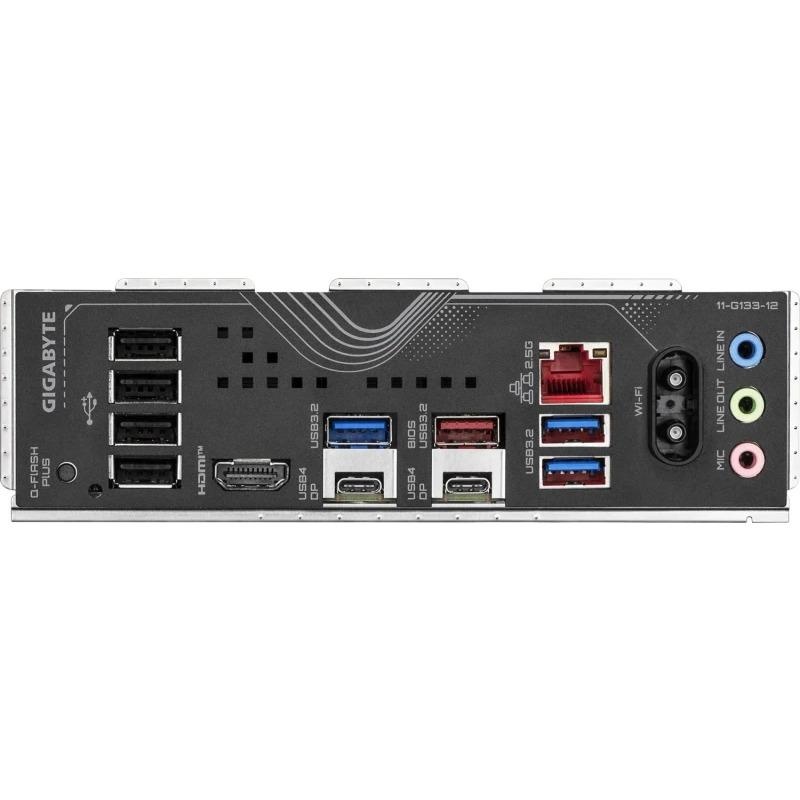

  • Placa de Baza GIGABYTE X870 EAGLE WIFI7 AM5 - Img 2

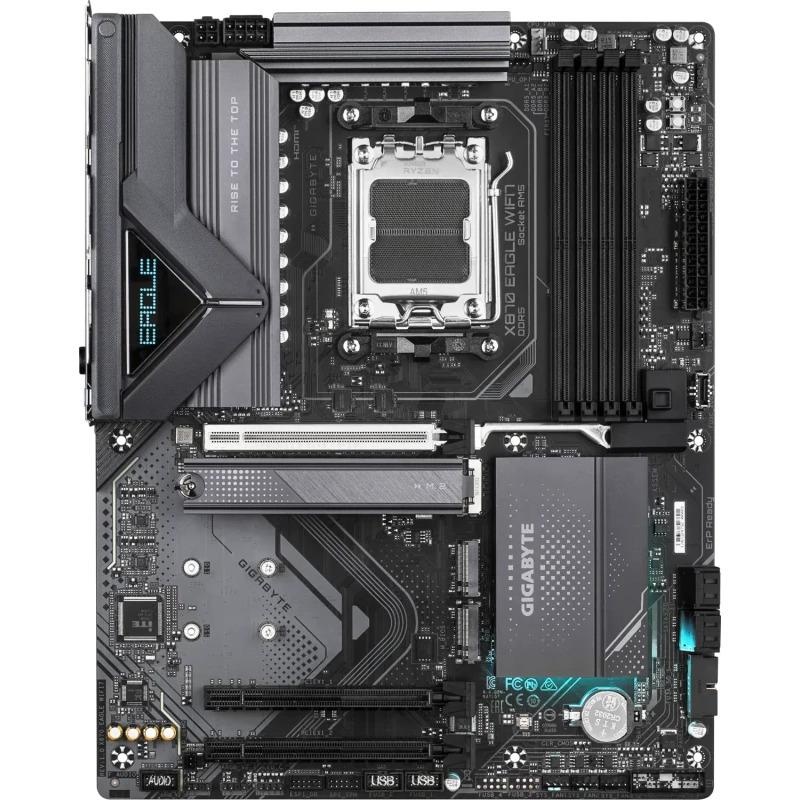

  • Placa de Baza GIGABYTE X870 EAGLE WIFI7 AM5 - Img 3

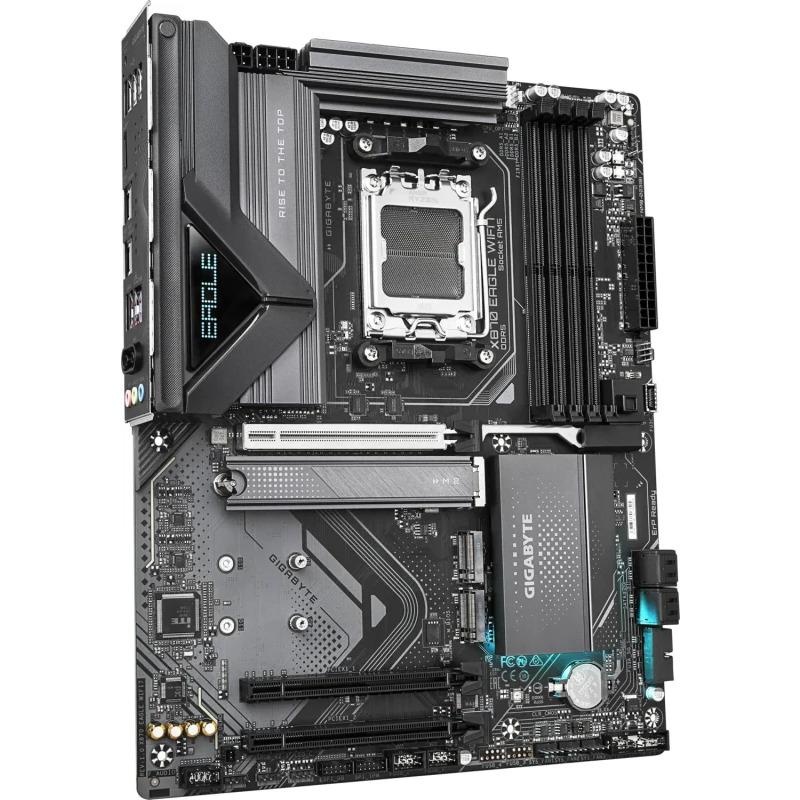

  • Placa de Baza GIGABYTE X870 EAGLE WIFI7 AM5 - Img 4

Placa de Baza GIGABYTE X870 EAGLE WIFI7 AM5

1.137,00 RON (TVA inclus)
Costurile de livrare nu sunt incluse
Cod produs - SKU X870 EAGLE WIFI7
EAN 4719331864996
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0773885089
Trimite-ne un mesaj

Descriere

Placa de Baza GIGABYTE X870 EAGLE WIFI7 AM5, 4x DDR5, 2x USB4 1x HDMI, 3x PCIE x16, 3x M.2, 4x SATA 6GB/s, ATX

Detalii

SKU
X870 EAGLE WIFI7
EAN
4719331864996
Categorii
Placi de baza
Brand
GIGABYTE
PCI
0
Serial-or-Paralel
Yes/No
Wi-Fi
Yes
Onboard-CPU
No
Component for
PC
Memory channels
Dual-channel
Ethernet LAN
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
HDMI ports quantity
1
HDMI version
2.1
Processor manufacturer
AMD
Country of origin
China
PCI Express x16 (Gen 5.x) slots
1
DisplayPort version
1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Headphone outputs
1
USB 3.2 Gen 2x2 Type-C ports quantity
0
USB4 Gen 3x2 ports quantity
0
DisplayPorts quantity
0
Weight
1.74 kg
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Number of M.2 (M) slots
3
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 highest PCI Express generation
4.0
3rd M.2 highest PCI Express generation
4.0
PCI Express x16 (Gen 3.x) slots
2
Motherboard form factor
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
RGB LED pin header
Yes
Number of RGB LED pin headers
4
12V power connector
Yes
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Bundled software
Norton Internet Security (OEM version) LAN bandwidth management software
Antenna included
Yes
Screws included
Yes
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
7
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
RAID levels
0, 1, 10
Width
305 mm
Depth
244 mm
Height
35 mm
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of water pump connectors
1
Ethernet interface type
2.5 Gigabit Ethernet
Number of chassis fan connectors
4
On-board graphics card
No
mSATA ports quantity
0
Windows operating systems supported
Windows 11 x64
Supported memory clock speed (max)
8200 MHz
Maximum internal memory supported by processor
256 GB
2nd M.2 largest key size
25110
Peripheral (Molex) power connectors (4-pin)
1
PC health monitoring
Fan, Temperature, Voltage
Motherboard chipset
AMD X870
USB 3.2 Gen 2x2 connectors
1
USB4 Gen 2x2 ports quantity
2
3rd M.2 largest key size
25110
LAN controller
Realtek RTL8125
PCI Express x8 (Gen 3.x) slots
0
PS/2 ports quantity
0
WLAN controller model
MediaTek MT7925
PCI Express x1 (Gen 4.x) slots
0
PCI Express x4 (Gen 4.x) slots
0
PCI Express x8 (Gen 4.x) slots
0
PCI Express x8 (Gen 5.x) slots
0
Supported memory clock speeds
4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz
PCI Express x4 (Gen 3.x) slots
0
Package weight
1.94 kg
PCI Express x16 (Gen 4.x) slots
0
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
