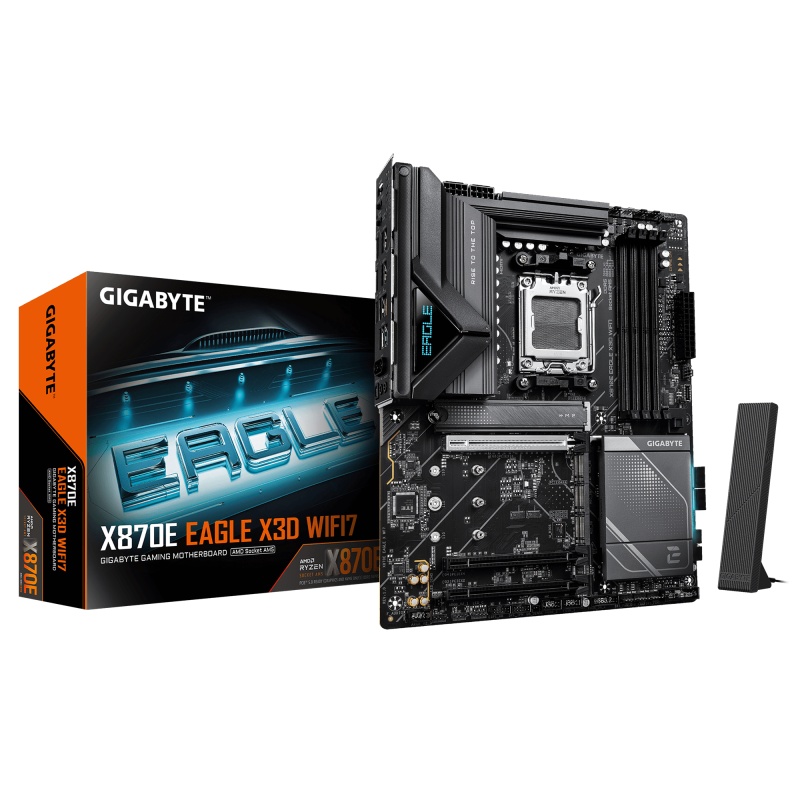

GIGABYTE X870E EAGLE X3D WIFI7. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256
1.409,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
GIGABYTE X870E EAGLE X3D WIFI7. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Detalii
SKU
X870E EAGLE X WF7
EAN
4719331879532
Categorii
Brand
Wi-Fi
Yes
Component for
PC
Bluetooth
Yes
Memory channels
Dual-channel
Ethernet LAN
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Processor manufacturer
AMD
Product colour
Black
Country of origin
China
PCI Express x16 (Gen 5.x) slots
1
Line-in
Yes
DisplayPort version
1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Headphone outputs
1
USB 2.0 ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
PCI Express x16 (Gen 4.x) slots
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Products per shipping (inner) case
1 pc(s)
Batteries included
Yes
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
Motherboard form factor
ATX
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
HDCP
Yes
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
RGB LED pin header
Yes
Number of RGB LED pin headers
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Antenna included
Yes
Screws included
Yes
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Warranty period
3 year(s)
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
RAID support
Yes
Width
305 mm
Depth
244 mm
Height
35 mm
Cooling type
Passive
USB 2.0 connectors
2
RAID levels
0, 1, 5, 10
HDCP version
2.3
Windows operating systems supported
Windows 11 x64
PCI Express x16 (Gen 3.x) slots
1
Maximum resolution
4096 x 2304 pixels
USB 3.2 Gen 2x2 connectors
1
USB4 Gen 2x2 ports quantity
2
S/PDIF out port
Yes
Number of M.2 (M) slots
4
Number of storage drives supported
8
Digital audio optical out
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
Number of chassis fan connectors
6
Motherboard chipset
AMD X870E
4th M.2 highest PCI Express generation
4.0
4th M.2 largest key size
22110
Number of EPS power connectors (8-pin)
2
LAN controller
Realtek RTL8126
Number of water pump connectors
3
Number of temperature sensor headers
2
WLAN controller model
Qualcomm QCNCM865
Battery capacity
220 mAh
Audio Chip
Realtek ALC1220-VB
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Package weight
2.21 kg
BIOS memory size
512 Mbit
PC health monitoring
CPU, Fan, Temperature, Voltage, Water cooling
Supported memory clock speed (max)
9000 MHz
Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Bundled software
Norton Internet Security (OEM version)
Supported memory clock speeds
9000,8800,8600,8400,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz
Weight
2.01 kg
