NOU

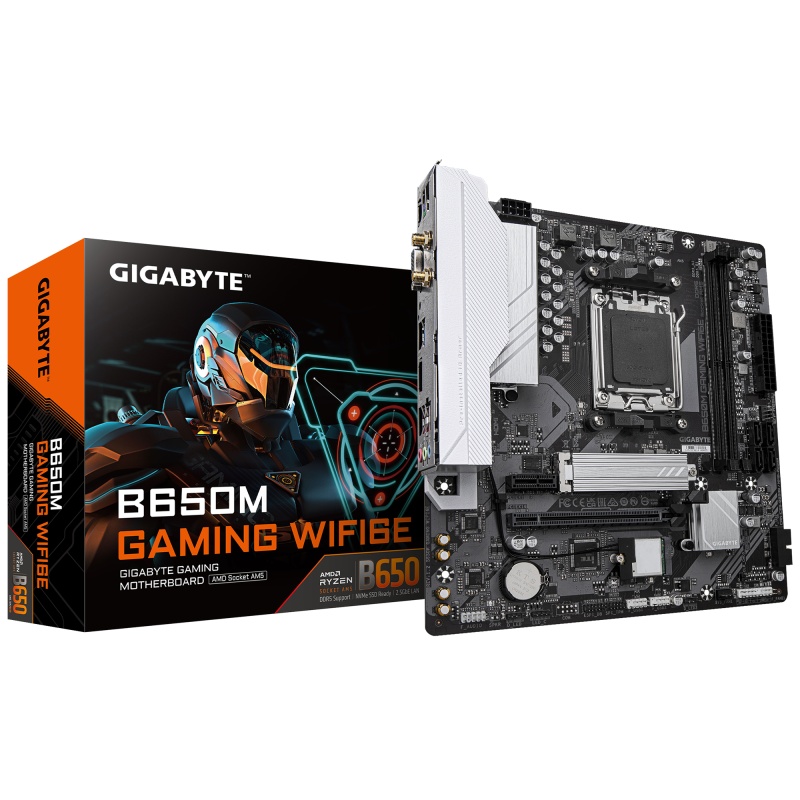

Placa de baza Gigabyte B650M GAMING WIFI6E, Socket AM5, DDR5, Micro-ATX
577,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de Baza GIGABYTE B650M GAMING WIFI6E AM5, 2x DDR5, 1x D-Sub 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 1x M.2, 4x SATA 6GB/s, mATX
Detalii
SKU
B650M GAMING WIFI6E
EAN
4719331867942
Categorii
Brand
PCI
0
PCI-Ex16
1
Serial-or-Paralel
No/No
USB3
4-8
PCI-Ex1
1
Wi-Fi
Yes
Onboard-CPU
No
Component for
PC
Bluetooth
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
Memory channels
Dual-channel
Ethernet LAN
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Processor manufacturer
AMD
Country of origin
China
WLAN controller model
Realtek RTL8852CE
Weight
720 g
Line-in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Headphone outputs
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
PCI Express x16 (Gen 4.x) slots
1
PCI Express x1 (Gen 3.x) slots
1
USB 2.0 ports quantity
4
VGA (D-Sub) ports quantity
1
Products per shipping (inner) case
1 pc(s)
Batteries included
Yes
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Motherboard chipset
AMD B650
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
HDCP
Yes
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Antenna included
Yes
Screws included
Yes
Warranty period
3 year(s)
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
Microphone in
Yes
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
RAID levels
0, 1, 10
Height
35 mm
RAM-Slots
4
MB-Socket
AM5
1st M.2 highest PCI Express generation
4.0
Motherboard form factor
micro ATX
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of chassis fan connectors
2
Number of CPU fan connectors
1
MB-Format
micro-ATX
Number of M.2 (M) slots
1
Supported memory clock speed (max)
6400 MHz
PS/2 ports quantity
1
Number of storage drives supported
5
Ethernet interface type
2.5 Gigabit Ethernet
Windows operating systems supported
Windows 10 x64, Windows 11
Package height
68 mm
Number of RGB LED pin headers
3
Package depth
268 mm
Package width
270 mm
PC health monitoring
Fan, Temperature, Voltage
Width
240 mm
Depth
225 mm
1st M.2 largest key size
2580
Supported memory clock speeds
6400,6200,6000,5600,5200,4800,4400 MHz
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Package weight
12.1 kg
