NOU

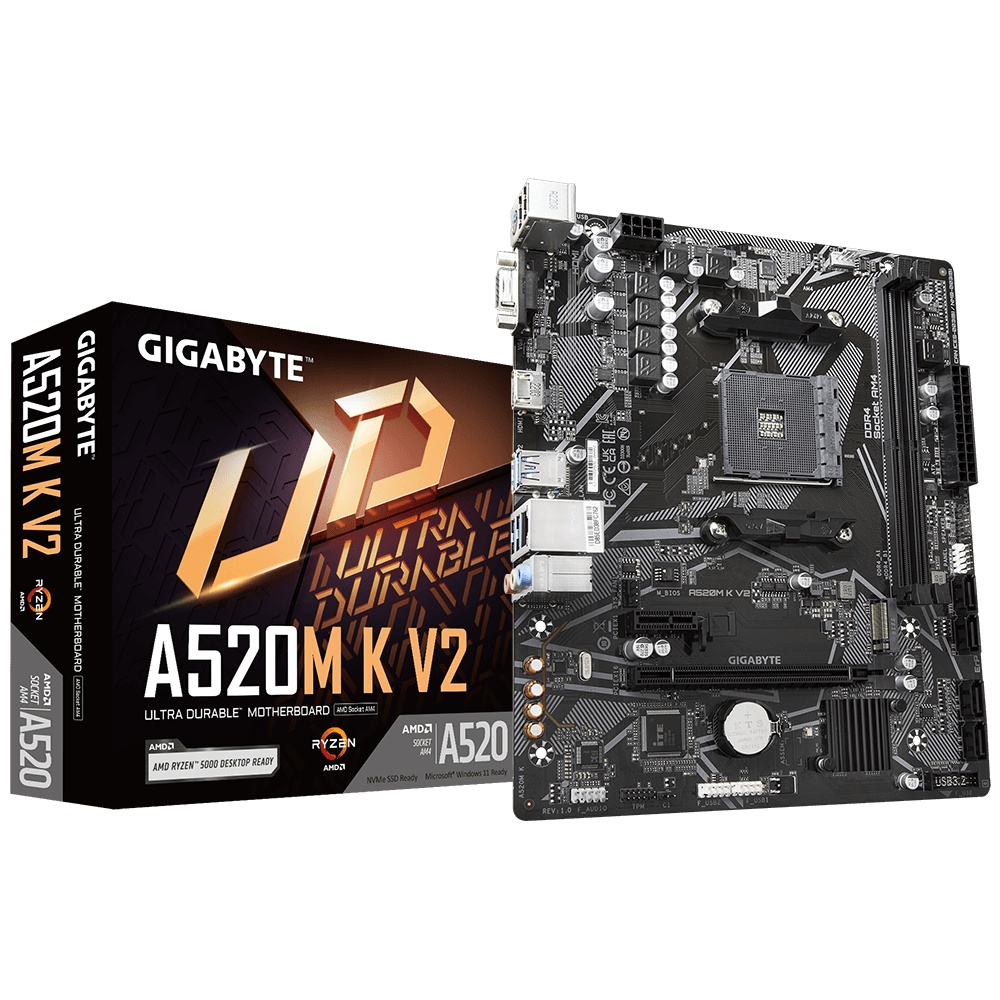

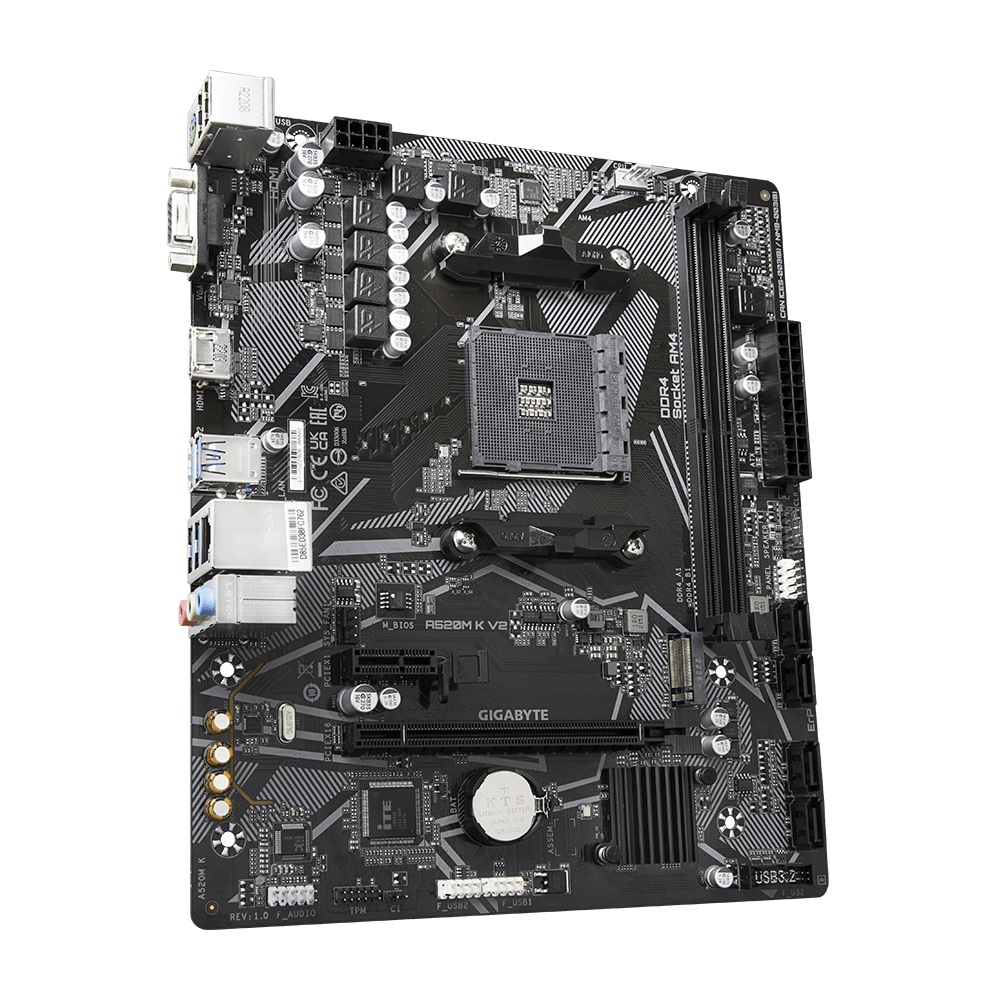

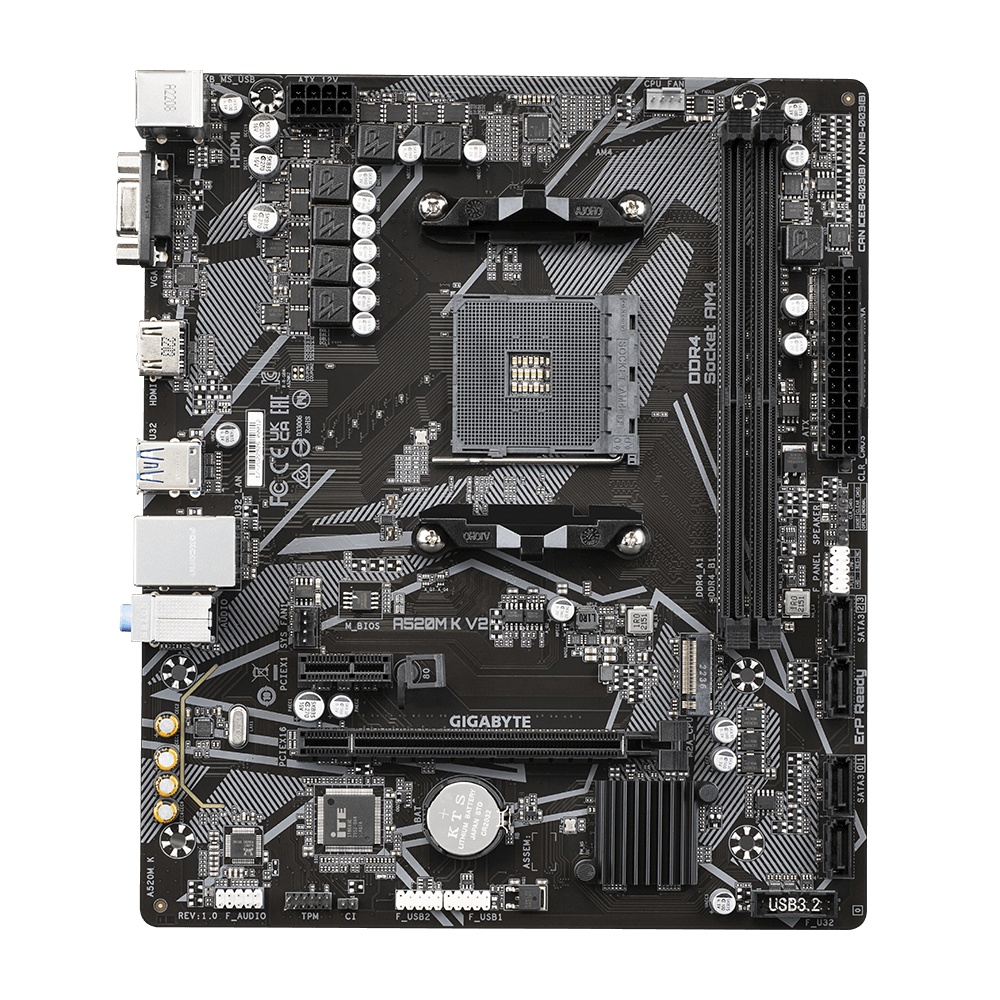

Placa de baza Gigabyte A520M K V2, Socket AM4, DDR4, Micro-ATX
390,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere

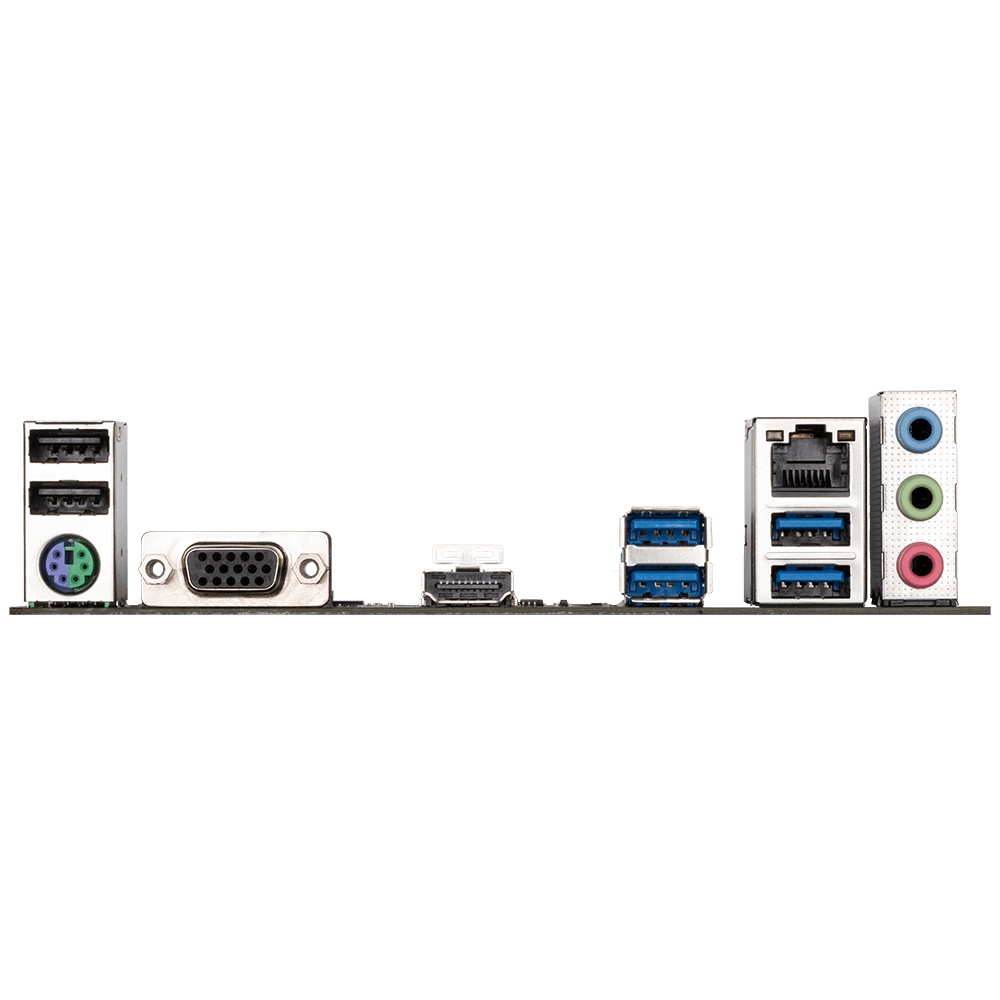

Placa de baza Gigabyte A520M K V2 AM4, 2x DDR4, 1x HDMI, 1x D-Sub, 1x PCIe x16, 1x PCIe x1, 1x M.2, 4x SATA 6Gbps, LAN 1 Gbps, mATX
Detalii
SKU
A520M K V2
EAN
4719331852771
Categorii
Brand
PCI
0
PCI-Ex16
1
Serial-or-Paralel
No/No
USB3
4-8
PCI-Ex1
1
Wi-Fi
No
Onboard-CPU
No
Component for
PC
Memory channels
Dual-channel
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Processor manufacturer
AMD
Country of origin
China
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
Maximum internal memory
64 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
VGA (D-Sub) ports quantity
1
Package depth
235 mm
USB 2.0 ports quantity
2
Products per shipping (inner) case
1 pc(s)
Batteries included
Yes
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Motherboard chipset family
AMD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
HDCP
Yes
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
TPM connector
Yes
12V power connector
Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
Ethernet interface type
Gigabit Ethernet
Warranty period
3 year(s)
DVI-D ports quantity
0
Microphone in
Yes
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
RAID levels
0, 1, 10
Height
35 mm
BIOS memory size
128 Mbit
Motherboard form factor
micro ATX
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of memory slots
2
ECC сompatibility
ECC & Non-ECC
Package width
265 mm
MB-Format
micro-ATX
RAM-Slots
2
Number of M.2 (M) slots
1
PS/2 ports quantity
1
Number of storage drives supported
5
Supported memory types
DDR4-SDRAM
Processor socket
Socket AM4
Supported processor sockets
Socket AM4
Chassis intrusion connector
Yes
Cables included
SATA
Bundled software
Norton Internet Security
PC health monitoring
Fan, Temperature, Voltage
Headphone outputs
3
PCI Express x16 slots
1
PCI Express x1 slots
1
Motherboard chipset
AMD A520
USB connector type
USB Type-A
Package height
52 mm
MB-Socket
AM4
Supported memory clock speeds
2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5100 MHz
Supported memory clock speed (max)
5100 MHz
Package weight
675 g
Compatible processor series
AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
Depth
198 mm
Width
233 mm
