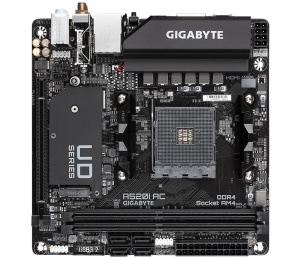

  • Placa de bază Gigabyte A520I AC AM4 - Img 2
  • Placa de bază Gigabyte A520I AC AM4 - Img 3

Placa de bază Gigabyte A520I AC AM4

527,00 RON (TVA inclus)
Costurile de livrare nu sunt incluse
Cod produs - SKU A520I AC
EAN 4719331809867
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0773885089
Trimite-ne un mesaj

Descriere

Placa de baza Gigabyte A520I AC AM4 DDR4, 2x sloturi RAM, max. 64GB, frecventa maxima suportata 5300MHz, 1x DisplayPort, 1x HDMI, 1x PCIe x16, 1x M.2, 4x conectori SATA 6GB/s, 1x LAN 1Gbps, WIFI, Bluetooth 4.2, microATX

Detalii

SKU
A520I AC
EAN
4719331809867
Categorii
Placi de baza
Brand
GIGABYTE
Serial-or-Paralel
No/No
PCI
3
Wi-Fi
Yes
Onboard-CPU
No
Component for
PC
Memory channels
Dual-channel
Ethernet LAN
Yes
HDMI version
2.1
Processor manufacturer
AMD
Country of origin
China
Depth
170 mm
DisplayPort version
1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
DisplayPorts quantity
1
Maximum internal memory
64 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
2
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version
4.2
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Motherboard chipset family
AMD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
HDCP
Yes
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
Serial port headers
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
Ethernet interface type
Gigabit Ethernet
DVI-D ports quantity
0
WiFi-AP antenna jack
2
VGA (D-Sub) ports quantity
0
Number of HDDs supported
4
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
RAID levels
0, 1, 10
Height
35 mm
BIOS memory size
128 Mbit
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of memory slots
2
ECC сompatibility
ECC & Non-ECC
Number of M.2 (M) slots
1
USB 2.0 connectors
1
Number of storage drives supported
5
Supported memory types
DDR4-SDRAM
Processor socket
Socket AM4
Supported processor sockets
Socket AM4
HDMI ports quantity
2
On-board graphics card
No
Number of SATA II connectors
0
Number of SATA connectors
0
mSATA ports quantity
0
Total number of SATA connectors
4
Maximum resolution
5120 x 2880 pixels
PC health monitoring
Fan, Temperature, Voltage
Headphone outputs
3
PCI Express x16 slots
1
Motherboard form factor
mini ITX
Audio connector
Yes
Width
170 mm
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Number of Parallel ATA connectors
0
Compatible processor series
AMD Ryzen 3000 Series
Motherboard chipset
AMD A520
Audio Chip
Realtek ALC887
Maximum internal memory supported by processor
64 GB
Power fan connector
Yes
Number of displays supported
3
Bundled software
Norton Internet Security (OEM version), Realtek 8118 Gaming LAN Bandwidth Control Utility
Supported memory clock speed (max)
5300 MHz
Supported memory clock speeds
2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000,5100,5200 MHz
