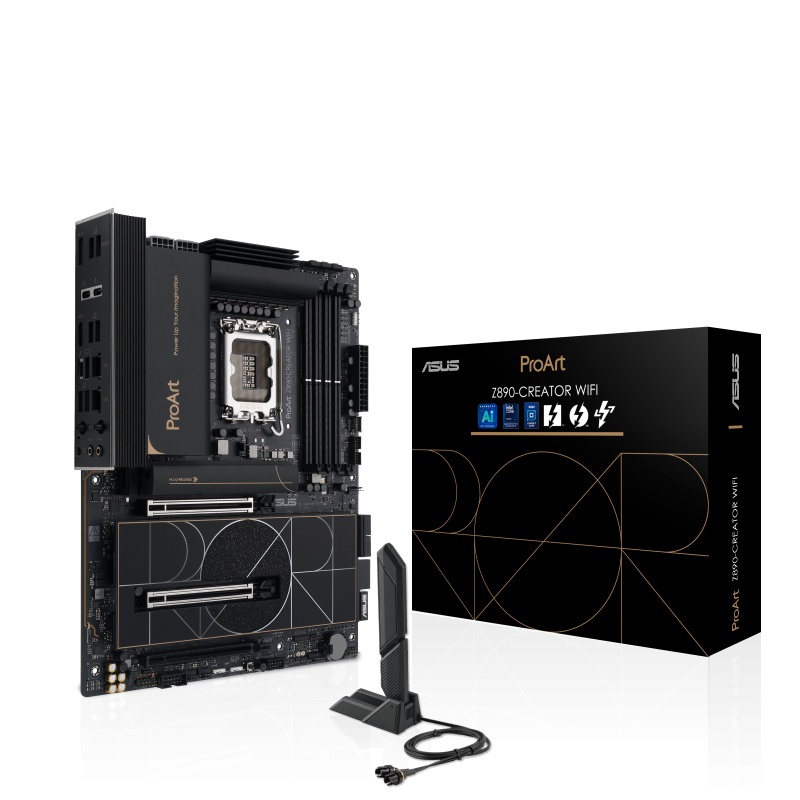

Placa de baza ASUS PROART Z890-CREATOR WIFI, Socket 1851, DDR5, ATX
2.543,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de Baza ASUS PROART Z890-CREATOR WIFI LGA1851, 4x DDR5, 1x HDMI 3x Intel Thunderbolt, 2x PCIE 5.0 x16 1x PCIE 4.0 x16, 5x M.2, 4x SATA 6GB/s, ATX
Detalii
SKU
PROART Z890-CREATOR WIFI
EAN
4711387766163
Categorii
Brand
PCI
0
Serial-or-Paralel
No/No
USB3
4-8
PCI-Ex1
0
PCI-Ex16
3
Wi-Fi
Yes
Onboard-CPU
No
Component for
PC
Memory channels
Dual-channel
Ethernet LAN
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
HDMI ports quantity
1
HDMI version
2.1
Processor manufacturer
Intel
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
6
Line-in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
DisplayPort version
2.1
Headphone outputs
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
DisplayPorts quantity
1
PCI Express x16 (Gen 4.x) slots
1
USB 2.0 ports quantity
1
Clear CMOS button
Yes
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
1st M.2 highest PCI Express generation
5.0
2nd M.2 highest PCI Express generation
4.0
3rd M.2 highest PCI Express generation
4.0
Motherboard form factor
ATX
Power source type
ATX
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
ECC сompatibility
Non-ECC
Antenna included
Yes
DVI-D ports quantity
0
WiFi-AP antenna jack
2
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
MB-Format
ATX
RAM-Slots
4
2nd M.2 largest key size
2280
Motherboard chipset family
Intel
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
RAID levels
0, 1, 5, 10
USB 2.0 connectors
1
Processor socket
LGA 1851 (Socket V1)
Supported processor sockets
LGA 1851
Compatible processor series
Intel Core Ultra (Series 2)
MB-Socket
LGA1851
1st M.2 largest key size
22110
Number of water pump connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Maximum internal memory
192 GB
Number of COM connectors
1
Chassis intrusion connector
Yes
3rd M.2 largest key size
2280
On-board graphics card
No
Number of SATA II connectors
0
Number of SATA connectors
0
mSATA ports quantity
0
Cables included
SATA
Maximum resolution
7680 x 4320 pixels
Number of RGB LED pin headers
3
Number of chassis fan connectors
5
Motherboard chipset
Intel Z890
Number of storage drives supported
9
Audio Chip
Realtek ALC1220P
PCI Express x16 (Gen 5.x) slots
2
Ethernet LAN (RJ-45) ports
2
Package height
244 mm
Ethernet interface type
2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Number of M.2 (M) slots
5
4th M.2 highest PCI Express generation
4.0
Number of EPS power connectors (8-pin)
2
4th M.2 largest key size
2280
Width
30.5 mm
Supported memory clock speed (max)
9066 MHz
5th M.2 largest key size
2280
5th M.2 highest PCI Express generation
4.0
Number of temperature sensor headers
1
Supported memory clock speeds
9066 MHz
Weight
1.97 kg
Package width
356 mm
Package depth
281 mm
Thunderbolt ports quantity
3
Depth
24.4 mm
Package weight
23.5 kg
