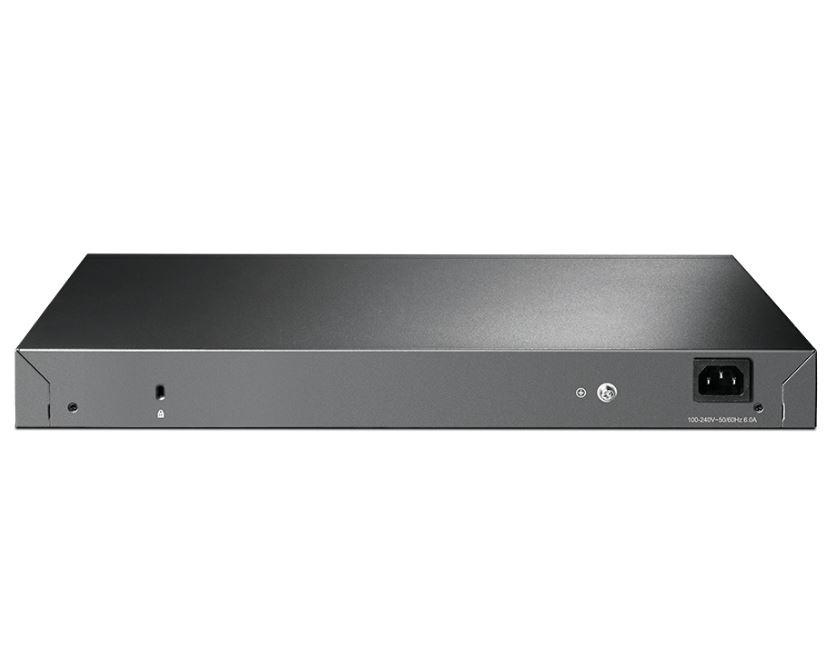

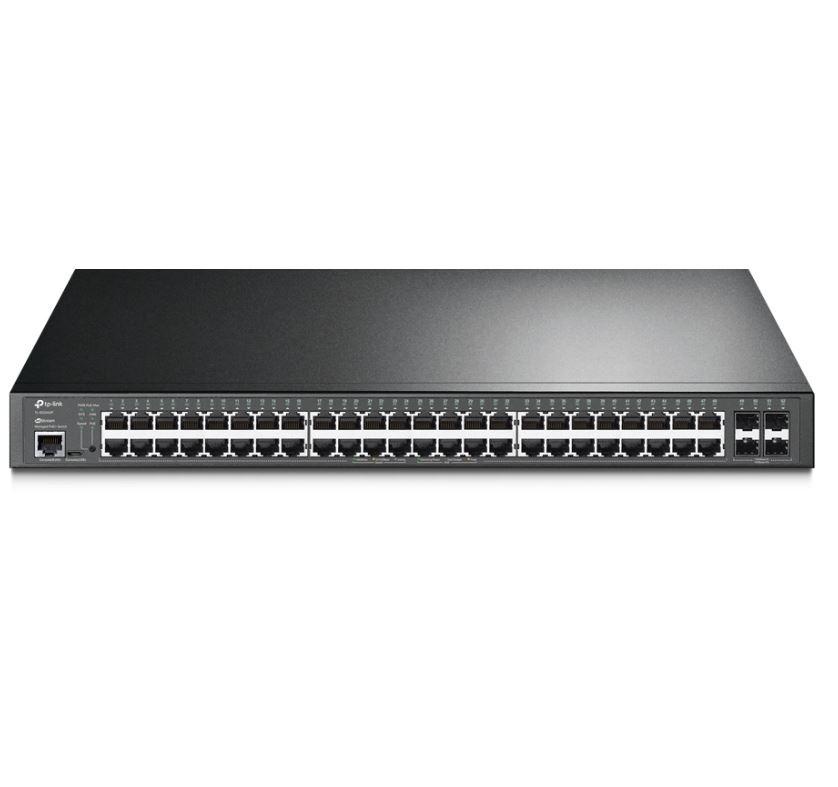

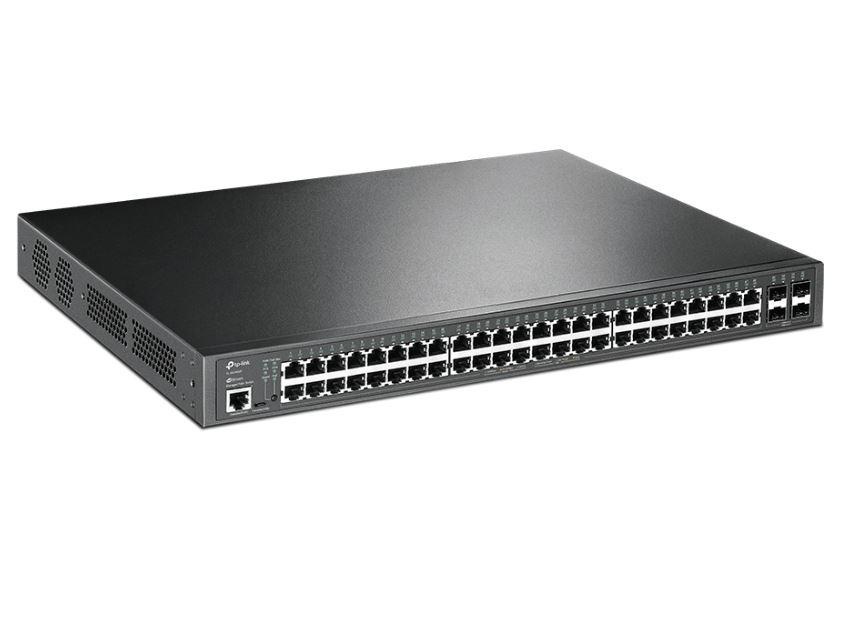

"JetStream™ 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+ PORT: 48× Gigabit PoE+ Ports, 4× Gigabit SFP Slots, RJ45/Micro-USB Console Port SPEC: 802.3at/af, 384 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™
3.470,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
"JetStream™ 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+ PORT: 48× Gigabit PoE+ Ports, 4× Gigabit SFP Slots, RJ45/Micro-USB Console Port SPEC: 802.3at/af, 384 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller,Static Routing, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6"
Detalii
SKU
TL-SG3452P
EAN
6935364006273
Categorii
Brand
LAN-Port-Type
Gigabit
LED indicators
Yes
Password protection
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Operating relative humidity (H-H)
10 - 90%
Cables included
AC
Storage temperature (T-T)
-40 - 70 C
Product colour
Black
Package type
Box
Operating temperature (T-T)
0 - 40 C
Height
44 mm
Storage relative humidity (H-H)
5 - 90%
Quick start guide
Yes
Manual
Yes
Number of fans
3 fan(s)
AC input voltage
100 - 240 V
Reset button
Yes
Depth
330 mm
Harmonized System (HS) code
85176990
Jumbo frames support
Yes
MAC address table
16000 entries
Rack mounting
Yes
Form factor
1U
VLAN support
Yes
Flow control support
Yes
Cloud-managed
Yes
Switch type
Managed
Web-based management
Yes
Port mirroring
Yes
Power over Ethernet (PoE)
Yes
Link aggregation
Yes
Spanning tree protocol
Yes
Installed SFP+ modules quantity
0
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power supply included
Yes
AC input frequency
50/60 Hz
Power source
AC
IGMP snooping
Yes
SSH/SSL support
Yes
Static route
Yes
Policy-based routing
Yes
Access Control List (ACL)
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Rate limiting
Yes
Basic switching RJ-45 Ethernet ports quantity
48
SFP module slots quantity
4
Switching capacity
104 Gbit/s
10G support
No
Multicast support
Yes
Package height
100 mm
Store-and-forward
Yes
Jumbo frames
9000
ARP inspection
Yes
Broadcast storm control
Yes
Head-of-line (HOL) blocking
Yes
IP routing
Yes
Number of VLANs
4000
Console port
RJ-45/micro-USB
Management protocols
SNMPv1/v2c/v3, SNTP
Loop protection
Yes
BPDU filtering/protection
Yes
Width
440 mm
MIB support
Yes
SFP+ module slots quantity
4
GARP VLAN Registration Protocol (GVRP)
Yes
Authentication
MAC-based authentication, Port-based authentication
Power connector
AC-in jack
Packet buffer memory
12 MB
Active link detection
Yes
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
384 W
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Installed SFP modules quantity
0
Number of static routes
48
Package depth
528 mm
Package width
440 mm
Switch layer
L2/L3
Forwarding rate
77.4 Mpps
Power over Ethernet plus (PoE+) ports quantity
48
Package weight
6.77 kg
Networking standards
IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Virtual LAN features
MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Heat dissipation
1656.19 BTU/h
Power consumption (max)
485.4 W
