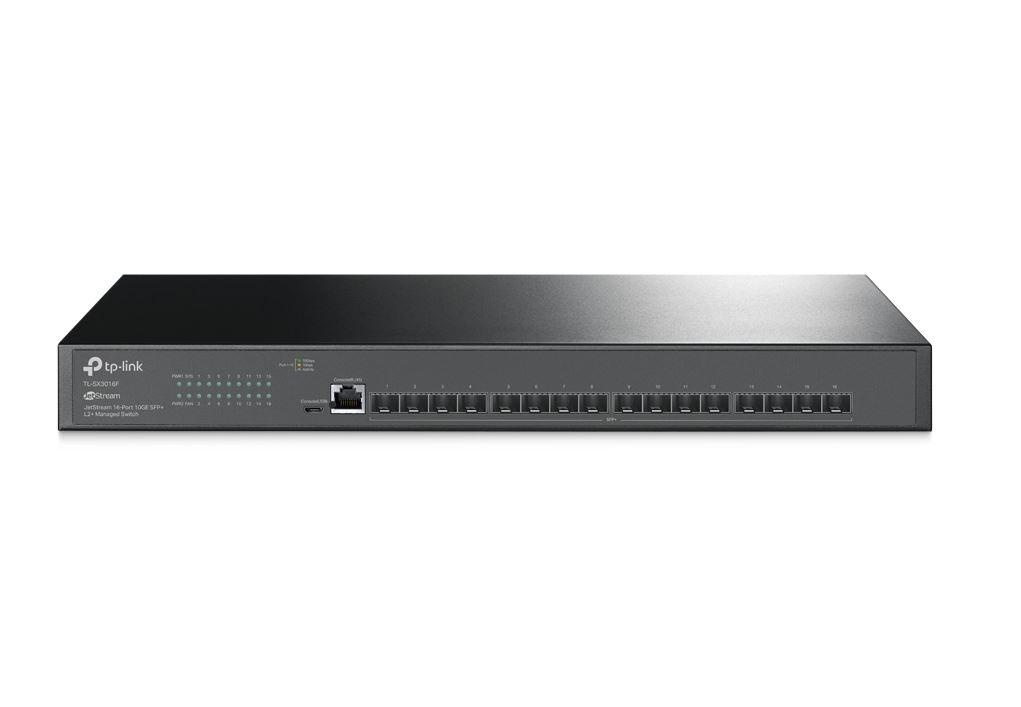

"JetStream™ 16-Port 10GE SFP+ L2+ Managed Switch PORT: 16× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ,
3.327,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
"JetStream™ 16-Port 10GE SFP+ L2+ Managed Switch PORT: 16× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP, QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6, Dual Redundant Power Supplies"
Detalii
SKU
TL-SX3016F
EAN
6935364006433
Categorii
Brand
LAN port type
10Gigabit
LED indicators
Yes
Operating relative humidity (H-H)
10 - 90%
Cables included
AC
Storage temperature (T-T)
-40 - 70 C
Product colour
Black
Package type
Box
Operating temperature (T-T)
0 - 45 C
Height
44 mm
Storage relative humidity (H-H)
5 - 90%
Quick start guide
Yes
Manual
Yes
AC input voltage
100 - 240 V
Harmonized System (HS) code
85176990
Jumbo frames support
Yes
Rack mounting
Yes
VLAN support
Yes
Flow control support
Yes
Cloud-managed
Yes
Switch type
Managed
Web-based management
Yes
10G support
Yes
Port mirroring
Yes
Link aggregation
Yes
Spanning tree protocol
Yes
Installed SFP+ modules quantity
0
Power supply included
Yes
AC input frequency
50/60 Hz
Power source
AC
IGMP snooping
Yes
SSH/SSL support
Yes
Static route
Yes
Access Control List (ACL)
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Rate limiting
Yes
MAC address filtering
Yes
Power over Ethernet (PoE)
No
Multicast support
Yes
Switching capacity
320 Gbit/s
Package height
100 mm
Configuring Location Settings (CLI)
Yes
Number of queues
8
Power connector
DC-in jack
Jumbo frames
9000
MAC address table
32000 entries
Traffic classification
Yes
ARP inspection
Yes
MIB support
RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Multicast Listener Discovery (MLD) snooping
Y
Broadcast storm control
Yes
Head-of-line (HOL) blocking
Yes
IP routing
Yes
Number of VLANs
4000
Rack mount kit
Yes
Console port
RJ-45/micro-USB
Basic switching RJ-45 Ethernet ports quantity
0
Basic switching RJ-45 Ethernet ports type
No
Management protocols
SNMPv1/v2c/v3, SNTP
IPv4 & IPv6 features
IPv6 Telnet, IPv6 ping, IPv6 tracert
DHCP features
DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Authentication
Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Static port security
Yes
Security algorithms
HTTPS, SSH, SSH-2, SSL/TLS
IP-MAC-Port binding
Yes
Authentication type
AAA, TACACS+
Queue scheduling algorithms
SP, WRR+SP, Weighted Round Robin (WRR)
Loop protection
Yes
BPDU filtering/protection
Yes
Width
440 mm
Depth
220 mm
Certification
CE, FCC, RoHS
Installed SFP modules quantity
0
Virtual LAN features
Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Packet buffer memory
24 MB
Heat dissipation
111.71 BTU/h
SFP module slots quantity
16
SFP+ module slots quantity
16
Power consumption (max)
32.74 W
Switch layer
L2/L3
Package width
528 mm
Forwarding rate
23.808 Mpps
Package depth
336 mm
Package weight
37 kg
