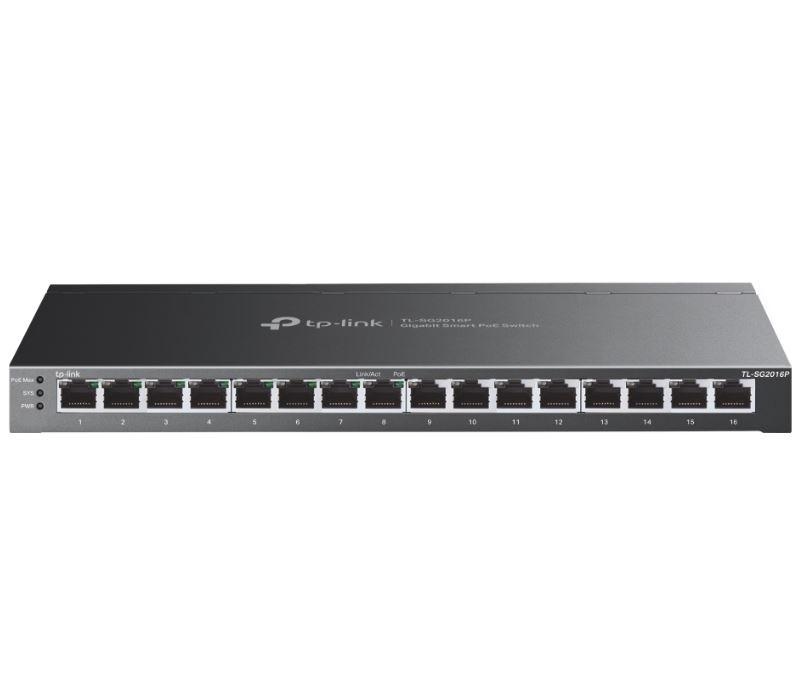

"JetStream™ 16-Port Gigabit Smart Switch with 8-Port PoE+ PORT: 8× Gigabit PoE+ Ports SPEC: 802.3af/at, 120 W PoE Power, Desktop Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping,
1.101,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
"JetStream™ 16-Port Gigabit Smart Switch with 8-Port PoE+ PORT: 8× Gigabit PoE+ Ports SPEC: 802.3af/at, 120 W PoE Power, Desktop Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image, IPv6"
Detalii
SKU
TL-SG2016P
EAN
4897098689493
Categorii
Brand
Rackable
No
Stackable
No
Layer
Layer-2
LAN-Port-Type
Gigabit
Redundant-PSU
No
LAN-Ports
16
Ethernet LAN data rates
10,100,1000 Mbit/s
Operating relative humidity (H-H)
10 - 90%
Cables included
AC
Storage temperature (T-T)
-40 - 70 C
Operating temperature (T-T)
0 - 40 C
Storage relative humidity (H-H)
5 - 90%
Height
25.4 mm
Jumbo frames support
Yes
Rack mounting
Yes
VLAN support
Yes
Flow control support
Yes
Cloud-managed
Yes
Switch type
Managed
Web-based management
Yes
Auto MDI/MDI-X
Yes
Port mirroring
Yes
Power over Ethernet (PoE)
Yes
Link aggregation
Yes
Spanning tree protocol
Yes
Auto-negotiation
Yes
Installed SFP+ modules quantity
0
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
IGMP snooping
Yes
SSH/SSL support
Yes
Access Control List (ACL)
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Rate limiting
Yes
MAC address filtering
Yes
10G support
No
MAC address table
8000 entries
Multicast support
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Configuring Location Settings (CLI)
Yes
Number of queues
8
Fanless
Yes
Switching capacity
32 Gbit/s
Basic switching RJ-45 Ethernet ports quantity
16
Power connector
DC-in jack
Jumbo frames
9000
ARP inspection
Yes
Broadcast storm control
Yes
Number of VLANs
4000
IP-MAC-Port binding
Yes
BPDU filtering/protection
Yes
Certification
CE, FCC, RoHS
GARP VLAN Registration Protocol (GVRP)
Yes
DC input voltage
53.5 V
Power source
DC/PoE
Firmware upgradeable
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Installed SFP modules quantity
0
Packet buffer memory
4.1 MB
Queue scheduling algorithms
SP, Weighted Round Robin (WRR)
Total Power over Ethernet (PoE) budget
120 W
LED indicators
PoE, Power, System
Authentication
Guest VLAN, MAC-based authentication, Port-based authentication
Multicast Listener Discovery (MLD) snooping
MLD v1, MLD v2
Switch layer
L2/L2+
Forwarding rate
23.81 Mpps
Width
286 mm
Depth
111.7 mm
IPv4 & IPv6 features
Dual stack IPv4/IPv6
Virtual LAN features
Multicast VLAN, Tagged VLAN, Voice VLAN
MIB support
RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757
Security algorithms
EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS
Heat dissipation
499.98 BTU/h
Power consumption (max)
146.5 W
Supported network protocols
ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2
DHCP features
DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping
MAC address entries
Dynamic MAC address entries, Static MAC address entries
