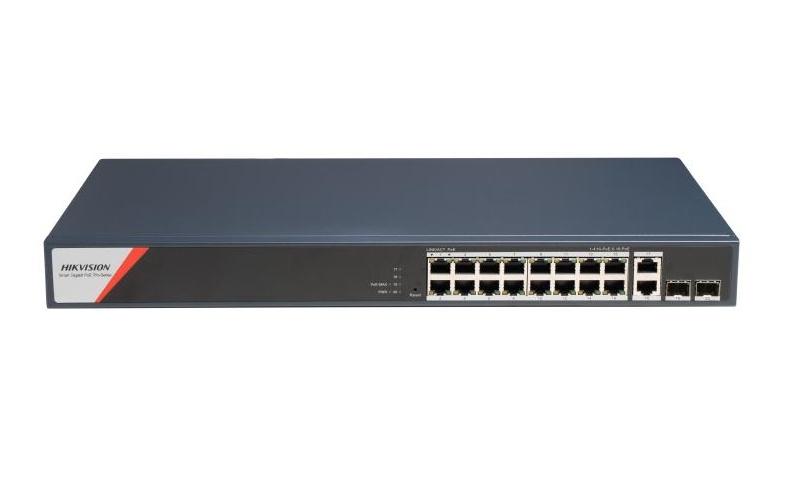

Switch PoE Hikvision DS-3E1520HP-SI-16P2T2F: 16 x 10/100/1000 PoE Ports, 2 × 10/100/1000 Mbps RJ45, 8 porturi PoE maxim 90W, buget PoE 230W, tensiune alimentare: 100-240V~ 50/60Hz 4 A, dimensiuni: 440 mm × 44 mm × 220.8 mm, greutate: 2.73kg, montare pe
3.479,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Switch PoE Hikvision DS-3E1520HP-SI-16P2T2F: 16 x 10/100/1000 PoE Ports, 2 × 10/100/1000 Mbps RJ45, 8 porturi PoE maxim 90W, buget PoE 230W, tensiune alimentare: 100-240V~ 50/60Hz 4 A, dimensiuni: 440 mm × 44 mm × 220.8 mm, greutate: 2.73kg, montare pe birou sau in rack.
Detalii
SKU
DS-3E1520HP-SI-16P2T2F
EAN
301803250
Categorii
Brand
Storage temperature (T-T)
-40 - 85 C
Housing material
Metal
Operating temperature (T-T)
0 - 45 C
Operating relative humidity (H-H)
5 - 95%
Height
44 mm
Storage relative humidity (H-H)
5 - 95%
AC input voltage
100 - 240 V
Rack mounting
Yes
VLAN support
Yes
Switch type
Managed
Web-based management
Yes
Power over Ethernet (PoE)
Yes
Link aggregation
Yes
Spanning tree protocol
Yes
Installed SFP+ modules quantity
0
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Access Control List (ACL)
Yes
Quality of Service (QoS) support
Yes
Rate limiting
Yes
10G support
No
MAC address table
8000 entries
Power consumption (max)
250 W
Forwarding rate
29.76 Mpps
Cable length detection
Yes
Broadcast storm control
Yes
Loop protection
Yes
Width
440 mm
Surge protection
Yes
Power connector
AC-in jack
Switching capacity
56 Gbit/s
Package weight
3.31 kg
Fiber ports quantity
2
Installed SFP modules quantity
0
Packet buffer memory
4.1 MB
Number of VLANs
4094
Queue scheduling algorithms
SP, Weighted Round Robin (WRR)
Power over Ethernet (PoE) ports quantity
16
Weight
2.73 kg
Depth
220.8 mm
Power source
AC/PoE
Surge protection voltage
6 kV
Total Power over Ethernet (PoE) budget
230 W
Basic switching RJ-45 Ethernet ports quantity
18
Gigabit Ethernet (copper) ports quantity
18
Fiber optic connector
SFP
Compliance certificates
CB, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RCM, REACH, RoHS, WEEE
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
IP Source Guard (IPSG)
Yes
DHCP features
DHCP client, DHCP snooping
Access Control List (ACL) rules
128
