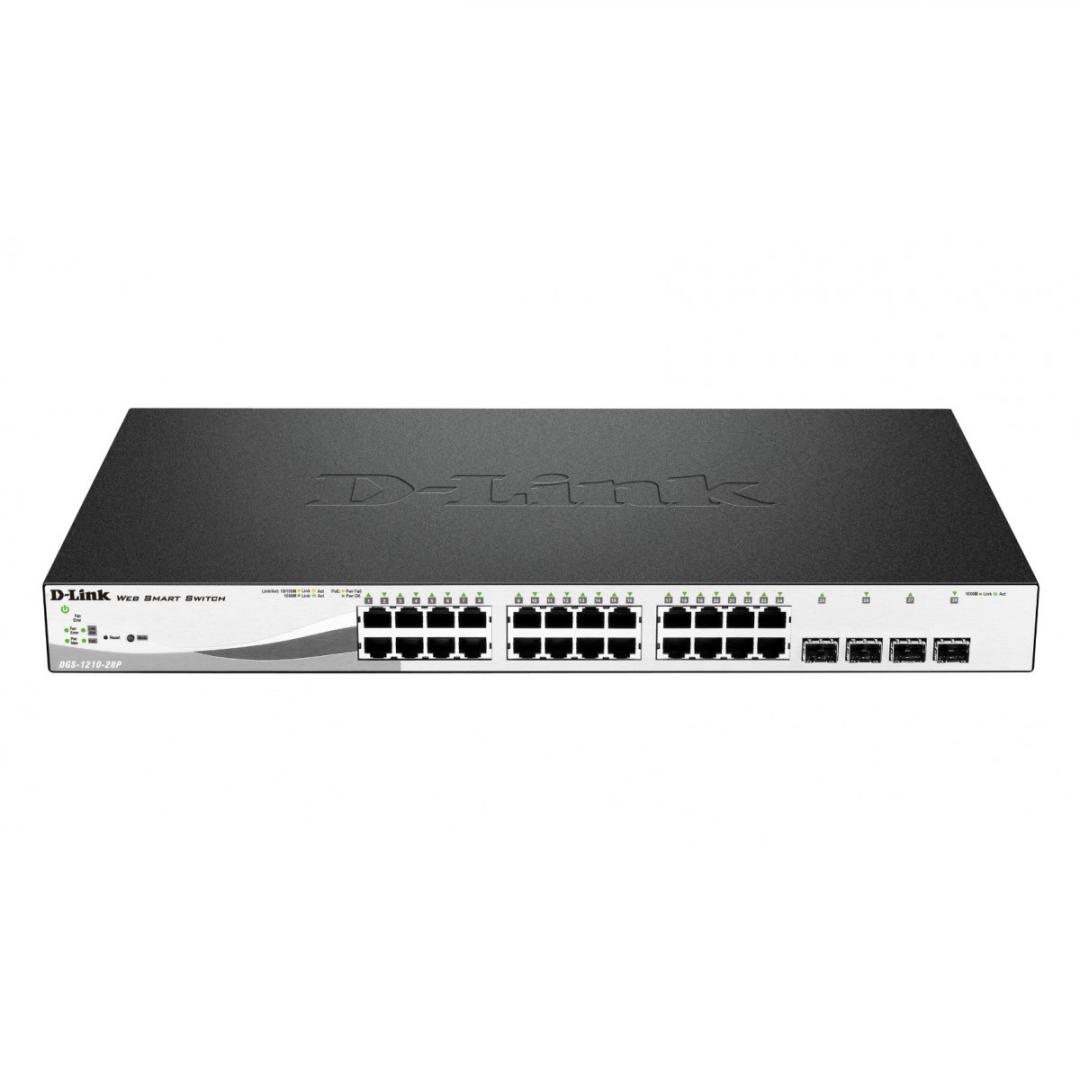

Switch D-link DGS-1210-28MP, 28 Port, 10/100/1000 Mbps
4.754,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
D-Link Switch DGS-1210-28MP, 28-Port Gigabit PoE+ Smart Switch including 4 SFP Ports; Powerbudget 370W; 24 x PoE+ 10/100/1000Mbps; 4 x SFP Auto-Negotiating Ports;Port 1-24 802.3at up to 30W; Advance power saving features; Half-/Full-Duplex, auto-negotiation, Auto MDI/MDIX; IEEE 802.3x Flow Control- 802.3ad Link Aggregation; Asymmetric VLAN; Voice VLAN; Jumbo frame9,216 Bytes; Switching capacity 56 Gbps; 802.1p priority queues; MACAddress table size 16k; Static MAC Addresses 256; Static multicastaddresses 64; MAC/IP filtering; MAC/IP-based ACL 200 rules (Port List;802.1X port-base Access Control, Port Security; LLDP, LLDP-MED, SmartBinding, Traffic Segmentation; IPv6 configurations; D-Link SafeguardEngine; Smart Console Utility, web based management, compact CLI; DNAutility; 19" Rackmount Installation; IEEE 802.3az EEE.
Detalii
SKU
DGS-1210-28MP
EAN
790069467776
Categorii
Brand
LAN port type
Gigabit
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 70 C
Product colour
Black, Grey
Height
44 mm
Storage relative humidity (H-H)
5 - 90%
Pallet gross width
120 cm
Number of fans
2 fan(s)
AC input voltage
100 - 240 V
Package width
365 mm
Harmonized System (HS) code
85176990
Jumbo frames support
Yes
Full duplex
Yes
MAC address table
16000 entries
Packet buffer memory
1.5 MB
Rack mounting
Yes
Form factor
1U
VLAN support
Yes
Built-in processor
Yes
Flow control support
Yes
Switch type
Managed
Web-based management
Yes
Auto MDI/MDI-X
Yes
Port mirroring
Yes
Power over Ethernet (PoE)
Yes
Link aggregation
Yes
Spanning tree protocol
Yes
Auto-negotiation
Yes
Memory type
DDR3-SDRAM
Installed SFP+ modules quantity
0
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
IGMP snooping
Yes
SSH/SSL support
Yes
Access Control List (ACL)
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Rate limiting
Yes
SFP module slots quantity
4
AC input frequency
50 - 60 Hz
DHCP features
DHCP client
Basic switching RJ-45 Ethernet ports quantity
24
Switch layer
L2
10G support
No
Multicast support
Yes
Depth
210 mm
Store-and-forward
Yes
Number of queues
8
Jumbo frames
9216
Traffic classification
Yes
IP routing
Yes
IP-MAC-Port binding
Yes
Loop protection
Yes
BPDU filtering/protection
Yes
Width
440 mm
Flash memory
32 MB
SFP+ module slots quantity
4
Switching capacity
56 Gbit/s
Power source
AC/DC
Package height
92 mm
Pallet gross length
110 cm
Console port
RJ-45
Fiber ethernet cabling technology
1000BASE-X
Power over Ethernet (PoE) ports quantity
24
Installed SFP modules quantity
0
Number of VLANs
4094
Authentication
Guest VLAN, MAC-based authentication, Port-based authentication
Forwarding rate
41.7 Mpps
LED indicators
Activity, Fan fail, Link, Power, Speed
Multicast Listener Discovery (MLD) snooping
MLD v1, MLD v2
Operating temperature (T-T)
-5 - 50 C
Access Control List (ACL) rules
256
Master (outer) cases per pallet (air)
24 pc(s)
Pallet height (sea)
2.1 m
Package depth
521 mm
Products per shipping (inner) case
3 pc(s)
Shipping (inner) case width
29.5 cm
Master (outer) cases per pallet (sea)
40 pc(s)
Shipping (inner) case height
39.3 cm
Shipping (inner) case length
53.9 cm
Products per pallet (air)
72 pc(s)
Pallet height (air)
131.4 cm
Products per pallet (sea)
120 pc(s)
Certification
IEC61000-4-5, RoHS
Number of static routes
32
Electromagnetic compatibility
FCC A, CE A, VCCI, C-Tick, BSMI, CCC
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T
Heat dissipation
850.58 BTU/h
Noise level
52.4 dB
Power consumption (typical)
27.49 W
Security algorithms
802.1x RADIUS, SNMP, SSH
Weight
3.86 kg
Fiber optic connector
SFP
Package weight
5.18 kg
Safety
CCC, CE LVD, UL/cUL
Mean time between failures (MTBF)
294101 h
Virtual LAN features
Voice VLAN, Tagged VLAN, MAC address-based VLAN, Port-based VLAN
Shipping (inner) case net weight
15.6 kg
Pallet gross weight (air)
419.7 kg
Pallet gross weight (sea)
682.9 kg
Shipping (inner) case gross weight
16.4 kg
