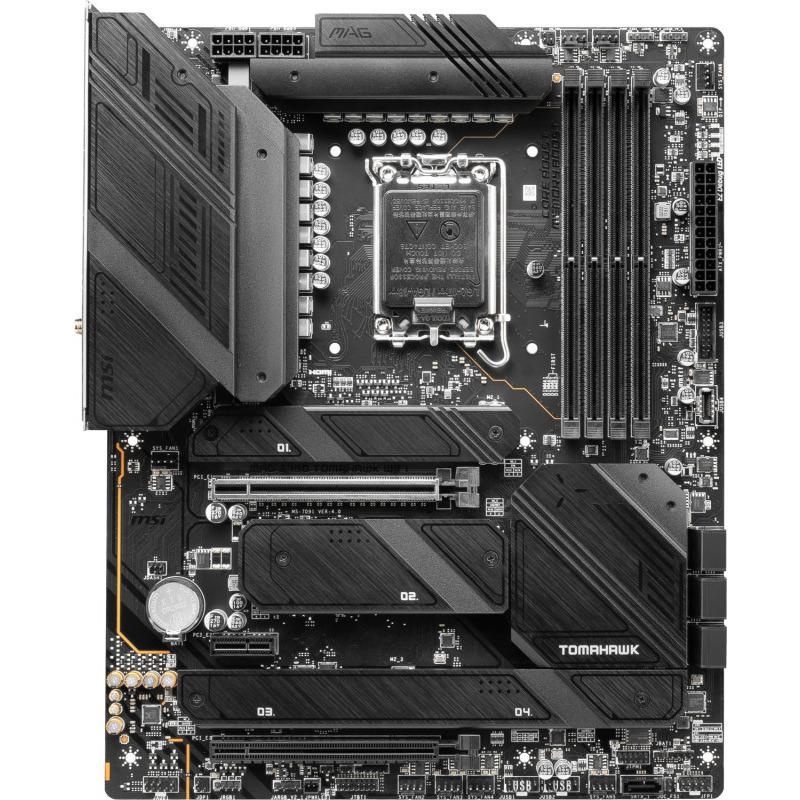

• Placa de bază MSI MAG Z790 TOMAHAWK WIFI LGA1700 - Img 1

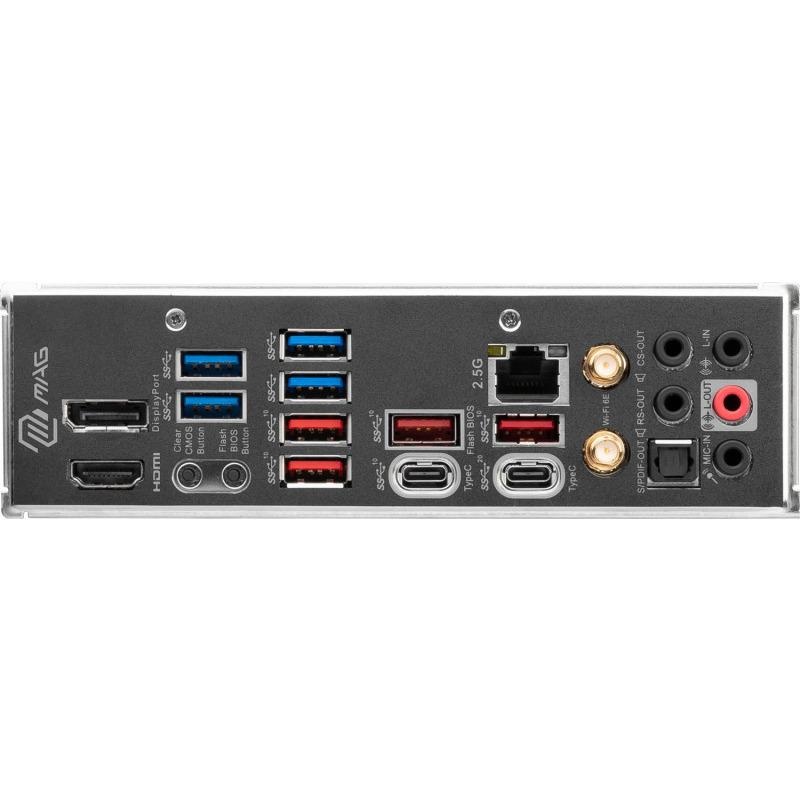

  • Placa de bază MSI MAG Z790 TOMAHAWK WIFI LGA1700 - Img 2

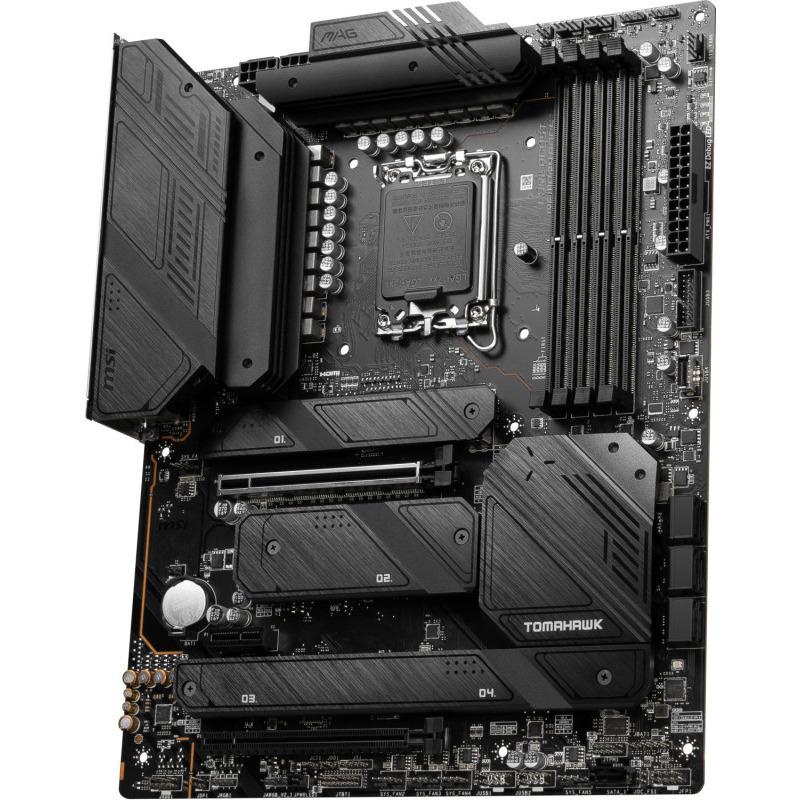

  • Placa de bază MSI MAG Z790 TOMAHAWK WIFI LGA1700 - Img 3

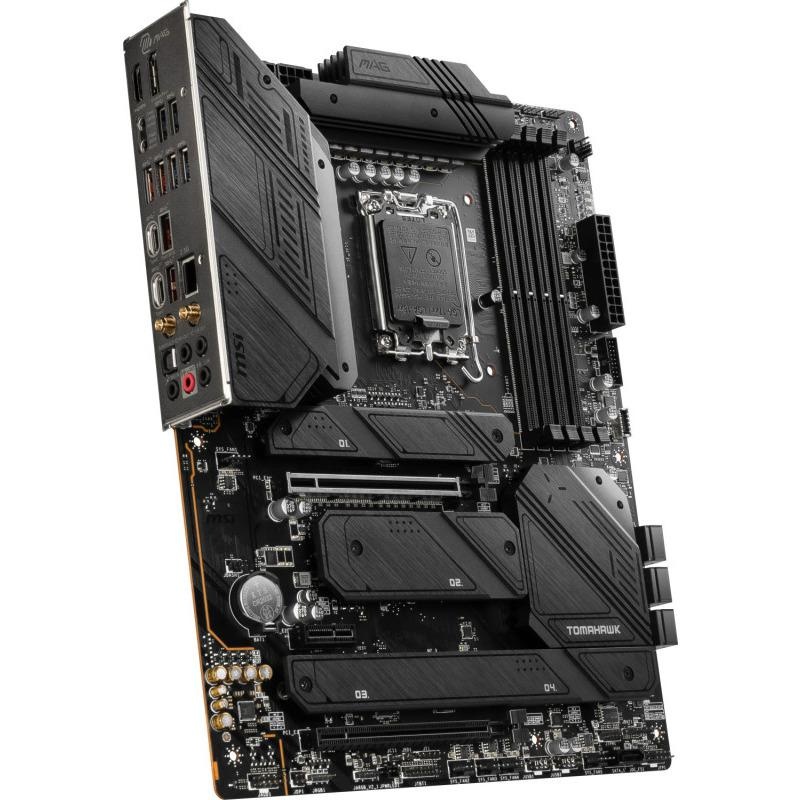

  • Placa de bază MSI MAG Z790 TOMAHAWK WIFI LGA1700 - Img 4

Placa de bază MSI MAG Z790 TOMAHAWK WIFI LGA1700

1.782,00 RON (TVA inclus)
Costurile de livrare nu sunt incluse
Cod produs - SKU Z790 TOMAHAWK WIFI
EAN 4711377025492
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0773885089
Trimite-ne un mesaj

Descriere

Placa de baza MSI MAG Z790 TOMAHAWK WIFI DDR5 LGA 1700 SPECIFICATIONS Model Name MAG Z790 TOMAHAWK WIFI CPU Support Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® Z790 Chipset Expansion Slots 1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1 slot Display Interface Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort 1.4 – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR5 7200+MHz (OC) Storage 4x M.2 Gen4 x4 64Gbps slots, 7x SATA 6Gb/s ports USB ports 1x USB 3.2 Gen 2x2 20Gbps (Type-C), 6x USB 3.2 Gen 2 10Gbps (4 Type-A + 2 Type-C), 6x USB 3.2 Gen 1 5Gbps (Type-A), 4x USB 2.0 LAN 1x Intel® 2.5Gbps LAN Wireless / Bluetooth Intel® Wi-Fi 6E, Bleutooth 5.2 Audio 8-Channel (7.1) HD Audio with Audio Boost 5

Detalii

SKU
Z790 TOMAHAWK WIFI
EAN
4711377025492
Categorii
Placi de baza
Brand
MSI
PCI
0
Serial-or-Paralel
No/No
Wi-Fi
Yes
Onboard-CPU
No
Component for
PC
Bluetooth version
5.3
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Memory channels
Dual-channel
Ethernet LAN
Yes
HDMI ports quantity
1
HDMI version
2.1
Processor manufacturer
Intel
DisplayPort version
1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 2.0 ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
DisplayPorts quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Motherboard form factor
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Front panel audio connector
Yes
CPU fan connector
Yes
Number of memory slots
4
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
ECC сompatibility
Non-ECC
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
RAID support
Yes
Motherboard chipset family
Intel
USB 2.0 connectors
2
Supported memory clock speed (max)
7200 MHz
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
ACPI version
6.4
System Management BIOS (SMBIOS) version
3.5
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Maximum internal memory
192 GB
Ethernet interface type
2.5 Gigabit Ethernet
Compatible processor series
Intel Celeron, Intel Pentium Gold
Width
243.8 mm
Chassis intrusion connector
Yes
Number of SATA II connectors
0
Number of SATA connectors
0
Cables included
SATA
Depth
304.8 mm
S/PDIF out port
Yes
Number of M.2 (M) slots
4
PCI Express x16 (Gen 5.x) slots
2
Maximum internal memory supported by processor
192 GB
PCI Express x1 (Gen 4.x) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
Motherboard chipset
Intel Z790
Supported storage drive interfaces
M.2, PCI Express
Number of SATA III connectors
7
Supported memory clock speeds
4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
RAID levels
0, 5, 10
