NOU

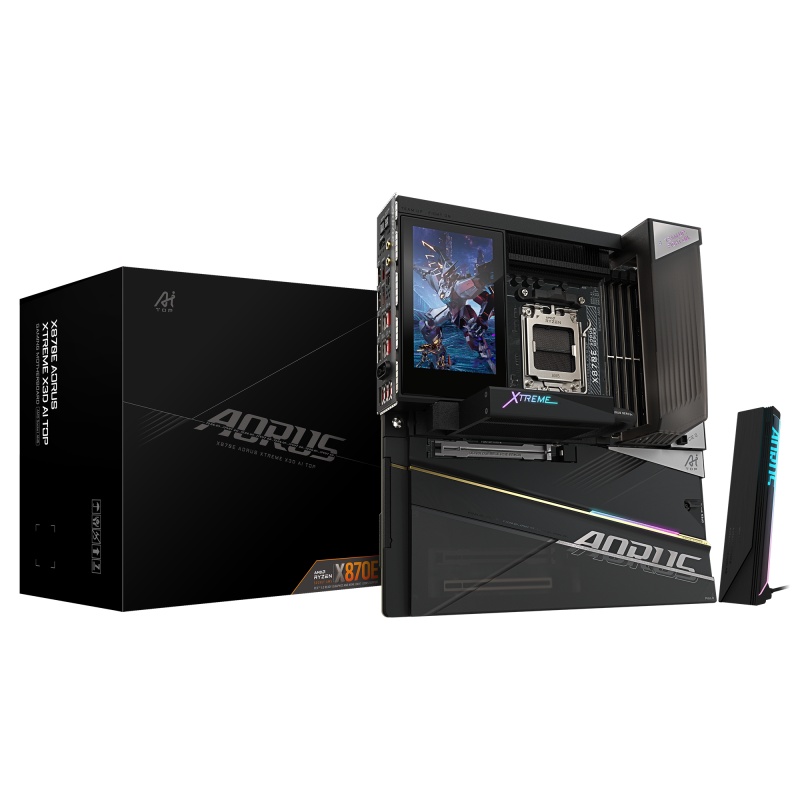

Placa de baza Gigabyte X870E AORUS XTREME X3D AI TOP, Socket AM5, DDR5, E-ATX

7.204,00 RON (TVA inclus)
Costurile de livrare nu sunt incluse
Cod produs - SKU X870E A XTR X AI TOP
EAN 4719331878061
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0773885089
Trimite-ne un mesaj

Descriere

GIGABYTE X870E AORUS XTREME X3D AI TOP. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Realtek RTL8127, Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Detalii

SKU
X870E A XTR X AI TOP
EAN
4719331878061
Categorii
Placi de baza
Brand
GIGABYTE
Wi-Fi
Yes
Component for
PC
Bluetooth
Yes
Memory channels
Dual-channel
Ethernet LAN
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
HDMI ports quantity
1
HDMI version
2.1
Processor manufacturer
AMD
Product colour
Black
Country of origin
Taiwan
Line-in
Yes
DisplayPort version
1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 2.0 ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
PCI Express x16 (Gen 4.x) slots
1
Number of SATA III connectors
2
Products per shipping (inner) case
1 pc(s)
Batteries included
Yes
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
HDCP
Yes
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
RGB LED pin header
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of chassis fan connectors
3
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Antenna included
Yes
Screws included
Yes
Warranty period
3 year(s)
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
Microphone in
Yes
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
Number of storage drives supported
7
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
Width
305 mm
Height
35 mm
Cooling type
Passive
Number of RGB LED pin headers
1
RAID levels
0, 1, 5, 10
USB 2.0 connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
HDCP version
2.3
Windows operating systems supported
Windows 11 x64
USB 3.2 Gen 2x2 connectors
1
USB4 Gen 2x2 ports quantity
2
S/PDIF out port
Yes
Number of HDDs supported
2
PCI Express x16 (Gen 5.x) slots
2
Digital audio optical out
1
Motherboard form factor
Extended ATX
Ethernet interface type
10 Gigabit Ethernet
Ethernet LAN (RJ-45) ports
2
Package weight
11.2 kg
Package height
167 mm
Motherboard chipset
AMD X870E
Number of M.2 (M) slots
5
4th M.2 highest PCI Express generation
4.0
2nd M.2 highest PCI Express generation
5.0
4th M.2 largest key size
22110
Number of EPS power connectors (8-pin)
2
Number of water pump connectors
3
Number of temperature sensor headers
2
Battery capacity
220 mAh
1st M.2 largest key size
2580
Depth
285 mm
Package width
387 mm
5th M.2 largest key size
2280
5th M.2 highest PCI Express generation
4.0
BIOS memory size
512 Mbit
Supported memory clock speed (max)
9000 MHz
Bundled software
Norton Internet Security (OEM version)
WLAN controller model
MediaTek MT7927
Supported memory clock speeds
9000,8800,8600,8400,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz
Package depth
387 mm
Audio Chip
1 ESS ES9280AC + 2 ESS ES9080
LAN controller
Realtek RTL8127
Weight
8.02 kg
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
8
