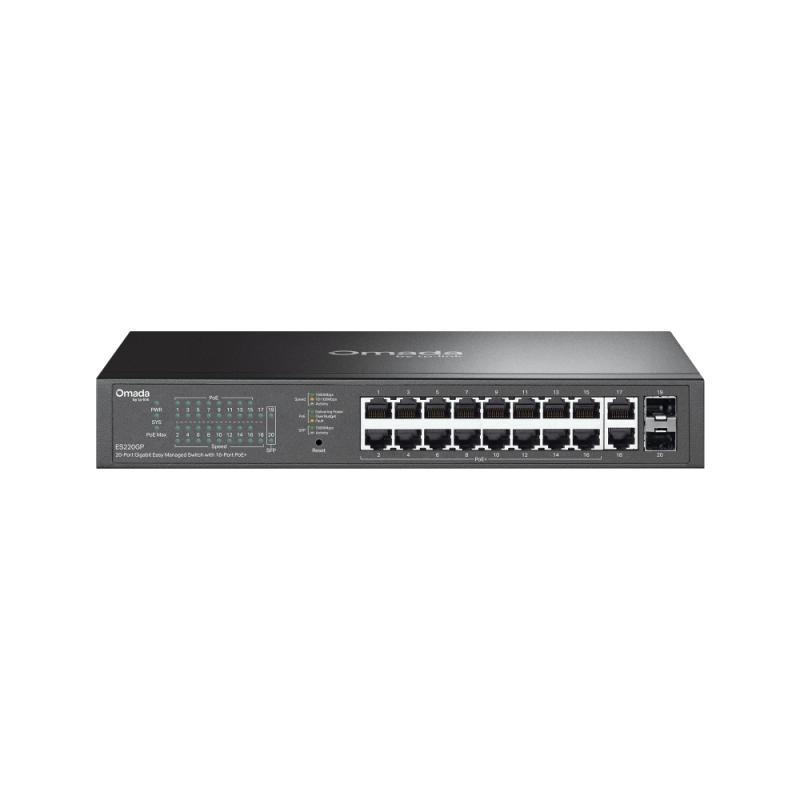

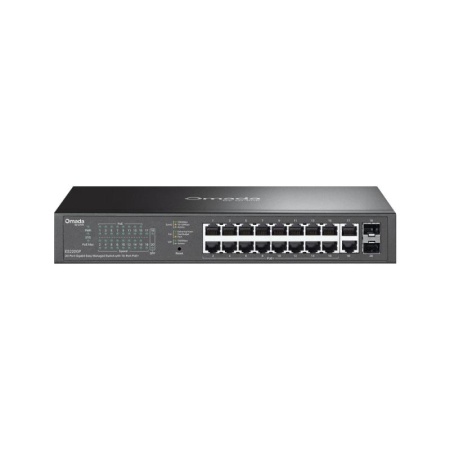

Omada 20-Port Switch ES220GP, • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE)• 2× 10/100/1000 Mbps RJ45 Port• 2 × Gigabit SFP Slot, 100–240 VAC, 50/60 Hz, capacitate switch 40 Gbps
929,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Omada 20-Port Switch ES220GP, • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE)• 2× 10/100/1000 Mbps RJ45 Port• 2 × Gigabit SFP Slot, 100–240 VAC, 50/60 Hz, capacitate switch 40 Gbps
Detalii
SKU
ES220GP
EAN
1210002609746
Categorii
Brand
Rackable
No
Stackable
No
LAN-Port-Type
FastEthernet
LAN-Ports
8
Redundant-PSU
No
Ethernet LAN data rates
10,100,1000 Mbit/s
Operating relative humidity (H-H)
10 - 90%
Cables included
AC
Storage temperature (T-T)
-40 - 70 C
Product colour
Black
Housing material
Metal
Height
44 mm
Storage relative humidity (H-H)
5 - 90%
AC input voltage
100 - 240 V
User guide
Yes
Jumbo frames support
Yes
Rack mounting
Yes
VLAN support
Yes
Flow control support
Yes
Cloud-managed
Yes
Switch type
Managed
Web-based management
Yes
Auto MDI/MDI-X
Yes
Port mirroring
Yes
Power over Ethernet (PoE)
Yes
Link aggregation
Yes
Auto-negotiation
Yes
Installed SFP+ modules quantity
0
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
2
AC input frequency
50/60 Hz
Power source
AC
IGMP snooping
Yes
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Quality of Service (QoS) support
Yes
DHCP features
DHCP client
10G support
No
MAC address table
8000 entries
Multicast support
Yes
Power over Ethernet (PoE) type supported
PoE+
Depth
180 mm
Store-and-forward
Yes
Switching capacity
40 Gbit/s
Forwarding rate
29.76 Mpps
Number of queues
8
Fanless
Yes
Broadcast storm control
Yes
Number of VLANs
32
Power connector
AC-in jack
Input current
2.5 A
Power over Ethernet (PoE) power per port
30 W
Operating temperature (T-T)
-5 - 40 C
Packet buffer memory
4 MB
Power over Ethernet plus (PoE+) ports quantity
16
Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Virtual LAN features
MTU VLAN, Port-based VLAN, Tagged VLAN
Width
294 mm
Total Power over Ethernet (PoE) budget
150 W
Basic switching RJ-45 Ethernet ports quantity
18
Gigabit Ethernet (copper) ports quantity
18
Queue scheduling algorithms
Weighted Round Robin (WRR)
Mean time between failures (MTBF)
320156 h
Noise level
20.1 dB
Power consumption (max)
182.43 W
