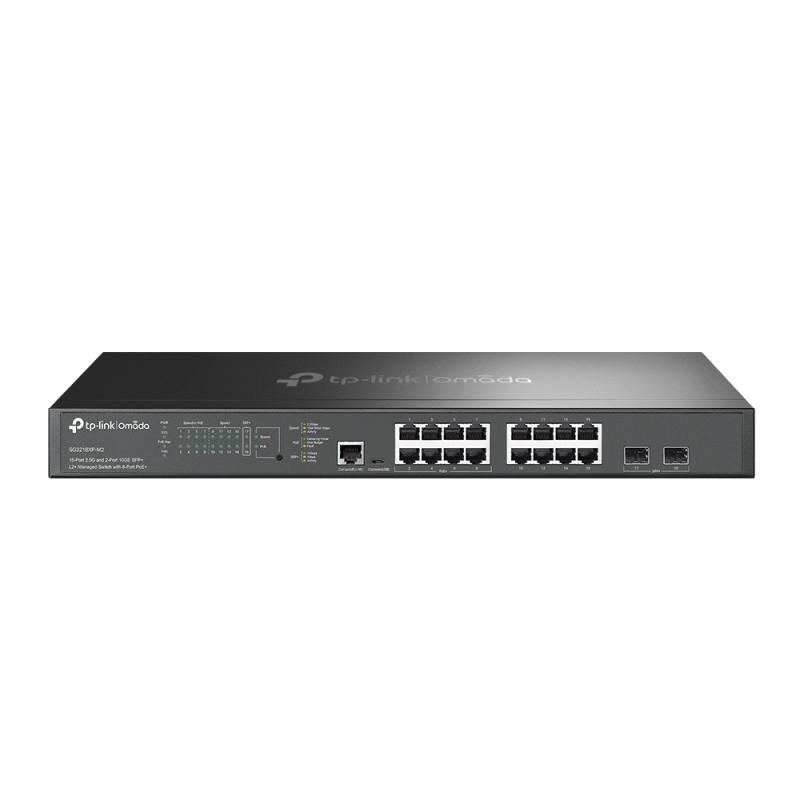

Omada 16-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8- Port PoE+ PORT: 8× 2.5G PoE+ Ports, 8× 2.5G Non-PoE Ports, 2× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3at/af, 240 W PoE Power, 1U 19-inch Rack-mountable Steel Case
2.952,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Omada 16-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8- Port PoE+ PORT: 8× 2.5G PoE+ Ports, 8× 2.5G Non-PoE Ports, 2× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3at/af, 240 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller,Static Routing, OAM, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6
Detalii
SKU
SG3218XP-M2
EAN
4897098689721
Categorii
Brand
LAN-Port-Type
FastEthernet
LED indicators
Yes
Password protection
Yes
Sustainability compliance
Yes
Operating relative humidity (H-H)
10 - 90%
Cables included
AC
Storage temperature (T-T)
-40 - 70 C
Package type
Box
Storage relative humidity (H-H)
5 - 90%
Quick start guide
Yes
Number of fans
2 fan(s)
AC input voltage
100 - 240 V
Jumbo frames support
Yes
MAC address table
16000 entries
Rack mounting
Yes
Form factor
1U
VLAN support
Yes
Flow control support
Yes
Cloud-managed
Yes
Switch type
Managed
Web-based management
Yes
10G support
Yes
Port mirroring
Yes
Power over Ethernet (PoE)
Yes
Link aggregation
Yes
Spanning tree protocol
Yes
Installed SFP+ modules quantity
0
SFP module slots quantity
2
Power supply included
Yes
Power source
AC
IGMP snooping
Yes
SSH/SSL support
Yes
Static route
Yes
Access Control List (ACL)
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Rate limiting
Yes
MAC address filtering
Yes
Switch layer
L2+
Multicast support
Yes
Ethernet LAN data rates
100,1000,2500 Mbit/s
Operating temperature (T-T)
0 - 50 C
Configuring Location Settings (CLI)
Yes
SFP+ module slots quantity
2
Depth
180 mm
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Basic switching RJ-45 Ethernet ports quantity
16
Jumbo frames
9000
ARP inspection
Yes
Multicast Listener Discovery (MLD) snooping
Y
Broadcast storm control
Yes
Head-of-line (HOL) blocking
Yes
IP routing
Yes
Console port
RJ-45/micro-USB
Static port security
Yes
Security algorithms
HTTPS, SSH, SSH-2, SSL/TLS
IP-MAC-Port binding
Yes
Authentication type
AAA, TACACS+
Queue scheduling algorithms
SP, WRR+SP, Weighted Round Robin (WRR)
Loop protection
Yes
BPDU filtering/protection
Yes
Certification
CE, FCC, RoHS
GARP VLAN Registration Protocol (GVRP)
Yes
Authentication
MAC-based authentication, Port-based authentication
Power connector
AC-in jack
Packet buffer memory
12 MB
Power over Ethernet (PoE) power per port
30 W
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Power over Ethernet plus (PoE+) ports quantity
8
Installed SFP modules quantity
0
Switching capacity
120 Gbit/s
Number of static routes
48
Forwarding rate
89.28 Mpps
Compliance certificates
Federal Communications Commission (FCC), RoHS
Management protocols
SNMP v1/v2c/v3, SNTP
Networking standards
IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
Virtual LAN features
MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of IP interfaces
32
Total Power over Ethernet (PoE) budget
240 W
Heat dissipation
1021.64 BTU/h
Power consumption (max)
299.4 W
