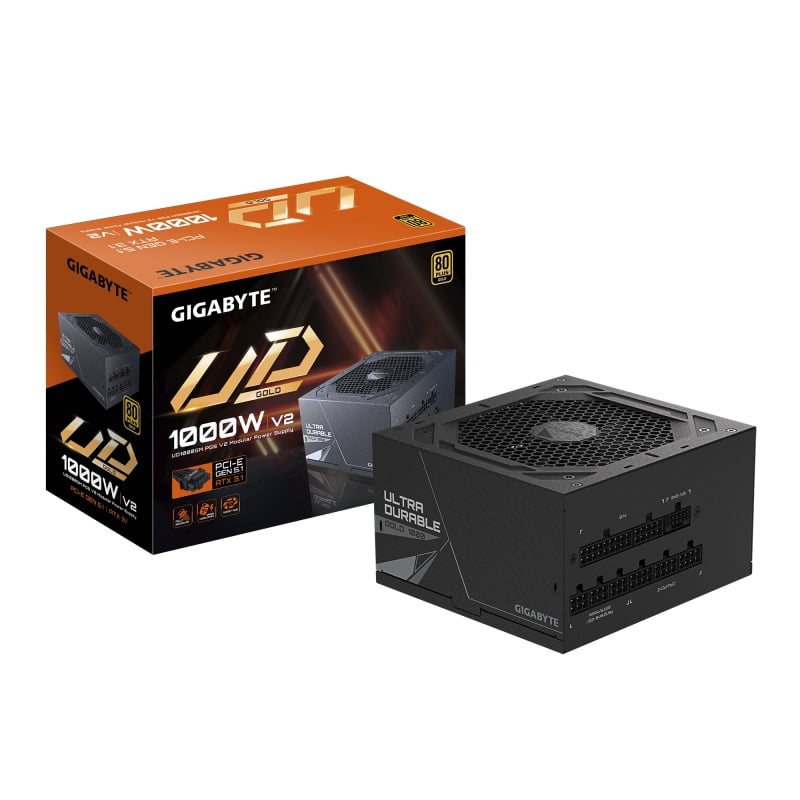

GIGABYTE UD1000GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin
529,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
GIGABYTE UD1000GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Detalii
SKU
GP-UD1000GM PG5 V2
EAN
4719331556112
Categorii
Brand
Product colour
Black
Package type
Box
Cooling type
Active
Number of fans
1 fan(s)
On/off switch
Yes
80 PLUS certification
80 PLUS Gold
Power supply unit (PSU) form factor
ATX
Purpose
PC
Mean time between failures (MTBF)
100000 h
PCI Express connector
Yes
Motherboard power cable length
61 cm
Cabling type
Fully-Modular
AC input voltage
100 - 240 V
Combined power (+5Vsb)
15 W
Max output current (+5Vsb)
3 A
PCI Express power connectors (16-pin)
1
Efficiency
90%
Height
86 mm
Width
150 mm
Total power
1000 W
Number of SATA power connectors
8
CPU power connector (4+4 pin)
Yes
Max output current (+3.3V)
25 A
Max output current (+5V)
25 A
Warranty period
10 year(s)
AC input frequency
50/60 Hz
Fan diameter
12 cm
Combined power (-12V)
3.6 W
Max output current (-12V)
0.3 A
Motherboard power connector
20+4 pin ATX
Weight
2.48 kg
Package width
618 mm
Floppy drive power connector
1
Power Factor Correction (PFC) type
Active
Depth
140 mm
ATX version
3.1
Peripheral (Molex) power connectors (4-pin)
3
PCI Express power connectors (6+2 pin)
4
CPU power cable length
60 cm
Bearing technology
HYB
Hold time
16 ms
Combined power (+3.3V)
125 W
Combined power (+5V)
125 W
Input current
15 - 6.5 A
Power factor
0.9
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
SATA power cable length
150,600 mm
Peripheral (Molex) power cable length
120,150,500 mm
PCI Express power cable length
70 cm
Number of EPS connectors
2
Combined power (+12V)
3.6 W
Max output current (+12V)
0.3 A
Package height
211 mm
Package depth
269 mm
Package weight
26.4 kg
